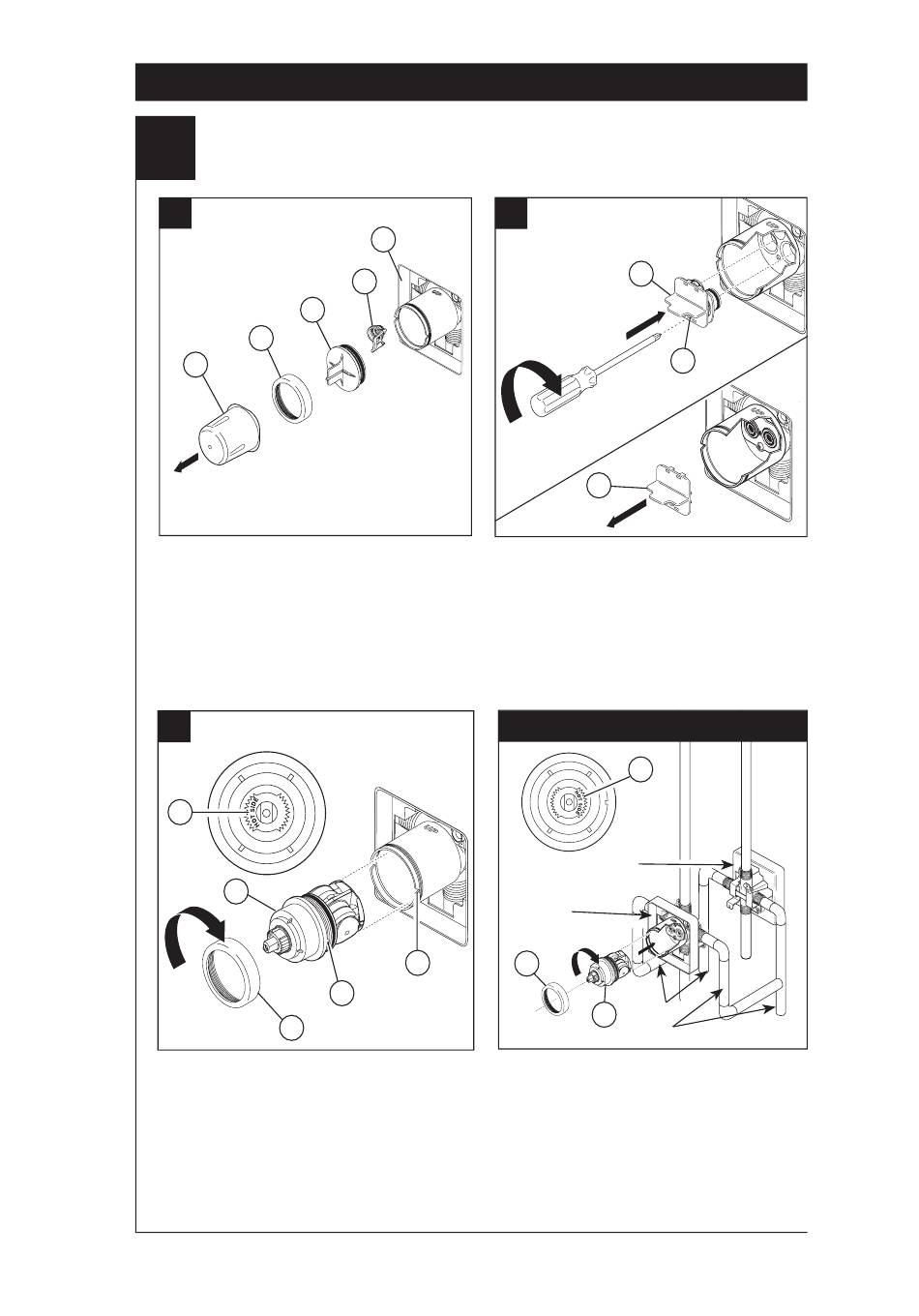

Cartridge Installation
1
A.
3
2
1
Turn off water supplies. Remove
cover (1), bonnet nut (2) and test cap (3)
from the body. If this is not a thin wall
mounting, the entire plasterguard (4)
may be removed. If screen (5) is in place,
remove before installing cartridge.
C.
2
1
5
Rotate cartridge (1) so the words
"HOT SIDE" (2) appear on the left. Insert
cartridge assembly into valve body.
Make sure the key (3) on the cartridge is
fully engaged with the slot in the brass
body (4). Slide bonnet nut (5) over the
cartridge and thread onto the body.
Hand tighten securely.
B.
4
5
Insert adapter assembly (1) into valve
body. Make sure the adapter assembly
is correctly positioned and is pressed all
the way down inside body. Secure adapter
with the screw (2) provided in the adapter
assembly. Remove the retainer (3) from
the adapter.
Back to back Installation
Normal Installation
(changes not required)
Reverse
Installation
4
3
For back to back or reverse installations
(hot on right and cold on left): Rotate
cartridge (1) so the words "HOT SIDE" (2)
appear on the right. Install the cartridge
making sure that the key is fully engaged
with the slot in the brass body (See step C).
Slide bonnet nut (3) over the cartridge and
thread onto the body. Hand tighten securely.
7
17 Series Installation
1
2
3
2
3
Cold
1
Hot
