Sommaire des Matières pour Delta VICTORIAN RP33791LHP

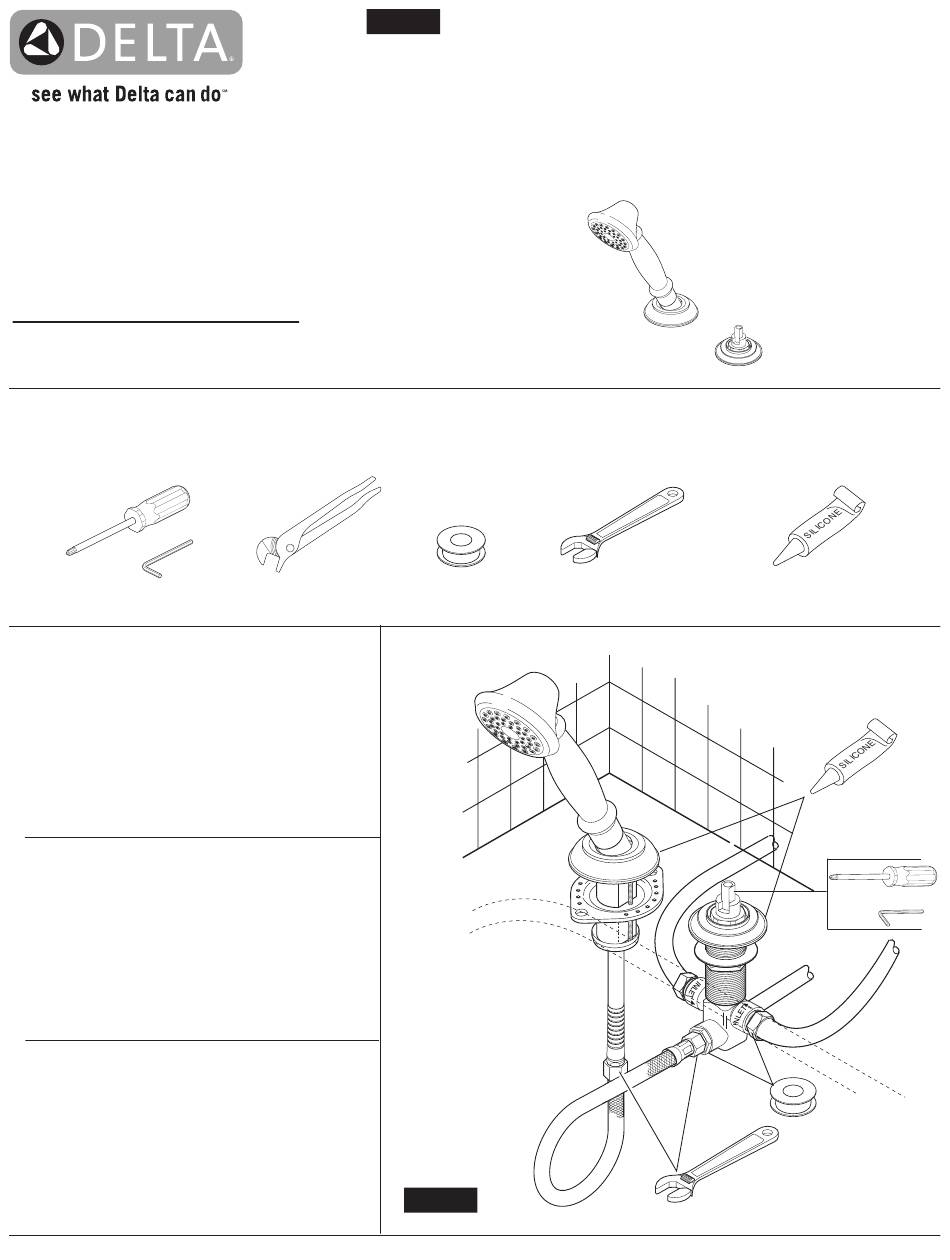

Page 1
• To READ ALL the instructions completely before beginning. • To READ ALL warnings, care, and maintenance information. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar. • LEER TODOS los avisos, cuidados, e información de mantenimiento.
Page 2
Delta ® Esta es la garantía exclusiva por escrito de Delta Faucet Company y la garantía no es transfer- ible. Delta Faucet Company no será responsable por cualquier daño a la llave de agua que resulte del mal uso, abuso, negligencia o mala instalación o mantenimiento o reparación incorrecta, incluy-...
Page 3

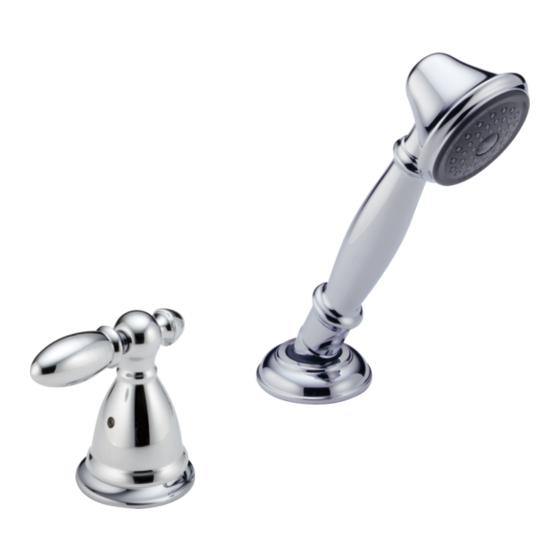

VICTORIAN ® Model/Modelo/Modéle RP33791LHP RP23094p Base w/Gasket Base y Empaque Embase et joint RP19652 Nuts & Washer Tuercas y Arandela Écrous et rondelle RP46680p RP40666 Hand Piece Hand Spray Support Assembly RP19654p PIeza de Mano Sleeve Soporte de la Regadera de Mano RP18632▲...
3. Descontecte la manija y reemplace el ensamble del desviador viejo (3) con uno nuevo. 4. Reinstale la manija el ensamble de extensión (2) y el desviador (3). Su regadera de mano de Delta incorpora un sistema de protección de ®...
Page 5
18" (45.7 cm) max. 1- 1/2" (35mm) 1- 1/2 po (35mm) Install spray support assembly (1) from below. Replace nest (2) on spray SHUT OFF WATER SUPPLIES. Drill two 1-1/2" diameter holes in finished suport assembly and rotate 90° to expose screws (3). surface, one for the transfer valve and one for the spray support assembly.
Page 6
1-5/8"—1-7/8" (41.3—47.6mm) Remove thin nut (1) from transfer valve (2). Install transfer valve from under- Install handle. Be sure to install the retention screw (1) into the stem prior side of mounting surface so that the handle stem (3) is 1-5/8" to 1-7/8" above to installing the handle.
Page 7
From tub valves, connect hot and cold water lines to labeled inlets (1) on Remove and discard the test cap and gasket (1) from braided metal hose transfer valve. Either inlet (1) may be used for hot and cold. Use plumber (2).
Page 8
Turn on water supplies. Pull hose (1) to its furthest extension, pointing it down Install base (1) to nest (2) and tighten. OPTION: Use silicone under the into the tub, turn the diverter handle to the hand shower position. Turn bath base if deck is uneven.
