Model/Modelo/Modèle
RP72767LHP
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
www.deltafaucet.com
All manuals and user guides at all-guides.com
80106
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
80106
1

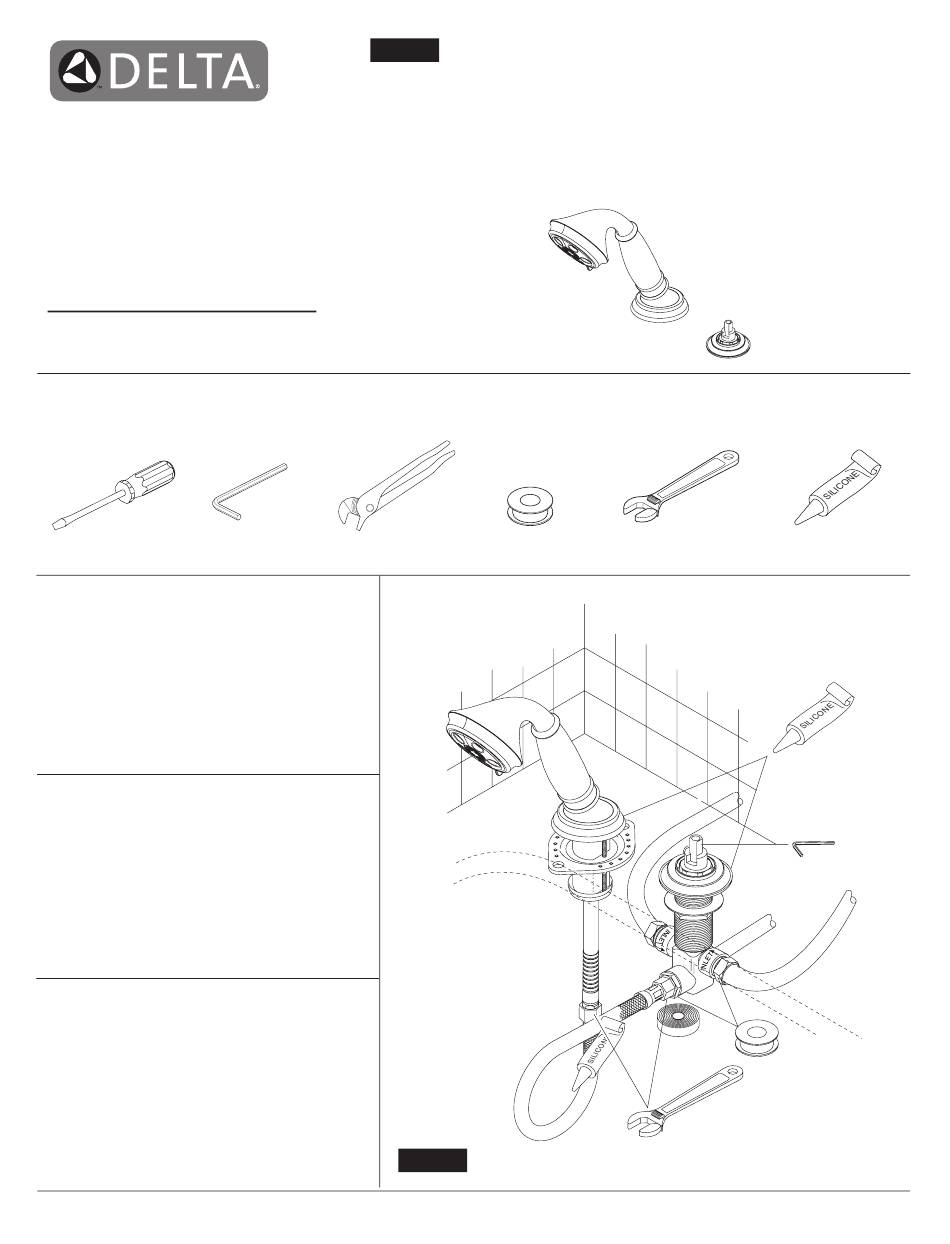

ROMAN TUB HAND HELD
SHOWER AND DIVERTER
DUCHA DE MANO PARA BAÑERAS
ROMANAS Y DESVIADOR
DOUCHE À MAIN ET DÉRIVATION
POUR BAIN ROMAIN
T E FLO N
8/19/14
Rev. A
