FinishControl 6500 TS
2. Push nozzle seal onto the needle so that the groove (slot)
points away from the spray attachment. (Fig. 18)
3. Place nozzle on the needle with recess downwards.
Attention: Position of needle must be congruent with
the nozzle aperture. (fig. 19)
4. Place air cap on nozzle (pay attention to recesses in the air
cap). (Fig. 20)
5. Screw on union nut. (Fig. 21)
6. Snap the adjusting ring into the union nut. (Fig. 22)
Make sure that the two recesses on the adjusting ring
are engaged in the air cap clamps and that the lever for
adjusting the spray jet width is located on the pin.
7. Place the container seal from below on the feed tube and
slide it over the collar, while turning the container seal
slightly.
8. Screw the feed tube with the container seal into the
body of the gun.
Warning: Insert feed tube soundly, as otherwise, the mixer
can block or be damaged when in use.
9. Put the mixer back into the container using the removal-tool
and click into place.
In order to mount the gun more easily apply
lubricating grease (enclosed) liberally to the O-ring
at the spray attachment and to the O-ring of the
plug connection of the air hose (Fig. 23).
14

MAIntenAnce

14.1

AIr fIlter

Attention! never operate the device with
the air filter soiled or missing, as dirt could
be sucked up and affect the operation of
the device.
Always check the air filter before starting
work.
1. Unplug the power plug.
2. Open the cover of the air filter compartment (Fig.
3. Clean (blow out) or replace the air filter (Fig. 24,1)
depending on the degree of soiling.
14.2

AIr relIef vAlve

If paint has entered the ventilation hose, proceed
as follows:
1. Pull the ventilating hose (Fig. 25, 1) at the top from the
gun body. Screw off the valve cover (2). Remove the
diaphragm (3). Clean all the parts carefully.
cAutIon! the ventilation hose and
diaphragm are only solvent-resistant to a
limited extent. do not immerse in solvent,
only wipe.
2. Place the diaphragm in the valve cover with the pin facing
forward (Also see the marking on the gun body).
3. Turn the body of the gun upside down and screw on the
valve cover from underneath.
4. Place the ventilating hose on the valve cover and on the
nipple at the gun body.
Warning
If the supply cord of this appliance is damaged, it must only
be replaced by a repair shop appointed by the manufacturer,
because special purpose tools are required.

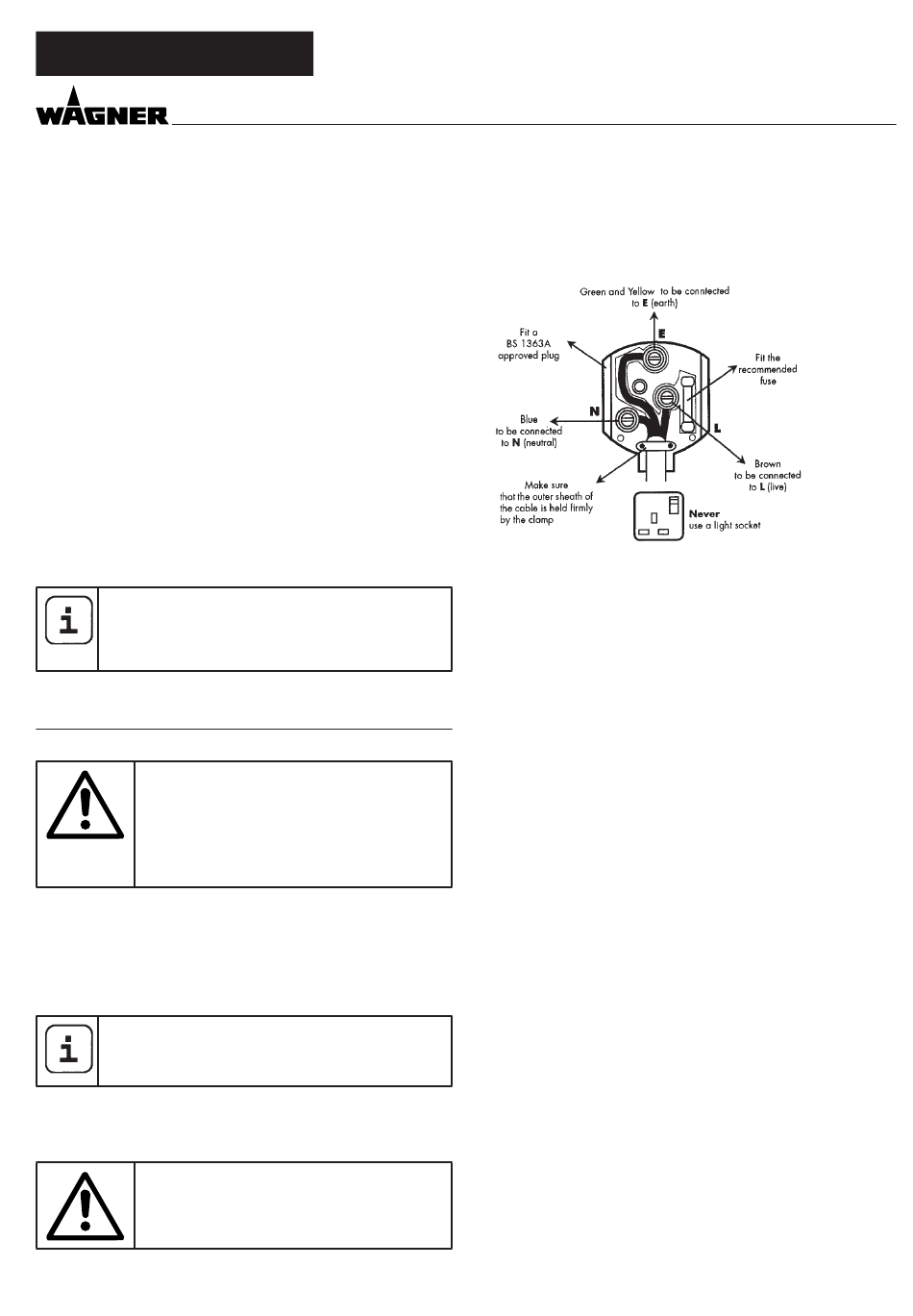

The wires in this mains lead are coloured in accordance with
the following code:
blue = neutral
As the colours of the wires in the mains lead of this appliance
may not correspond with the coloured markings identifiying
the terminals in your plug, proceed as follows:
•
The wire which is coloured green and yellow must be
connected to the terminal in the plug which is marked with
the letter E or by the earth symbol or coloured green or
green and yellow.
•
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured
24).
black.
•
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or coloured
brown.
•
Should the moulded plug have to be replaced, never re-use
the defective plug or attempt to plug it into a different 13 A
socket. This could result in an electric shock.
•
Should it be necessary to exchange the fuse in the plug
only use fuses approved by ASTA in accordance with BS
1362. Only 13 Amp fuses may be used.
•
To ensure that the fuse and fuse carrier are correctly
mounted please observe the provided markings or colour
coding in the plug.
•
After changing the fuse, always make sure that the fuse
carrier is correctly inserted. With out the fuse carrier, it is not
permissible to use the plug.
•
The correct fuses and fuse carriers are available from your
local electrical supplies stockist.
green/yellow = earth
brown = live
