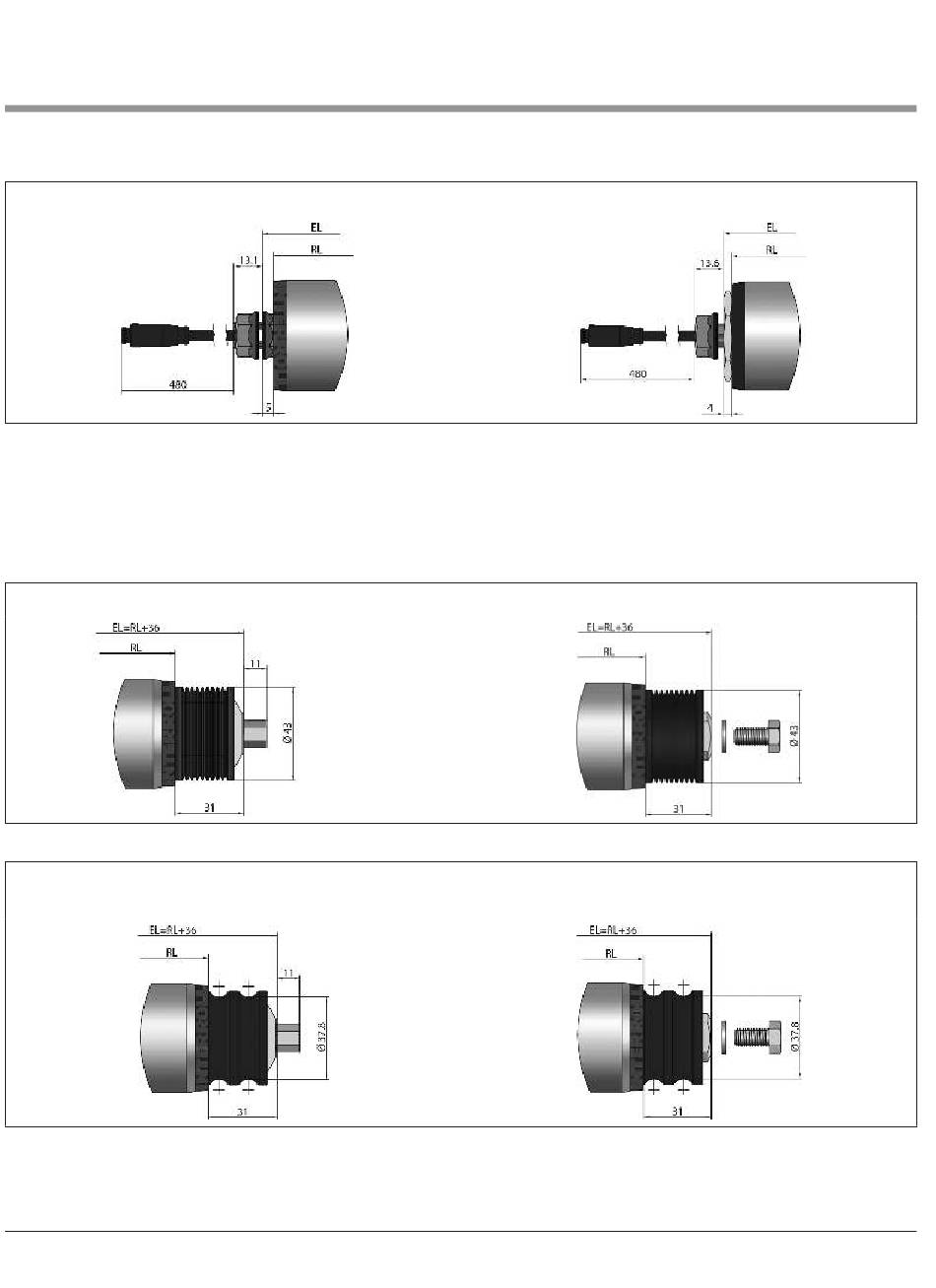

Dimensions of the motor shaft

Version with degree of protection IP54
RL = Reference length/order length
EL = Installation length, clearance between the side profiles
3.13

Dimensions of the bearing housings on the non-cable side

PolyVee drive head with 11 mm hexagonal spring shaft
Round belt drive head with 11 mm hexagonal spring
36 of 116
shaft
Version with degree of protection IP66
PolyVee drive head with M8 internal thread attachment
Round belt drive head with M8 internal thread
attachment
