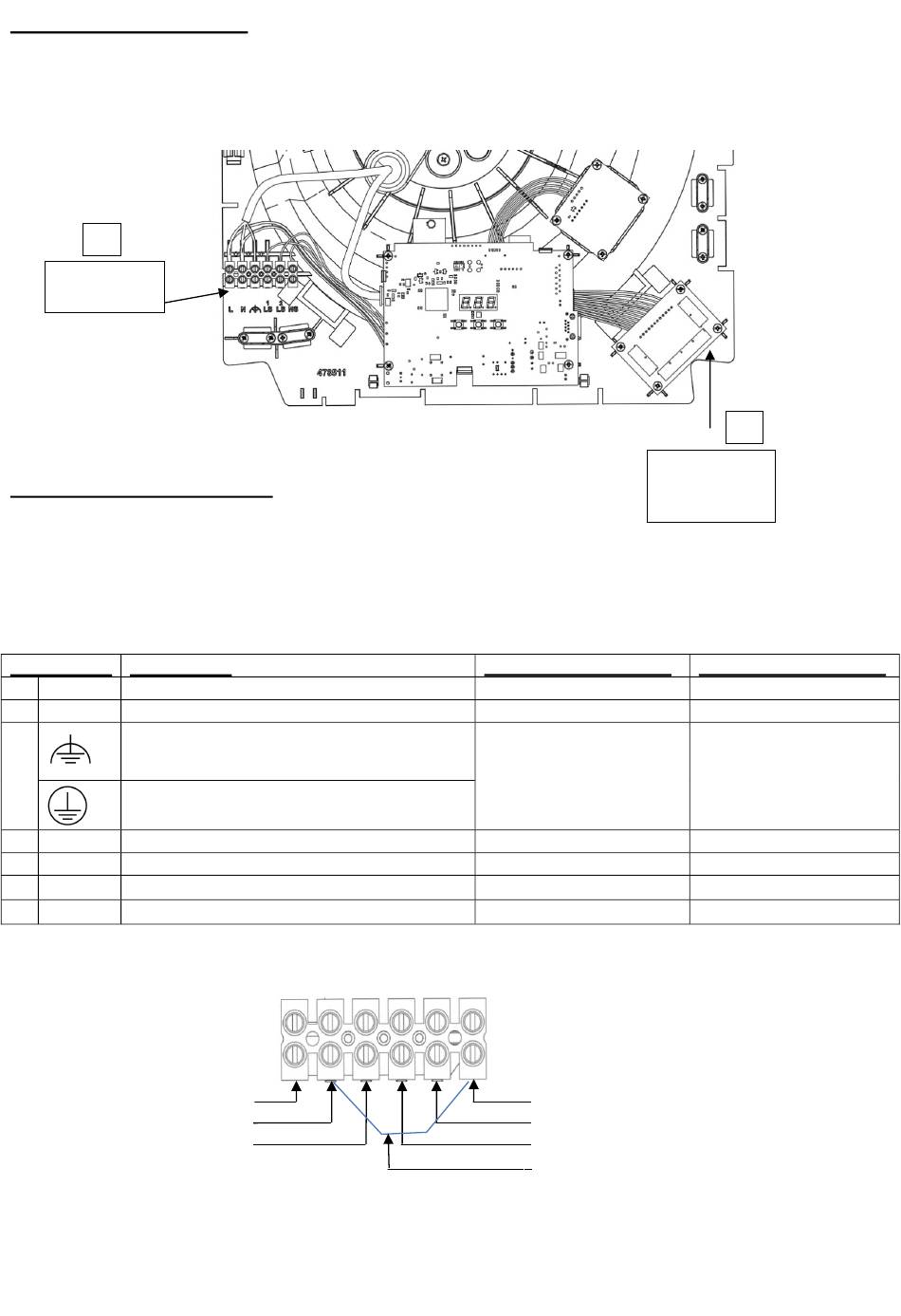

CONNECTION DIAGRAM
Figure 22
A
Main power
connections
A: Main power connections
The LS1, LS2 and NS terminals are
electrically isolated.
Note: Neutral link between 2 & 6 should be removed if different RCD protection circuits are used for mains
power a & Live Switch connections.
Note: Ensure all live & neutral are isolated before servicing.
Connection Description
1
L
Live (220-240Vac)
2
N
Neutral
Functional Earth
3
Protective Earth
4
LS1
Live Switched 1, (220-240Vac), isolated
5
LS2
Live Switched 2 (220-240Vac), isolated
6
NS
Neutral Switched, isolated
7
N + NS
Link Wire (Blue)
Figure 33
1
2
3
Perilex Advance BPC
L3 (Brown)
N (Blue)
E (Green/Yellow)
L2 (Black)
L1 (Grey)
Link to N
6
5
4
7
10
B
Low voltage
connections,
if fitted
Perilex Advance BPD
L1 (Brown)
N (Blue)
E (Green/Yellow)
L2 (Grey)
L3 (Black)
Link to N
