SUPPORTING LONG WORKPIECES
The free end of a long workpiece should be supported at the same
height as the machine table. The operator should consider using a
remote workpiece support in addition to the table extension bars if
thought necessary.
INSTALLING OR REMOVING A BLADE
WARNING: Only carry out this operation with the machine
disconnected from the mains supply.
WARNING: Only use genuine Evolution blades which are
designed for this machine.
Ensure that the maximum speed of the blade is higher than the
speed of the motor.
NOTE: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the blade.
• Ensure the Cutting Head is in its upper position.
• Remove the lower guard operating arm retaining clip.
(Fig. 38) Release the guard operating arm from its pivot.
• Press the lower blade guard locking trigger (A) and rotate
the lower blade guard (B) up and into the upper blade guard.
(Fig. 39)
• Press the black arbor lock button to lock the arbor. (Fig. 40)
• Using the supplied Hex Key, release the arbor screw and
remove the washer and blade flange and the blade from the
arbor. (Fig. 41)
NOTE: The arbor screw has a LH thread. Turn clockwise to loosen.
Turn counterclockwise to tighten.
• Install the new blade. Make sure the rotation arrow on the blade
matches the clockwise rotation arrow on the upper guard.

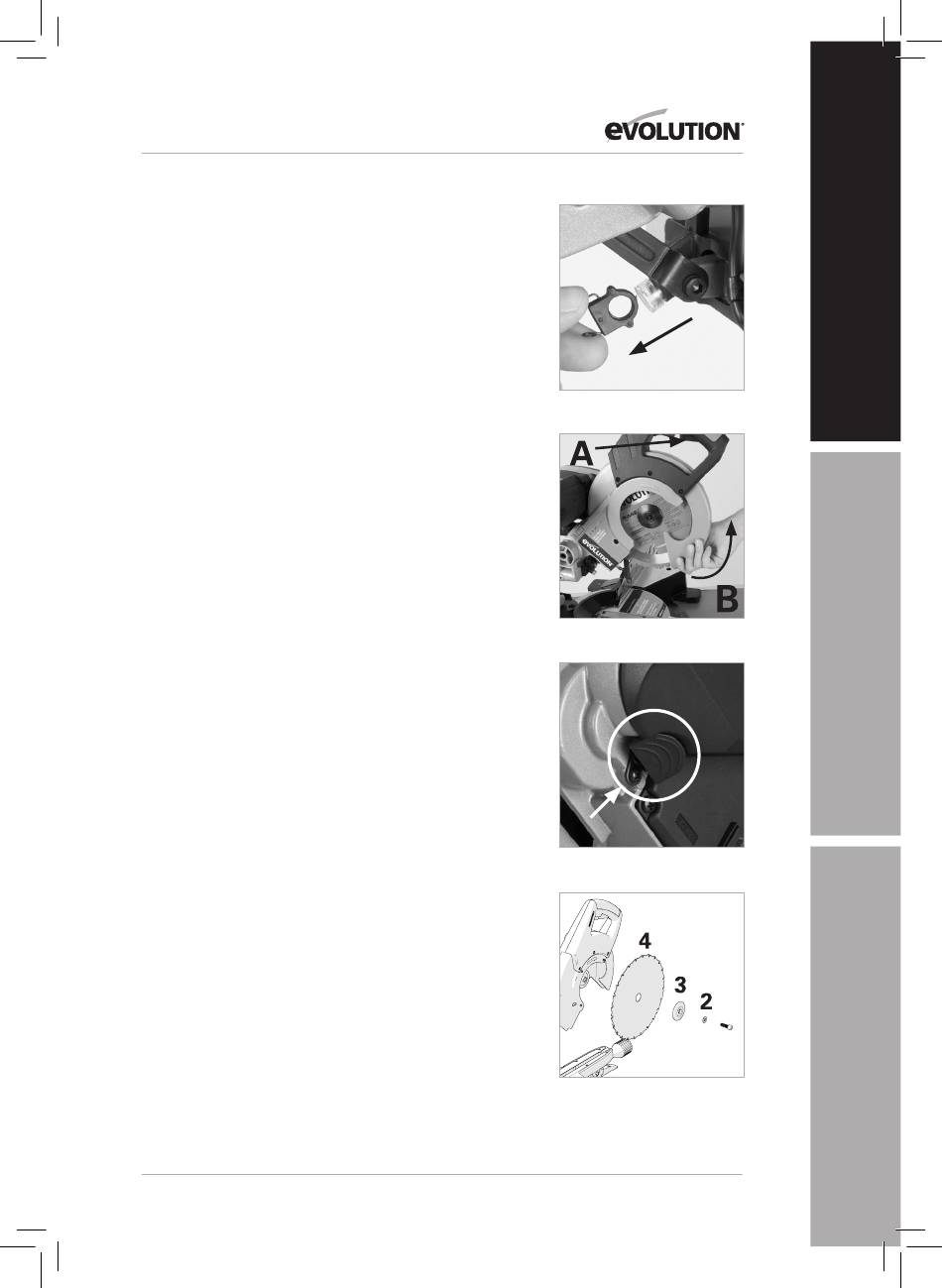

Fig. 38
Fig. 39
Fig. 40
Fig. 41 View of
(1) Arbor screw, (2) Washer,
(3) Blade flange, (4) Blade
31
