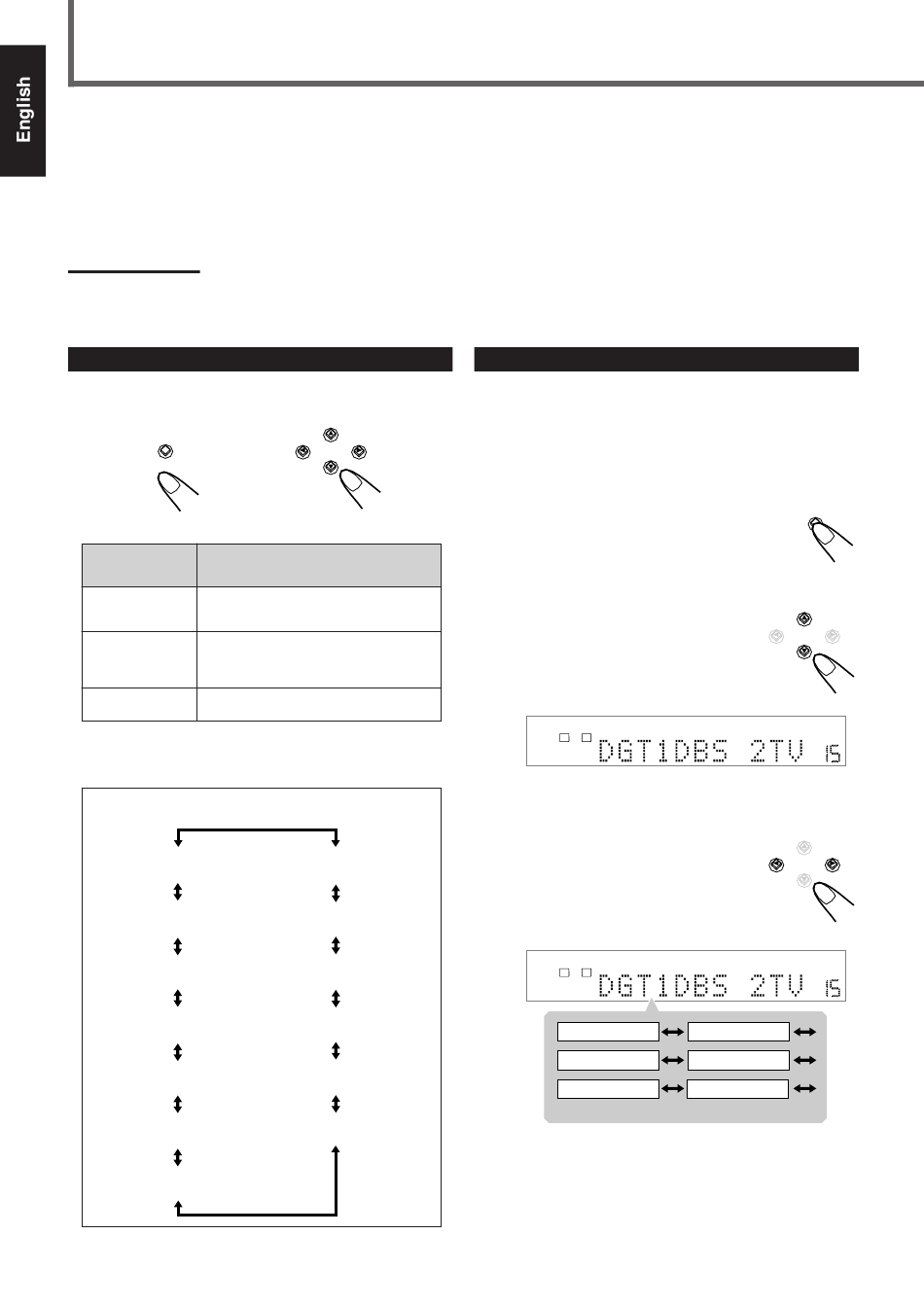

Basic Settings

Some of the following settings are required after connecting and positioning your speakers while others will make operations easier.
You can set the items by using the SETTING button and CONTROL 5/∞/2/3 buttons on the front panel.
Setting items:
• Speaker information for front, center, rear speakers, and subwoofer*
• Crossover frequency*
• Digital input (DIGITAL IN) terminals
Note:
* You can also set these items using the Choice menu (see pages 49 to 54).
Operation Buttons
To do the basic settings for this unit, use the buttons on the front
panel.
SETTING
On the front panel ONLY
Button To do
Display the setting indications on the
SETTING
display*.
Select an item on the display.
CONTROL 5/∞
Each time you press the button, the
indication changes as illustrated below.
CONTROL 3/2
Adjust the selected item.
• When no operation is done for about 5 seconds, the indications on
the display will disappear.
* Pressing SETTING repeatedly also changes the indication.
Configuration of the indications on the display
SUBWFR
(Subwoofer)
FRNT SP
(Front speaker)
CNTR SP
(Center speaker)
REAR SP
(Rear speaker)
FRNT D
(Front distance)
CNTR D
(Center distance)
REAR D
(Rear distance)
19
• Low frequency effect attenuator*
• Auto surround
CONTROL
VOUT
(Video out)
AUTO SR
(Auto surround)
DGT
(Digital)
D.COMP
(Dynamic range compression)
LFE
(Low frequency effect)
CROSS
(Crossover)
• Speaker distance for front, center, and rear speakers*
• Dynamic range compression*
• Video output mode
Operating Procedure
Ex. : When setting the digital input (DIGITAL IN) terminals.
Before you start, remember...
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
1
Press SETTING.
The CONTROL buttons now work for basic settings.
The setting item selected previously appears on the
display.
2
Press CONTROL ∞ (or 5)
repeatedly until "DGT (Digital)"
(with the current setting)
on the display.
DIGITAL AUTO
SPK.
L R
* "1DBS 2TV" is the initial setting. If you have already changed
the setting, another combination will be shown.
3
Press CONTROL 3 (or 2) to select
the appropriate digital terminal
setting.
• Each time you press the button, the indication
changes as follows:
DIGITAL AUTO
SPK.
L R
DGT1DBS 2TV
DGT1TV 2DBS
DGT1CDR2DBS
(back to the beginning)
SETTING
CONTROL
appears
*
VOLUME
CONTROL
VOLUME
DGT1DBS2CDR
DGT1TV 2CDR
DGT1CDR 2TV
