LERBAKKEN 10, 8410 RØNDE DENMARK.
For safe installation of 5350 the following must be observed. The module shall only be installed by
qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
.
IECEx Certificate
Marking
Standards
Hazardous area
Zone 0, 1, 2, 20, 21, 22, M1
Sensor input
terminals 3,4,5,6
U
5.7 VDC
o
I
8.4 mA
o
P
12 mW
o
L
200 mH
o
C
40 µF
o
Revision date:
2015-10-27
22

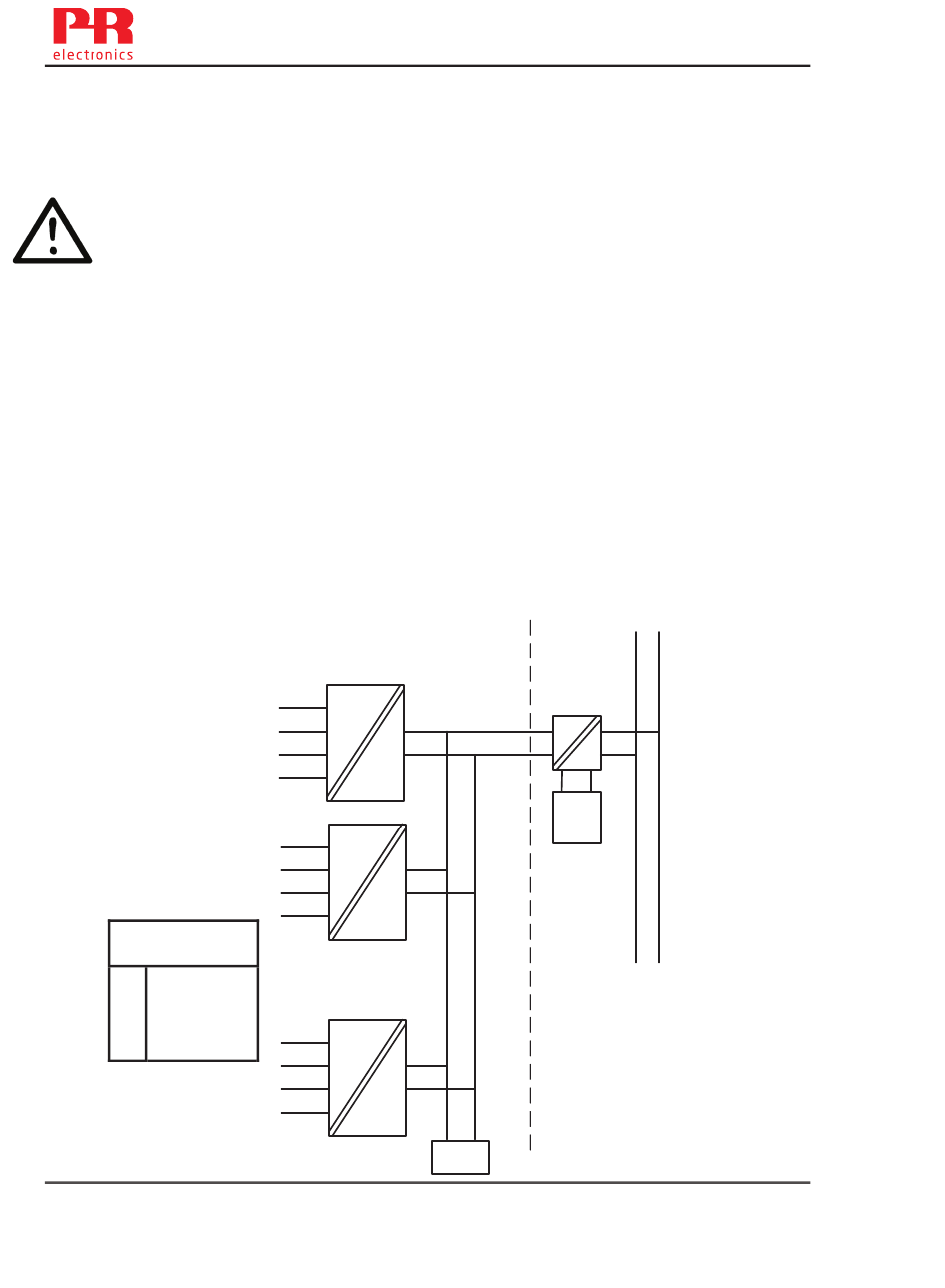

IECEx Installation drawing
BVS 12.0035X
Ex ia IIC T6..T4 Ga
Ex ib [ia Ga] IIC T6..T4 Gb
Ex ia IIIC T135°C Da
Ex ia I Ma
Ex nA [ic] IIC T6..T4 Gc
Ex ic IIC T6..T4 Gc
IEC60079-11:2011, IEC60079-0: 2011, IEC60079-15: 2010
6
1
5
2
4
3
6
1
5
2
4
3
Max 10
modules
6
1
5
2
4
3
Version /Revision
V4/R0
WWW.PRELECTRONICS.COM
Segment
Coupler
Power
Supply
Termination
5350QI01
V2R0
5350V114-FR
5350QE01
Non Hazardous Area
Page:
12/15
