2.3 Description of the machine

The drawer assembly jig has been designed for the InnoTech
drawer system.
All system related sizes can be set between the largest and
smallest dimension! The dimensions specified are key dimensions
which can be set using fixed stops.
Dimensions of the drawer assembly jig:
Length: 2,460 mm
Width: 1,110 mm
Height: 1,780 mm

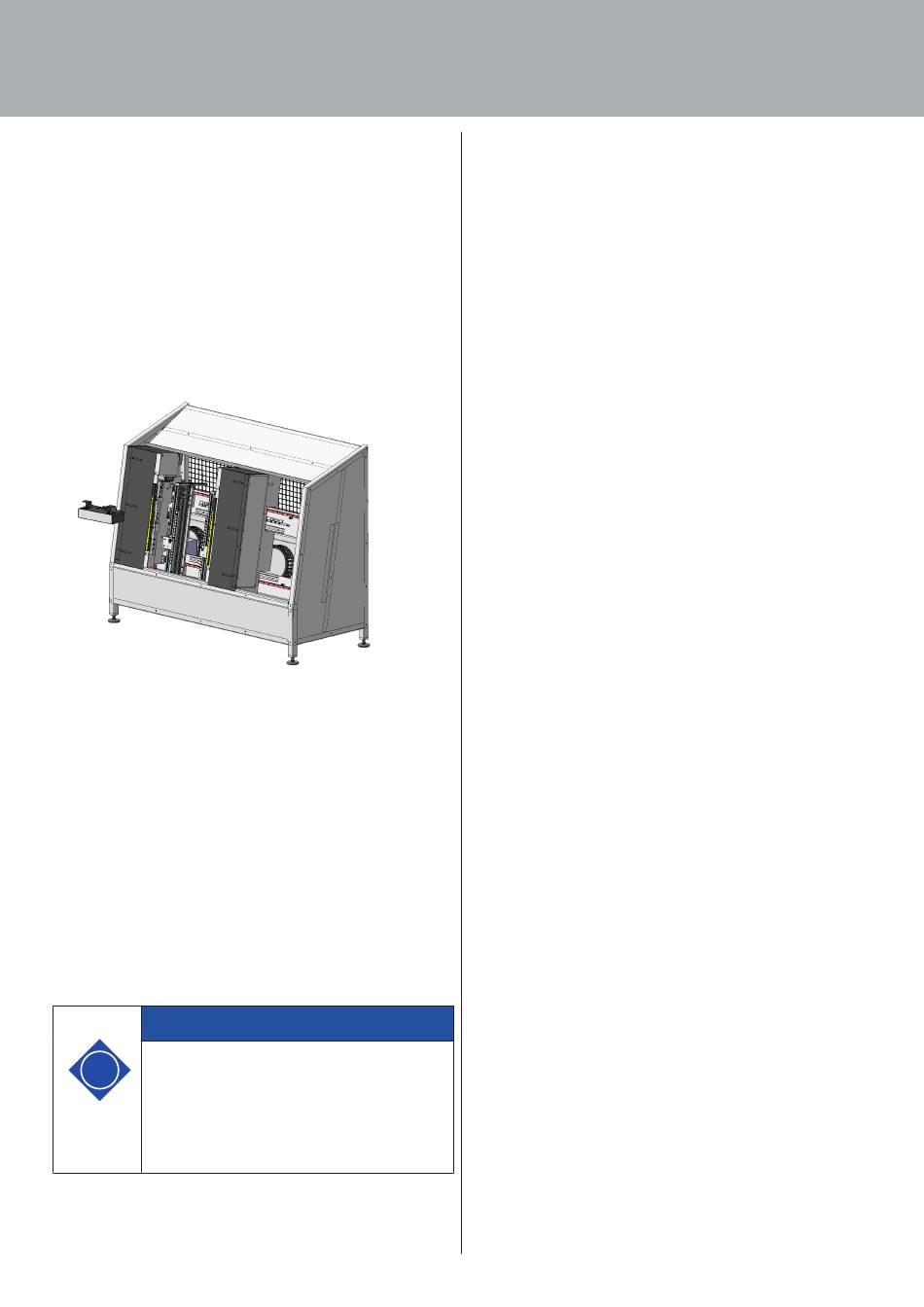

Fig. 2: InnoFit 400 drawer assembly jig
Space required for the machine
The space required by the drawer assembly jig is largely governed
by the dimensions of the machine frame.
Machine life
The machine's life will depend on whether or not it is used for its
intended purpose, on adherence to regular servicing intervals and
on the regular replacement of expendable parts.
Note
The two hand pushbutton elements must be
i
checked and, if necessary,
replaced after approx. 8 years
(based on 255 working days of 16 hour each,
cycle 60s = 4080/ha).
6

2.4 Liability

Defects must only be rectified by competent personnel.
Our liability is restricted to damage caused while using the
system in the intended manner. We shall not be liable for
safety defects not yet identifiable on the basis of the current
state of the art.
Failure to
• observe safety advice for operating personnel
• observe advice on particular hazards
• observe the ban on unauthorised modifications and changes
• use replacement and expendable parts or auxiliary materials
other than those approved by the manufacturer will rule out
any liability on our part for the consequences
Manipulation:
Manipulating limit sensors will inevitably result in the loss of
system operation. In particular, moving the limit sensors at the
positioning cylinders is critical which is why they are provided
with a manipulation guard.
