6. Pump groups DN25 / DN32

6.2 Pump groups V-MK DN 25 and 32

Width ca. 175 mm

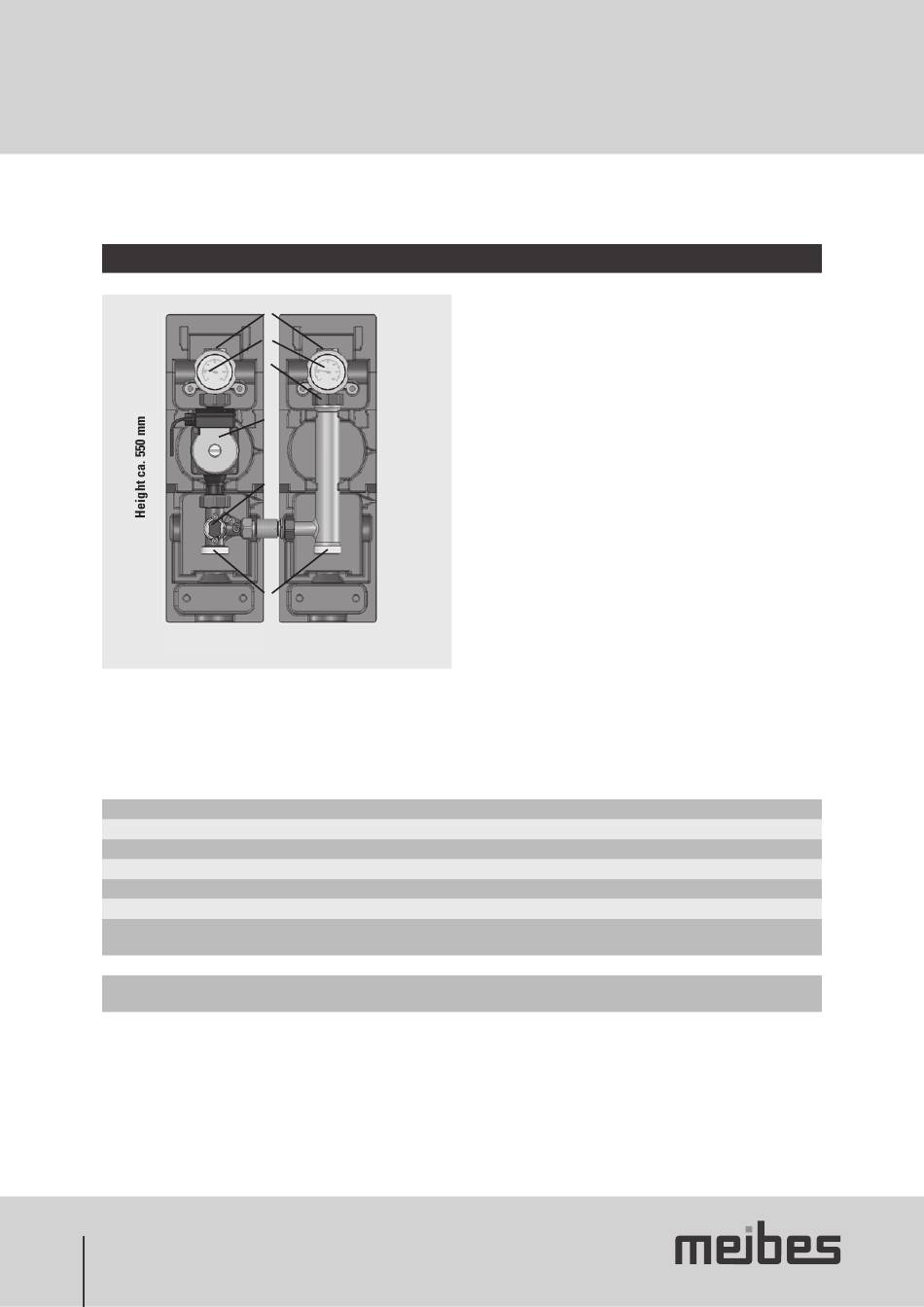

Distributor pump group V-MK (Mixer circuit for the distributor set up)
Complete with or without a circulation pump (EL 180 mm) with a 2 m connection cable, two 2-way ball valves (on the side of the return line
with a manually adjustable non-return valve); Two contact thermometers integrated into the ball cock handle (display range 0-120 °C); a 3-way
T-mixer incl. an infi nitely variable settable; EPS insulation; Axis-Centre distance from 175 mm to 250 mm (larger than 250 mm available for a
supplement); bottom outlet 1 1/2" AG fl at seal, top outlet female thread corresponding to the pump dimension;
Embodiment
DN 25 (1")
without pump
with Grundfos pump Alpha2L25-60
with Grundfos pump Alpha2 25-60
with Wilo pump Yonos PICO 25/1-6
with Wilo pump Stratos Para 25/1-7
with additional option: control signal 0-10V
Transistion screw connection
37
1
2
3
4
5
6
Art. no.
66833 EA
66833.10
66833.30
66833.10 WI
66833.31 WI
66305.50
(See page 9)
1
Ball cock 1" or 1/4" female thread with a
thermometer socket
2 Thermometer
3 Non-return valve with a manual set-up and airlock
4
HE circulating pump with connection cable (2m length)
5 3-way T-mixer DN25 with a fl exible connection
6 Outlets 1 1/2" male thread ((fl at seal) bottom)
Embodiment
DN 32 (1 1/4")
without pump
with Grundfos pump Alpha2L32-60
with Grundfos pump Alpha2 32-60
with Wilo pump Star Yonos PICO 30/1-6
with Wilo pump Stratos Para 30/1-7
with additional option: control signal 0-10V
Control motor incl. mounting set
Art. no.
66834 EA
66834.10
66834.30
66834.10 WI
66834.31 WI
66341
(See chapter 6.6)
