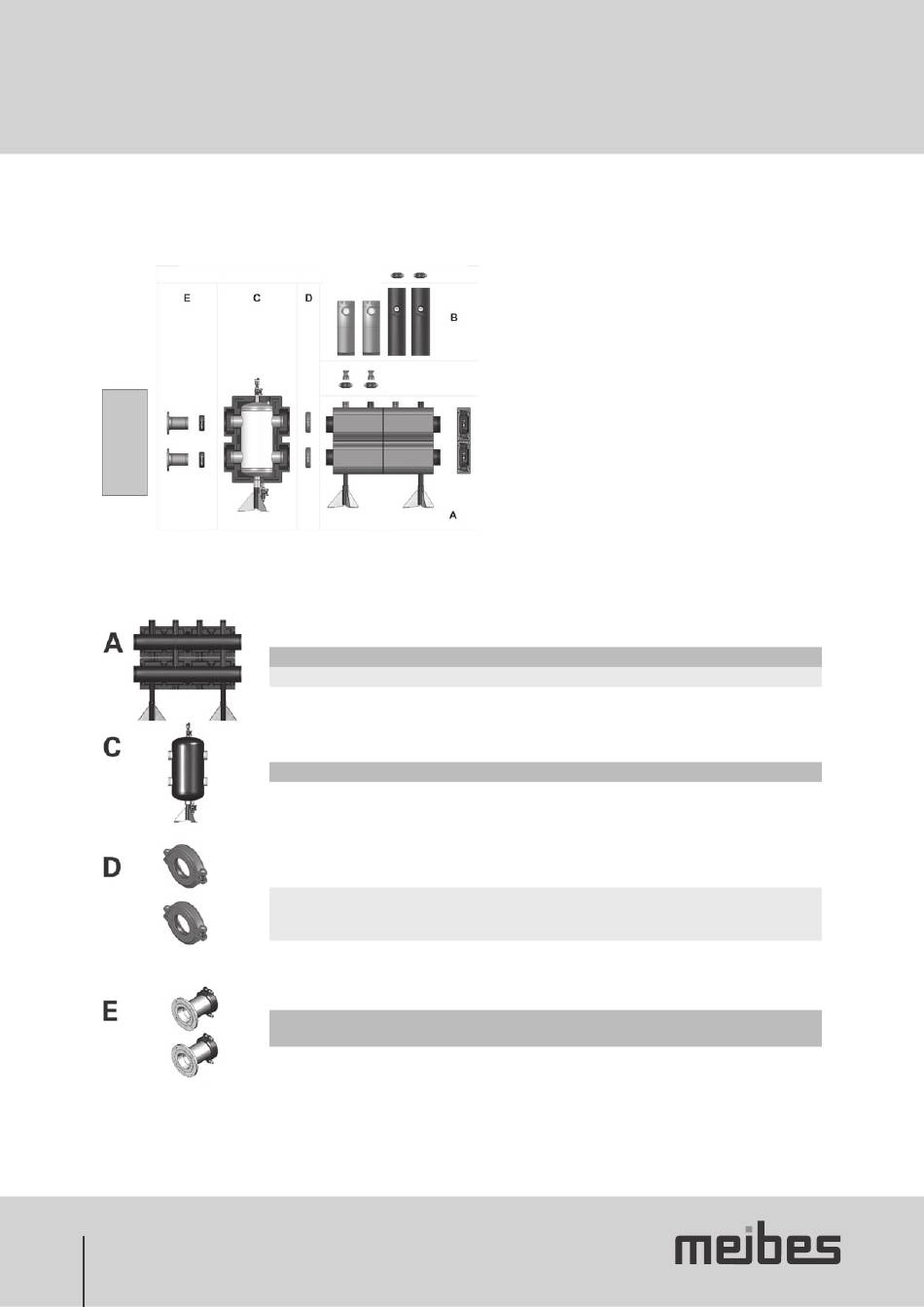

1. Example and construction of the model

4
5 6
Calculated total flow:
Maximum number of heating circuit outlets:
Calculated from the total from item B
29
1
2
3
7
8
28 m / h
3
2 circuits
Description Volume flow
2-circuit module 30 m /h
3
incl. 2 couplings and end caps
Boiler guard 700 kW 30 m /h
3
2x reduction connector
including insulation
DN100
Victaulic flange PN 6
without insulation
1 When using the pump groups from DN 40, select the
desired intersection to the heating circuit (see point 7.5).
Size corresponding to the DN of the FL-group
2 Selected pumps groups
3 Reduction set when using V-groups 66305.50
4 Heat generator
5 Intersection 66259.695
6 Boiler guard 66374.100
7 Intersection 66258.831
8 Distributor 66457.2
Pipe ø Art. no.
168,3 66457.2
114,3 66374.100
168,3 x 114,3 66258.831
114,3 x DN 100
66259.695
flange
