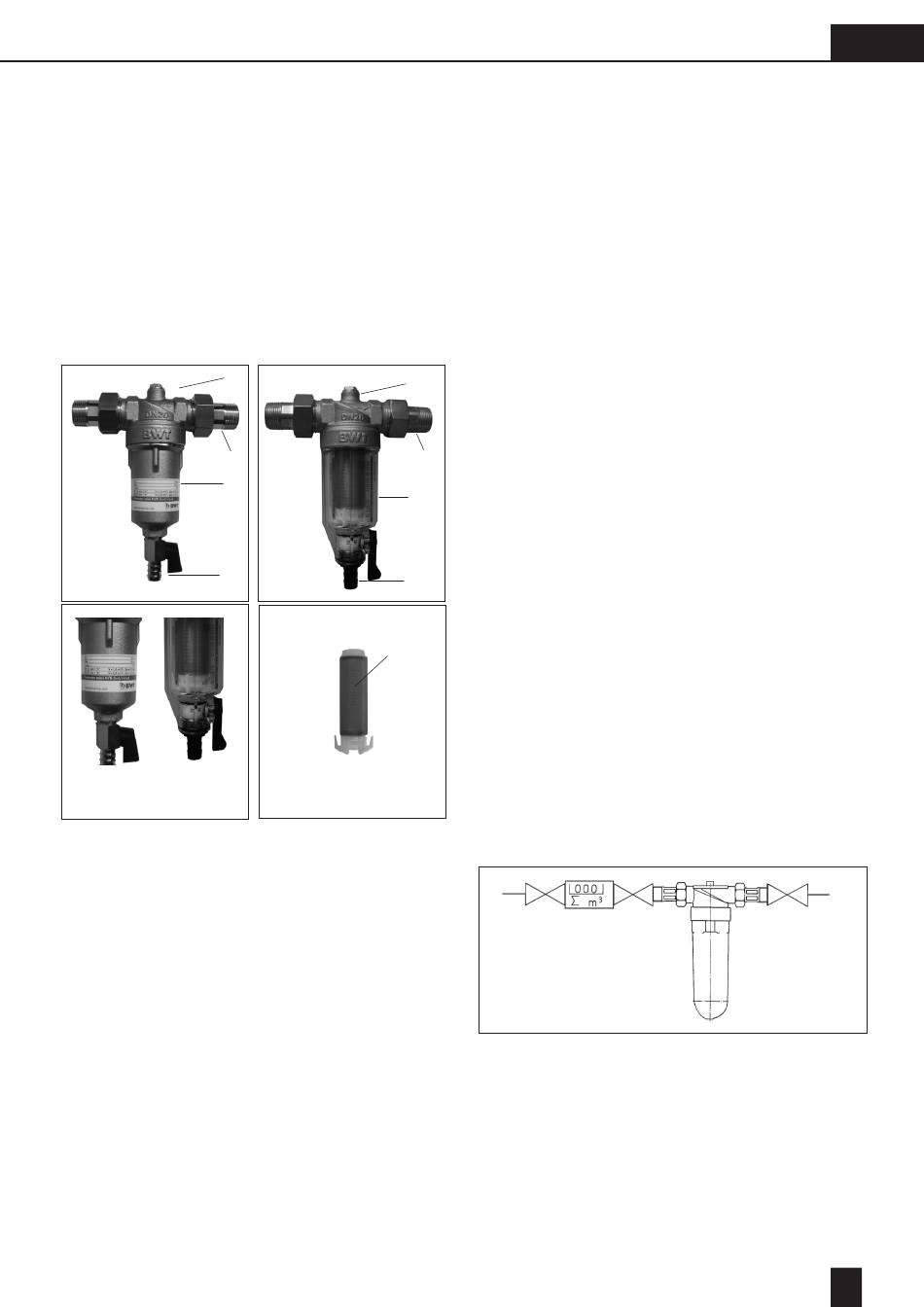

1. Scope of Supply
Protector mini rinsefilter H/R 25 bar/70°C and C/R
16 bar/30° consists of:
1.
top section in brass incl. manometer-connecting
¼" and inside- as well outside-connection.
2.
bottom part H/R in brass and C/R in plastics
3.
filterelement in stainless steel
4.
2 connecting-fittings
5.
rinsevalve
Filter complete with filterelement, seal and drai-
ningscrew.
Attachments: replacementfilterelement
1
4
2
5
filter H/R
bottom part bottom part
brass
plastics
H/R
C/R
2. Use
This filter is intended for the filtration of drinking
and service water. It protects the water pipes and
the connected water system parts from malfunctions
and corrosion damage due to impurities such as rust
particles, chippings, sand, hemp, etc.
In applications with water containing coarse impuri-
ties, a coarse dirt separator must be used.
The filter is not suitable for oils, greases, solvents,
soaps and other lubricating media or for the separa-
tion of water-soluble substances.
1
4
2
5
filter C/R
3
filterelement
3. Function
Untreated water flows through the untreated water
inlet into the filter and there from the outside through
the filter element to the clean water outlet. Impurities
> 100 μm are trapped on the outside of the filter
cloth. clear water gets into the plumbingsysteme.
If heavy soiling on the filter element causes lower
waterpressure, but not later than 6 months, the filter
element must be changed respectively cleaned.
4. Installation conditions
Observe all applicable installation regulations,
general guidelines and technical specifications.
Install the filter in the cold water pipes upstream of
the objects to be protected. Always provide stop
valves.
Caution:
The installation site must be protected
against frost and must guarantee the protection of
the filter from solvent vapors, fuel oil, lees, chemicals
of all types, UV irradiation, and heat sources over
65°C.
The filters should be according to the nominal
connection width in the same dimension fitted in the
pipework. Install the filter in the direction of flow in
the vertical or horizontal cold water pipe.
Caution: Keep plastic parts free of oil, grease,
solvents and acid or alkaline cleaning agents. Avoid
extreme pressure blows (closure-beat by downstream
magnet valve e.g.).
5. Installation
See installation drawing.
Install the filter and the stop valves before and after
the filter in flow direction in the water pipe (see flow
direction arrows an top section).
GB
5
