Image Naming Rules; Recording - Optika Italy INSPECTION SYSTEMS Serie Manuel D'utilisation

e)

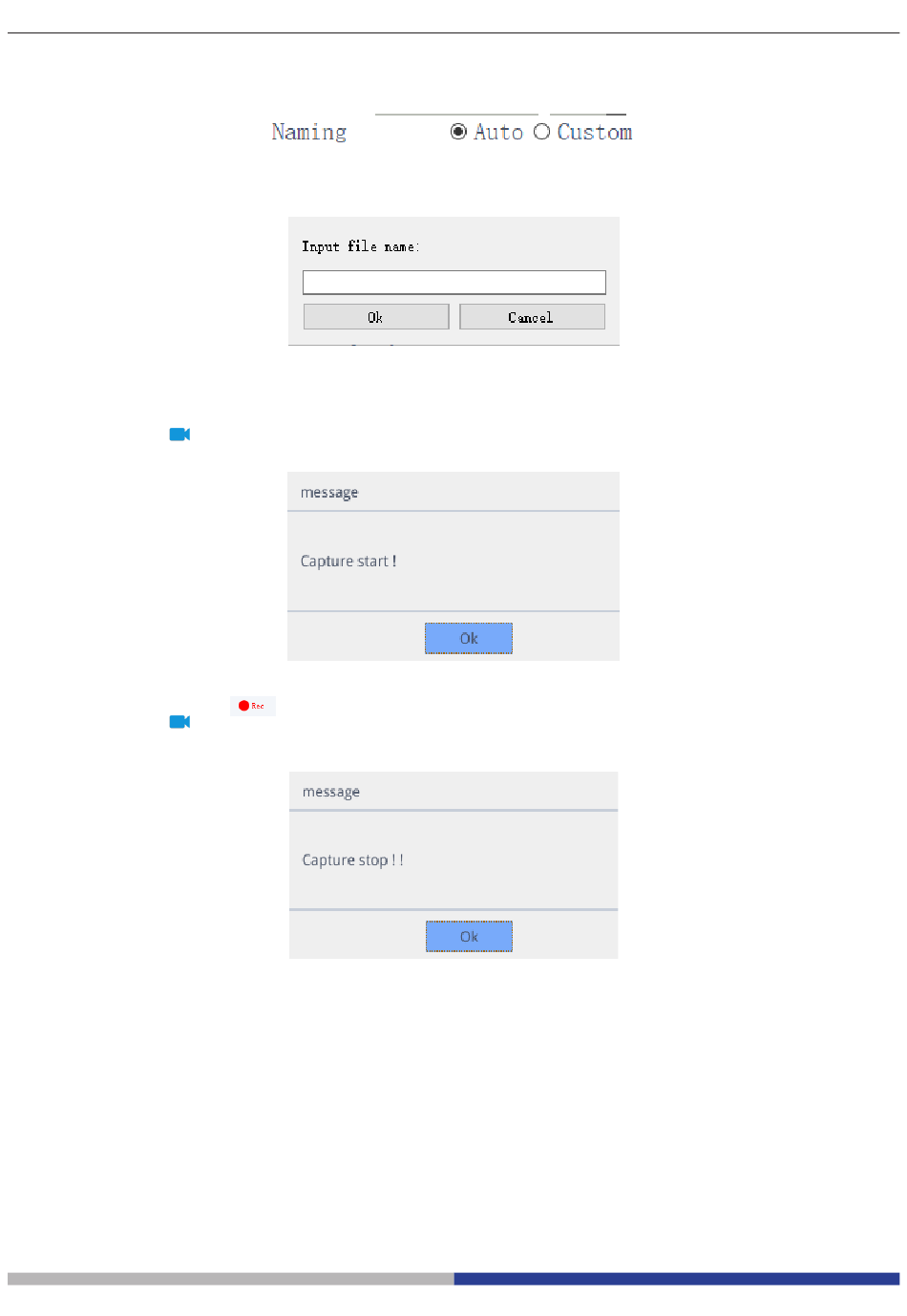

Image Naming Rules

1. Select "Auto" to name the image according to the time.
2. Select "Custom" to enter a name for saving.
10.1.3

Recording

1. Click on "Record"
2. The dialog box "Capture Start!" appears.
3. Click "OK" to start recording.
4. During recording, the icon
5. Click on "Record"
6. The dialog box "Capture Stop!" appears.
7. Click "OK" to stop recording.
Note: The recorded videos are named according to the date, and are automatically saved in the flash drive with the
format of .H264. The maximum length of a single recording is about 2 hours and the size is about 4G. If it exceeds
2 hours, it will automatically stop recording.
icon.
in the lower right corner of the screen flashes.
icon again.
Page 20
