10.1.1

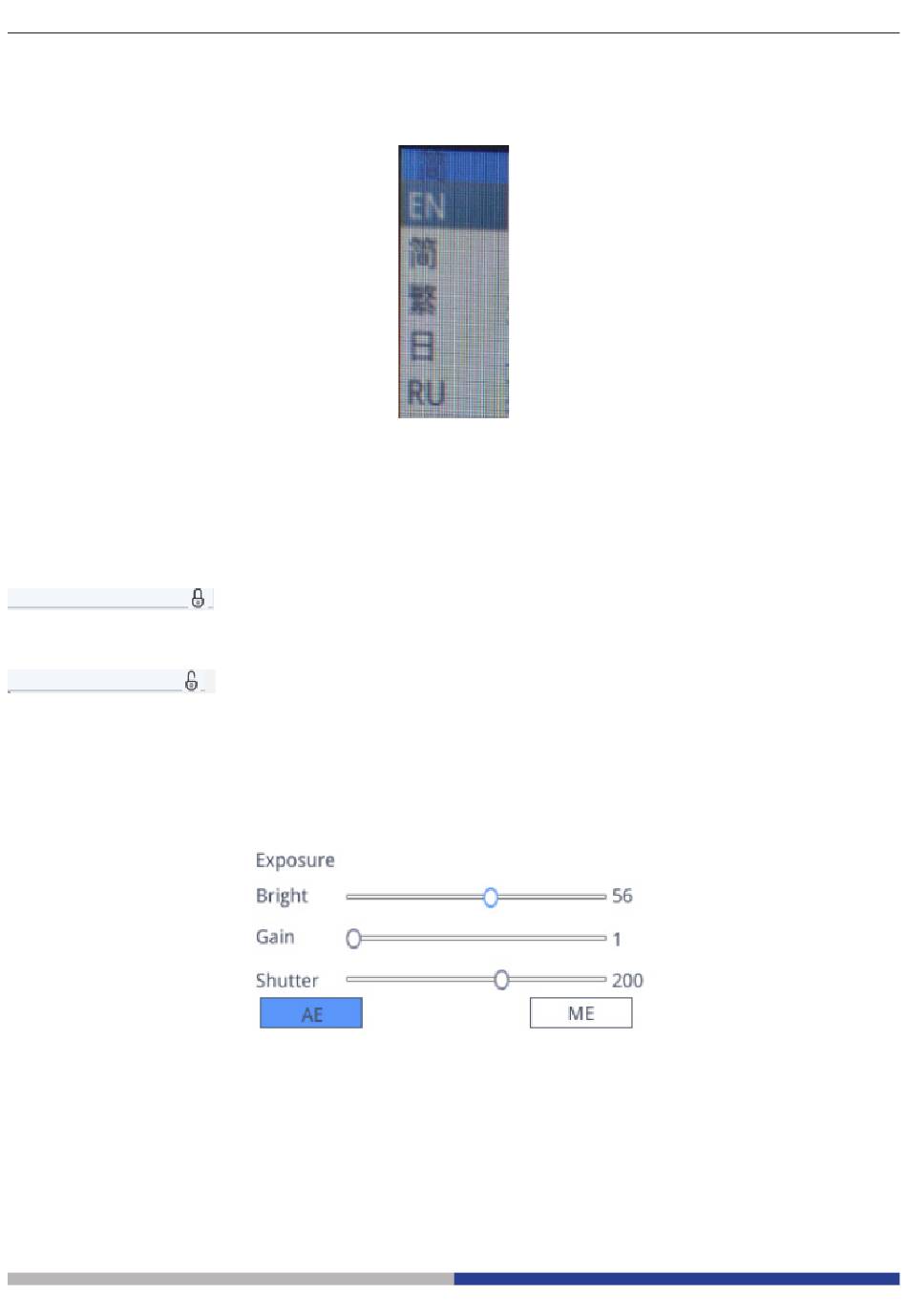

Detailed Control Interface

a)

Language Selection

Click the upper left corner of the menu to select the language.
Simplified Chinese, English, Traditional Chinese, Japanese and Russian are available.
b)

Control Panel Lock

Click the lock icon in the upper right corner of the menu to switch the menu display status.
When "Locked", always show menu.
When "Unlocked", the menu will be hidden/shown when the mouse is moved to the top left corner of the monitor.
c)

Exposure

Exposure setting can be Auto or Manual.
When "AE" is selected, user can drag the "Bright" slider to adjust the brightness.
When "ME" is selected, the "Gain" slider can be moved to adjust the gain. Move the "Shutter" slider bar to adjust the shutter.
The default value is AE (Auto Exposure).
Page 16
