d)

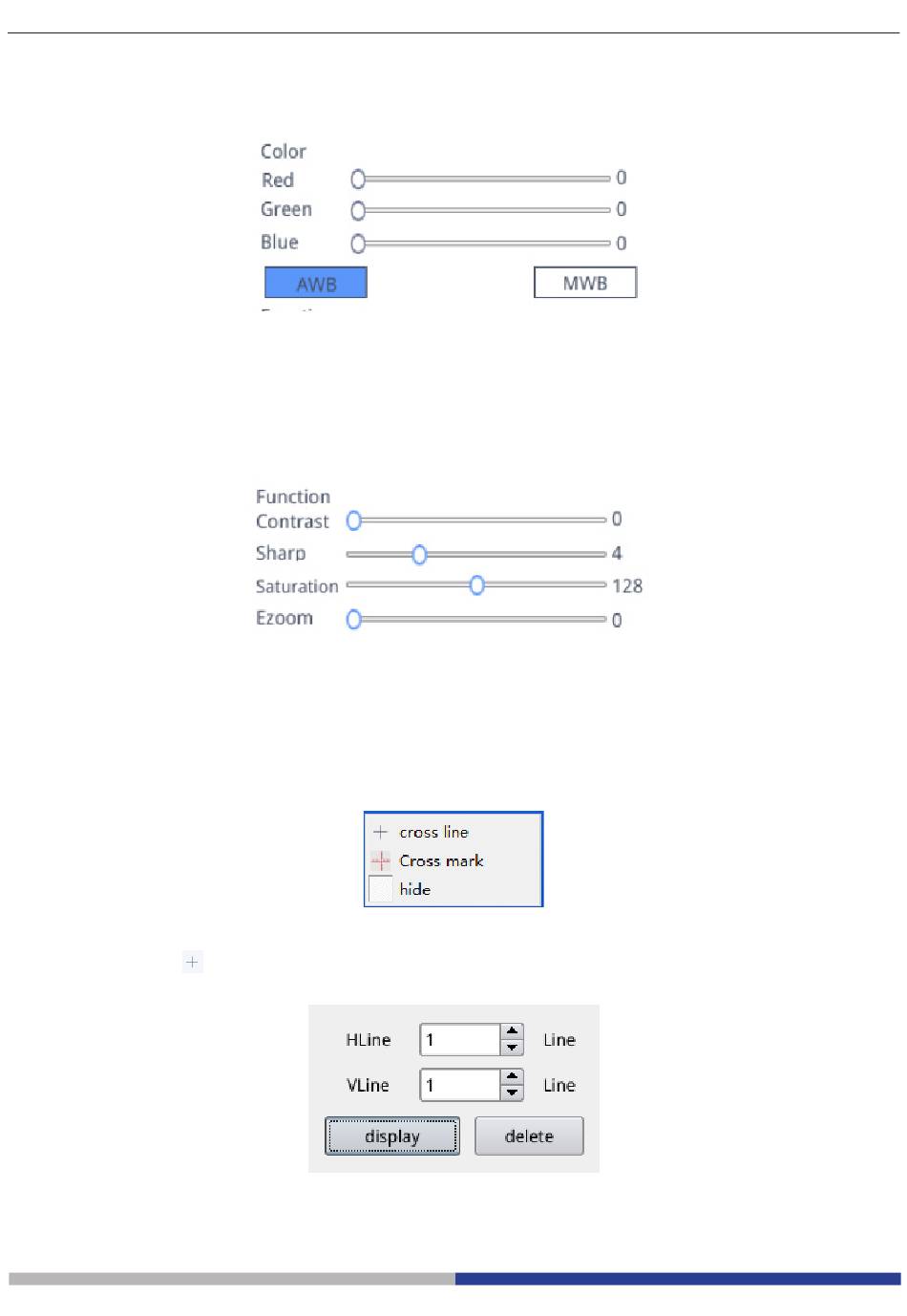

White Balance

White Balance setting can be Auto or Manual.
AWB: automatic white balance can be achieved under different color temperatures.
MWB: user can move "Red / Green / Blue" sliders to adjust the "Red / Green / Blue" color value.
e)

Function

Function setting can be Contrast / Sharp / Saturation / Ezoom.
Contrast: adjustable value 0-15. Default value 0.
Sharp: adjustable value 0-15. Default value 4.
Saturation: adjustable value 0-254. Default value 128.
Ezoom: adjustable value 1-6. Default value 1.0.
f)

Crosshair Tool

Cross Line
1. Click Crosshair tool
2. Select "Cross line" to set the number of horizontal and vertical lines.
3. After the setting is complete, select "Display" to show the set crosshair in the image display area, or select "Delete" to
not show crosshair.
.
Page 17
