94
C

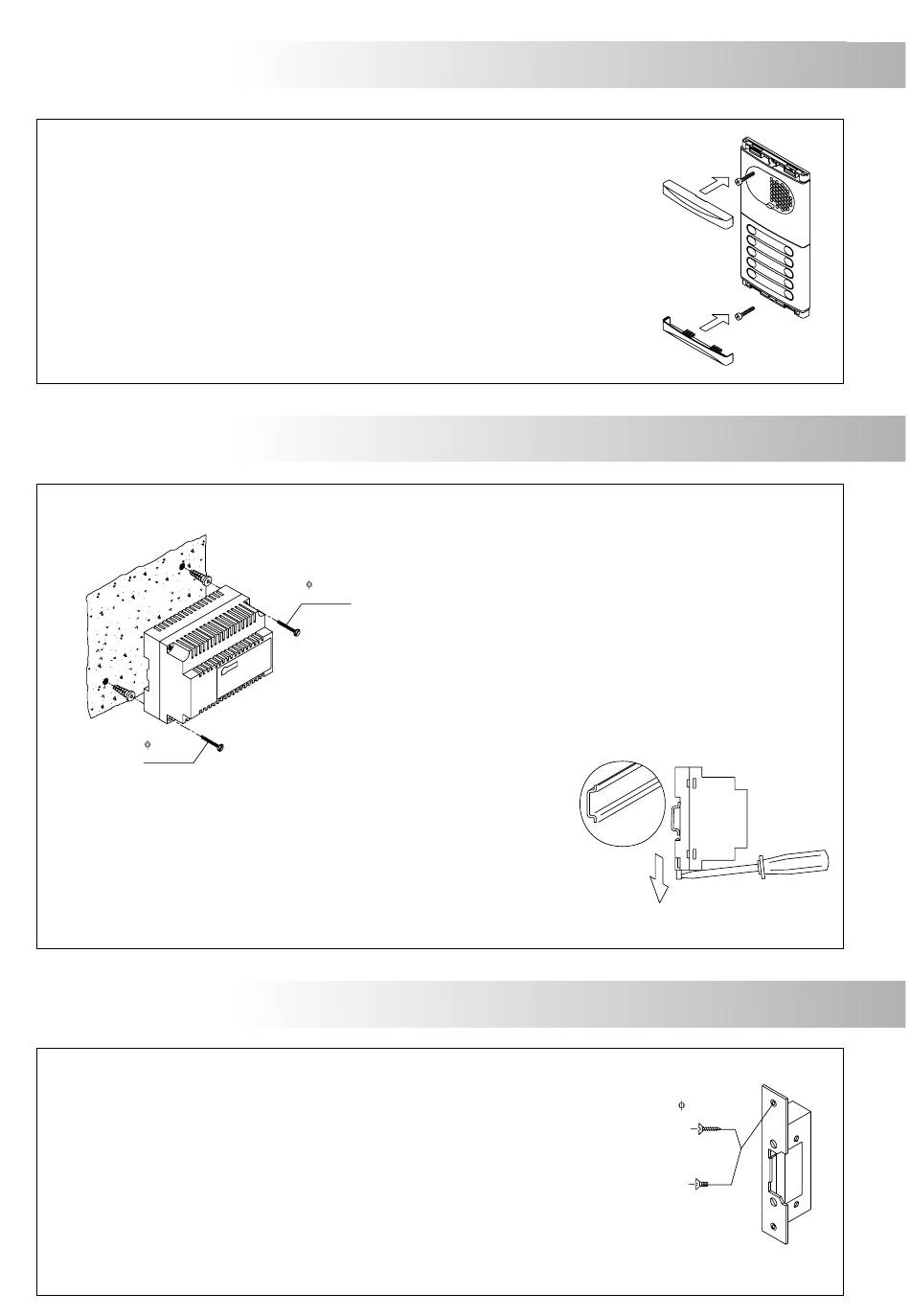

lose the door panel
F ix the door panel to the embedding box using the supplied
screws and washers
F inish the door panel assembly by pressing the closing
heads .
If it were necessary to open the door panel once closed, use
a plain screwdriver to remove the closing heads
D
etail of the FA-V2PLUS power supply installation
3,5 x 45
DIN-7971
The power supply can be installed on a DIN 46277 guide
simply pressing it To disassemble the power supply from
the DIN guide, use a plain screwdriver to lever the flange as
shown on the picture
The FA-V2PLUS power supply uses
Replace the protection cover once the input terminals have been wired
L
ock release installation
If the lock release will be installed in a metal door, use a Ø3,5mm.
drill and tap the hole
In case of wood door, use a Ø3mm. drill
IMPORTANT:
The lock release must be 12V d.c or a.c (see pages 109 to 118 ).
With a.c lock release, place the varistor provided on the lock release terminals.
DOOR PANEL INSTALLATION
.
.

POWER SUPPLY INSTALLATION

Install the power supply in a dry and protected place
3,5 x 45
DIN-7971
To avoid damage, the power supply must be firmly fixed.
The current regulation forces you to protect the power
To install the power supply directly on the wall, drill two holes
of Ø6mm. and insert the wallplugs Fix the
with the specified screws
.
.
6 units over DIN guide

LOCK RELEASE INSTALLATION

.
.
.
.
.
without risk of drip or water projections.
supply with a thermo-magnetic circuit breaker.
.
DIN 46277
.
. power supply
.
3,5 x 25
DIN-7972
M 4 x 8
DIN-963
