Welding process
ModulArc
(Arc Module)
Trigger behaviour
Tack welding mode
Settings
Energie

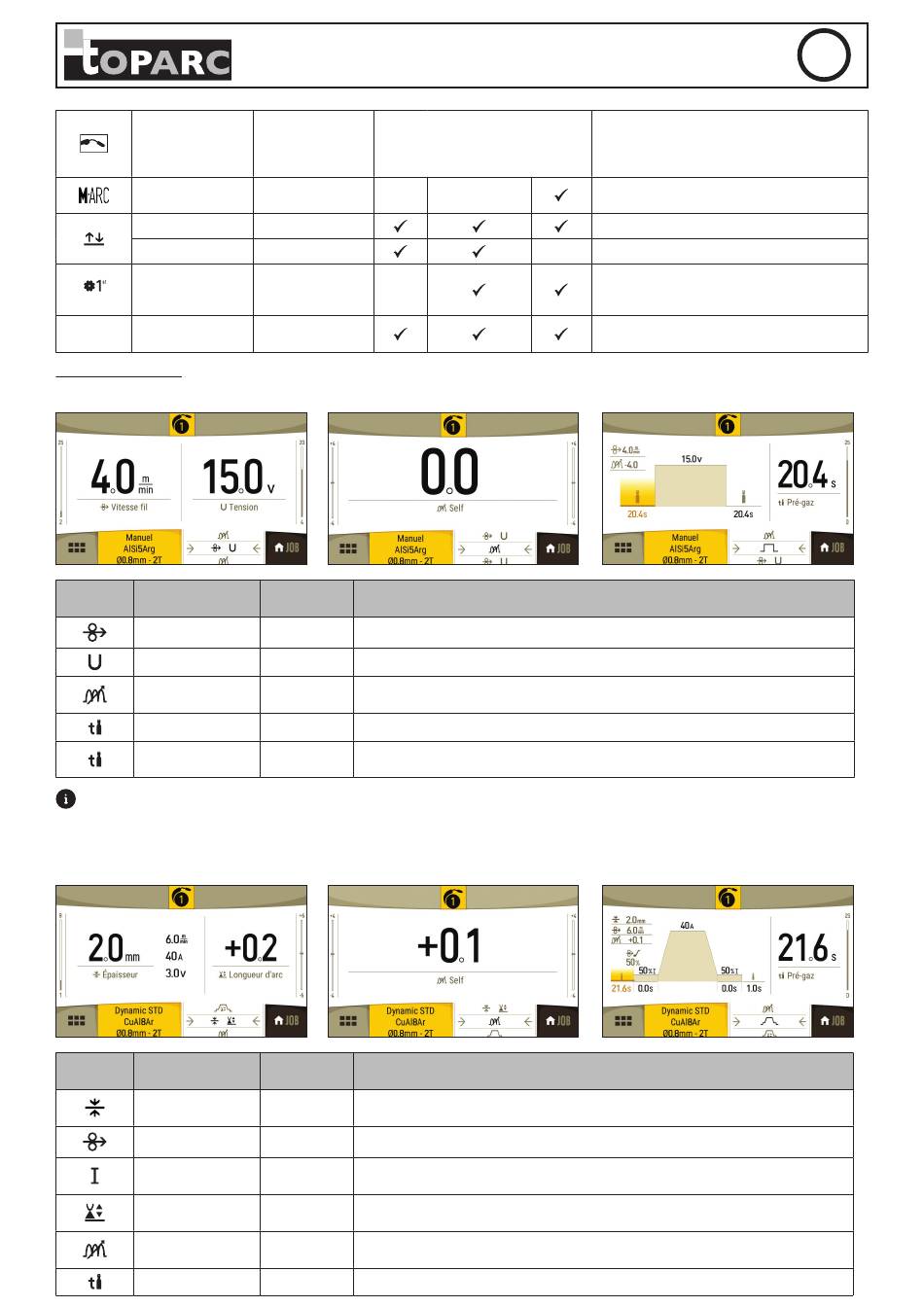

MIG-MAG WELDING
• GMAW/MIG-MAG Manual
Settings Designation
Wire speed
Voltage
Self
Pre-gas
Post gaz
Access to some welding parameters depends on the selected display mode: Settings/User Level: Easy, Expert, Advanced.
• Standard MIG-MAG/GMAW (Dynamic STD)
The Standard mode allows high quality welding on most ferrous materials such as steel, stainless steel, but also copper and its alloys, titanium... The
many possibilities of current and gas management allow you to perfectly control your welding operation, from the priming to the final cooling of your
weld bead.
Settings Designation
Thickness
Speed
Current
Arc length
Self
24
Pre-gas
RC-HD2
- Manual
- Dynamic STD
- Pulse
- Cold Pulse
OFF - ON
2T, 4T
Spot, Delay
Thickness
Speed
Current
Hold
Thermal coeff.
Adjustable
settings
1 - 22m/min Quantity of filler metal deposited and indirectly the welding intensity.
10 - Umax Sets the welding power.
Smoothes more or less the welding current. To be adjusted according to the welding
-4 > +4
position.
0 - 25 secs. Torch purge time and to protect the area with gas before ignition
Duration for which gas is released after the arc has stopped. It protects the weld pool
0 - 25 secs.
and the electrode against oxidisation when the metal is cooling down.
Adjustable
settings
The synergy allows for fully automatic settings. Adjusting the thickness
0.1 - 5.5 mm
automatically sets the right voltage and wire speed.
1 - 22m/min Quantity of filler metal deposited and indirectly the welding intensity.
The welding current is adjusted according to the type of wire used and the material to
10 - Imax
be welded.
Used to adjust the distance between the end of the wire and the weld (voltage adjust-
-6 > +6
ment).
Smoothes more or less the welding current. To be adjusted according to the welding
-4 > +4
position.
0 - 25 secs. Torch purge time and to protect the area with gas before ignition
Enables or not the modulation of the welding
current (appearance of a TIG weld bead)
Choice of trigger welding management mode.
Choice of scoring mode
Choice of the main parameter to be displayed
(Thickness of the part to be welded, wire
speed, average welding current).
See chapter «ENERGY MODE» on pages
following.
Description & advice
Description & advice
