WARNING - SAFETY RULES
GENERAL INSTRUCTIONS
Read and understand the following safety recommendations before using or servicing the unit.
Any modification or servicing that is not specified in the instruction manual must not be undertaken.
The manufacturer is not liable for any injury or damage due to a non-compliance with the instructions featured this manual.
In the event of problems or doubts, please consult a qualified person to handle the installation properly.
OPERATION
This remote control is designed to work with MIG / MAG , MMA and TIG welding processes. It can remotely operate the welding machine. The digital
remote control can be switched on and off using the ON/OFF button. When the digital remote control is switched on, the wire feeder's interface swit-
ches off. A visual reprentation of the digital remote control appears on the wire feeder's interface. When the digital remote control is switched off or
disconnected, the wire feeder's interface switches back on.
Compatible machines : TITAN - TITANIUM - NEOFEED/PULSFEED - NEOPULSE/PULSEMIG

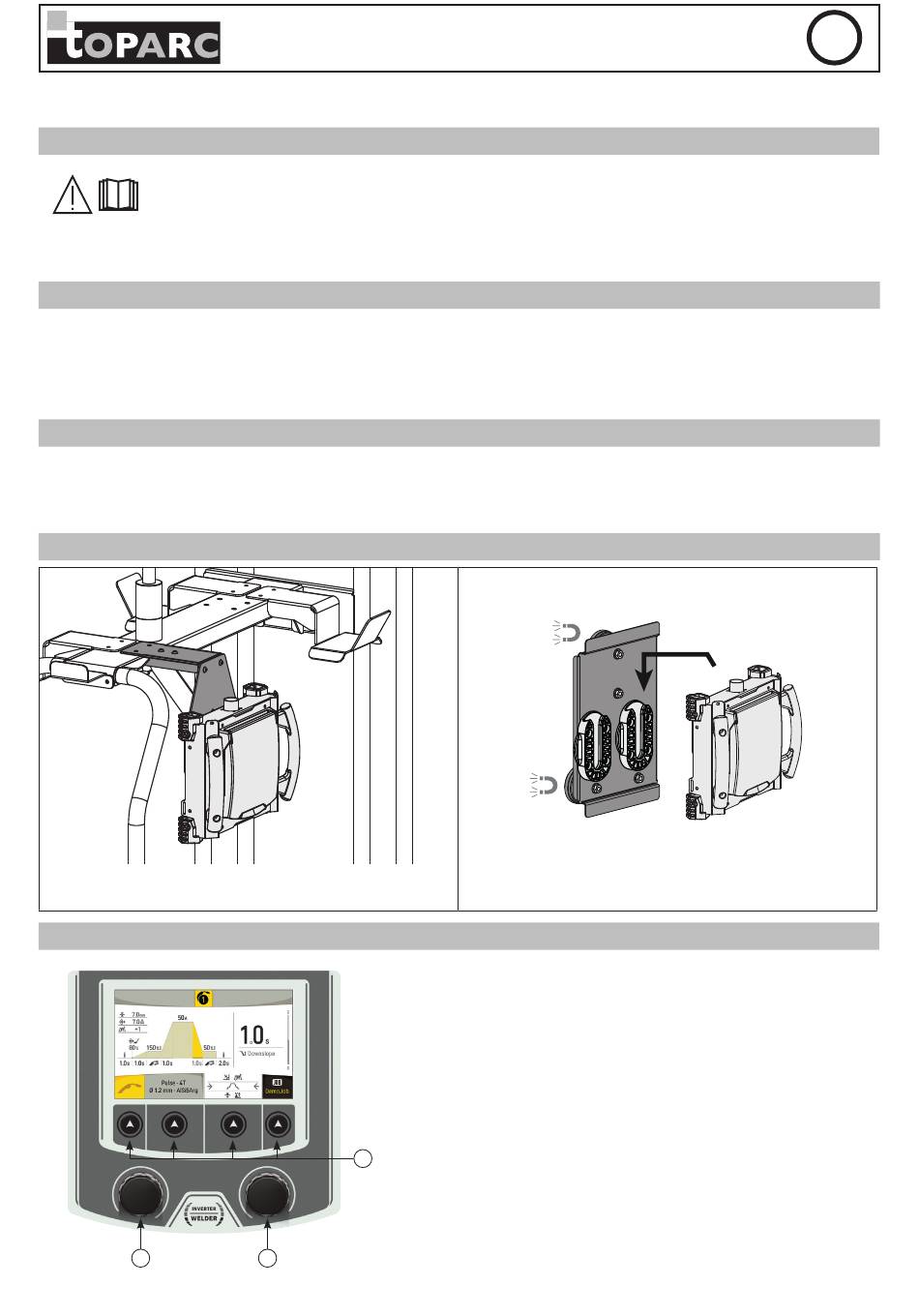

EQUIPMENT DESCRIPTION (FIG-1)
1- Interface (MMI)
2- Remote control and power supply connector
3- ON/OFF button
MOUNTING SUPPORT (OPTION)
The support (ref. 037779) of the digital remote control can be mounted
on the T/M 400 trolley (option, ref. 037328).
HUMAN-MACHINE INTERFACE (HMI)
2
22
RC-HD2
4- USB connector
5- Remote control and power supply cable (option)
1- Access buttons to the various menus and parameters
2- Adjustment wheel left screen
3- Right screen adjustment knob
1
3
MAGNETIX 50 (option, ref 029637)
EN
