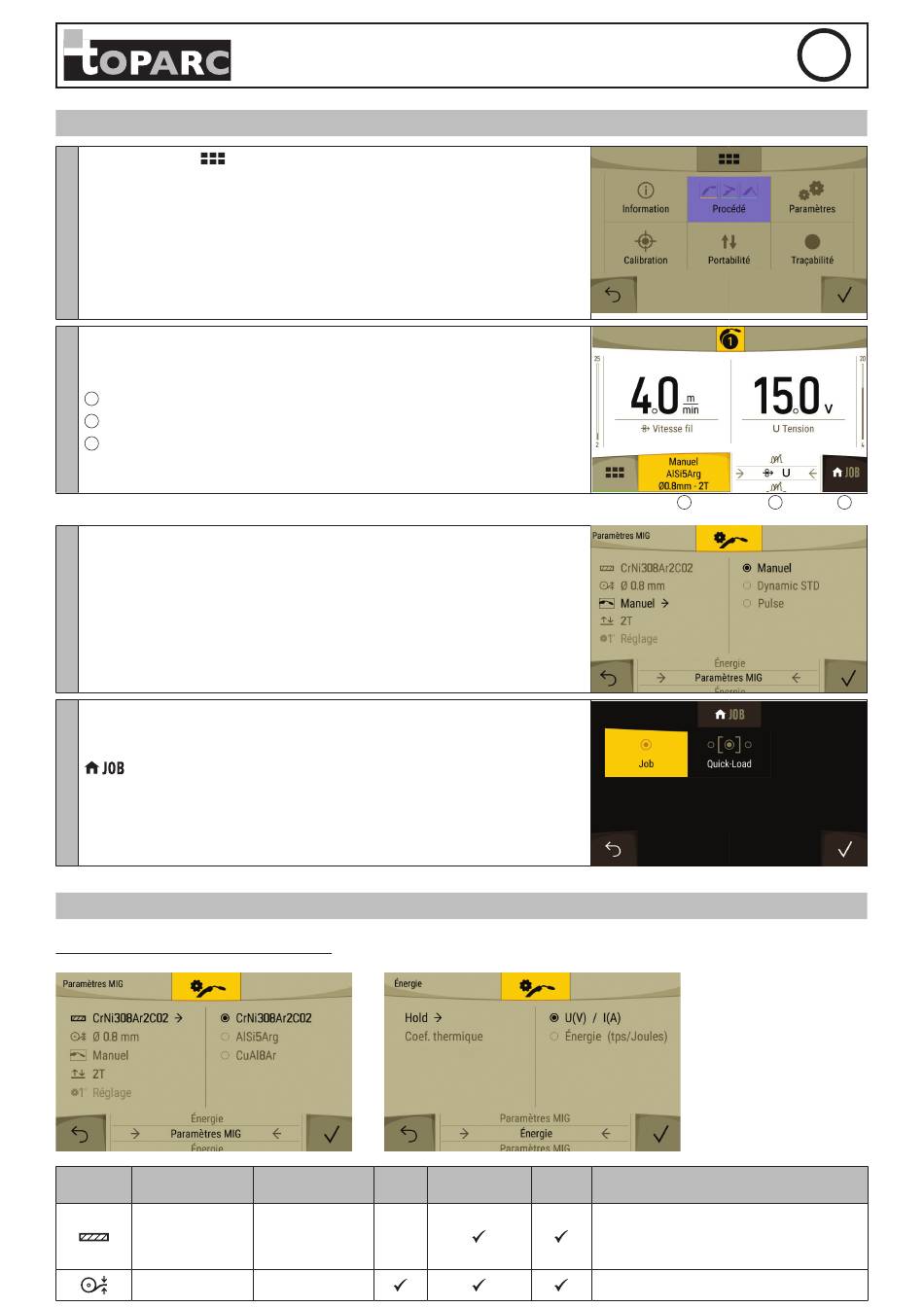

GENERAL ORGANISATION OF THE INTERFACE

Parameter setting

:
• Information: all product information is available here (Model, S/N......)
• Process: choose the welding process: MIG-MAG, TIG or MMA.
• Settings: the advanced product settings are available here (display mode, device name,
language...)
1 • Calibration: allows you to start the calibration of the speed on the wire feeder and
welding accessories.
• Portability: allows you to load or download JOBS from a USB key
as well as the machine configuration.
• Traceability: allows you to start saving all welding beads and exporting them to a USB
key.
Process : corresponds to the interface of the welding process in progress:
Process parameter: allows process settings,
1
2
At the various adjustment windows,
2
JOB: gives access to the different JOB reminder modes.
3
Process parameters: corresponds to the process parameter setting window:
• MIG-MAG (GMAW): Material/gas pair (Synergic welding parameters), wire diameter,
welding process (Manual, Dynamic STD, etc.), trigger mode.
• TIG (GTAW): welding process (Standard or Pulse), electrode diameter, etc.
3
• MMA (SMAW): welding process (Standard or Pulse), electrode type, anti-sticking, etc.
Energy: configuration of the energy mode, developed for welding with energy control
supervised by a DMOS (see chapter «ENERGY MODE»).
: corresponds to the program recall modes window:
4
• JOB: create, save, delete and recall JOB.
• QUICKLOAD: JOB recall using the trigger when not welding.
SEMI-AUTOMATIC WELDING (MODE MIG / MAG) - GMAW
THE SETTINGS OF THE MIG / MAG PROCESS
Settings Designation
Torque
material/gas
Wire diameter
RC-HD2
Adjustable settings Manual
- Fe Ar CO2 18%
- Al Mg 5 Ar 100%
- HARDFACE Metal
- etc
Ø 0.6 > Ø 1.6 mm
Dynamic STD
Pulse
(Standard)
Choice of the material to be welded.
Synergic welding parameters
Choice of wire diameter
EN
1 2 3
Recommendations
