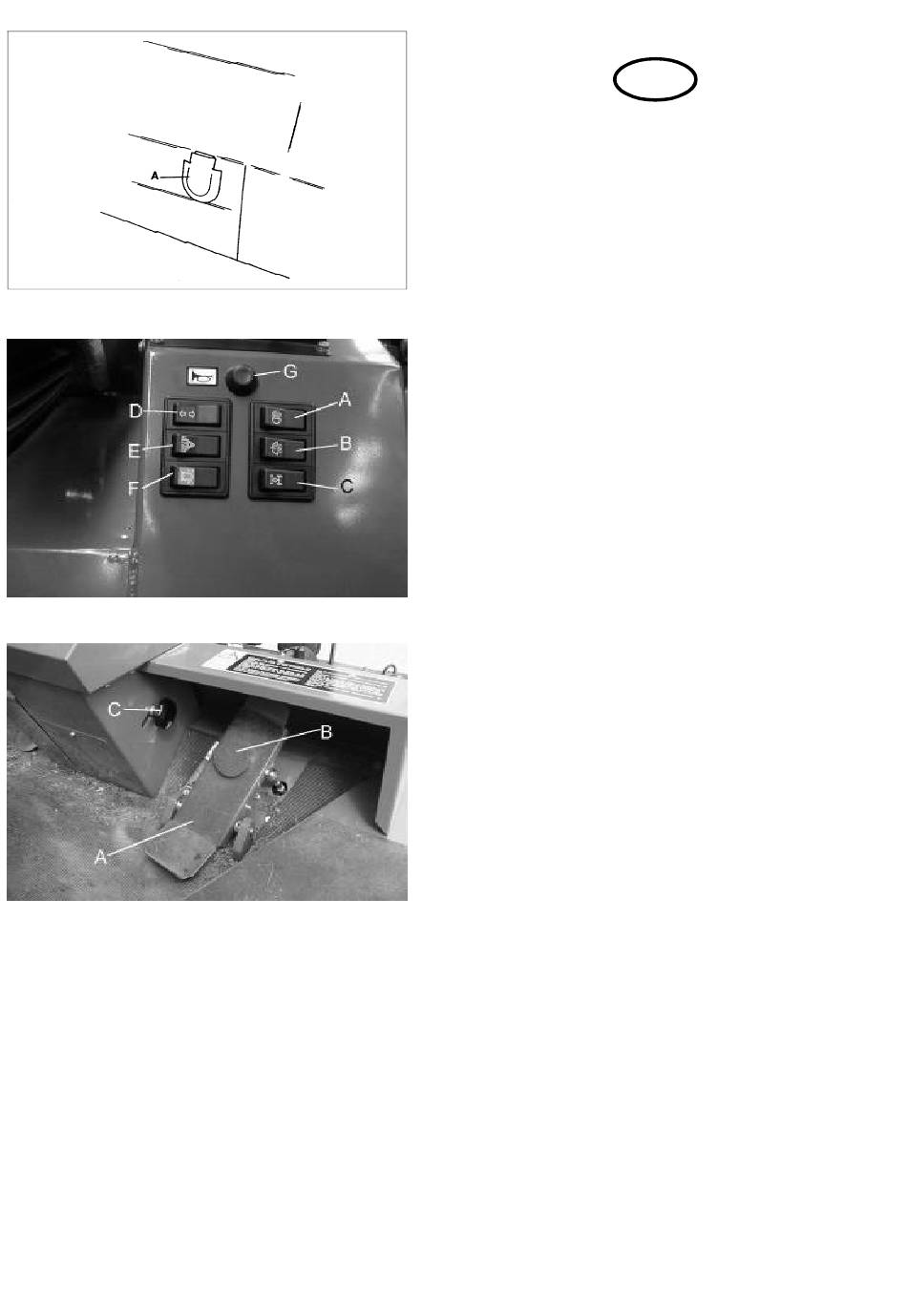

Fig.13
Fig.14
Fig.15
DIFFERENTIAL LOCK SWITCH (A Fig.13)
The differential lock switch is situated on the left hand
forward facing panel below the operators seat. To
engage differential lock depress the switch with the
heel, to disengage release the switch. This will only
work when 4 wheel drive has been selected.
HORN (G Fig.14)
A warning instrument is installed on the machine and
can be operated with the horn button situated on the
forward facing panel of the key switch housing.
LIGHTING CONTROLS (Fig.14)
The Electrical switches are situated in a block of six
mounted on the left hand side of the operator.
1. DIRECTION INDICATORS (D)
The direction indicators are operated by a three
position rocker switch. To operate the right hand
indicators depress the right hand side of the switch.
To operate the left hand indicators depress the left
hand side of the switch. The switch illuminates when
on.
2. HAZARD WARNING SWITCH (E)
The hazard warning switch is a two position rocker
switch which operates all four indicator lights at the
same time. The switch illuminates when on.
3. ROTATING BEACON SWITCH (F)
The rotating beacon switch is a two position rocker
switch and operates a beacon when fitted. The switch
illuminates when on. (Beacon is optional equipment).
4. MAIN LIGHTING SWITCH (A)
The main lighting switch is a three position rocker
switch. Position 1 is "off", position 2 is "side and rear
lamps", position 3 is "side, head and rear lamps".
5. WASH / WIPE SWITCH (B)
The wash / wipe switch is a three position rocker
switch. Position 1 "wipe"and position 2 "wash / wipe"
with return to position 1. (Wash/wipe comes with cab)
2WD/4WD SELECTOR SWITCH (C)
The 2 wheel / 4 wheel drive switch is a two position
rocker switch. Position 1 engages 2WD for transport
and position 2 engages 4WD for cutting.
STEERING WHEEL RAKE ADJUSTMENT
(C Fig.15)
The steering wheel is adjustable for rake. The
clamping release knob is situated on the right hand
side of the steering column housing. To adjust turn
the clamping knob anticlockwise to release and pivot
the steering wheel backwards and forwards to obtain
desired setting then lock in position by turning
clamping knob clockwise.
