Connecting to Devices which Control the Projector

Before connection, be sure to turn off both the projector and devices to be connected.
• Read thoroughly the manual that comes with each device to be connected.
• By connecting a computer to the RS-232C terminal, you can control the projector.
* Obtain connection cables as required. Use a reverse connection cable.
* For details, refer to "RS-232C external control" on page 69.
* For further details, consult your dealer or an authorized service center.
• The supplied remote control can be used as a wired remote control. Use the supplied remote cable to connect the REMOTE
terminal of the main unit with the wired remote control terminal of the remote control. (Refer to page 20.)

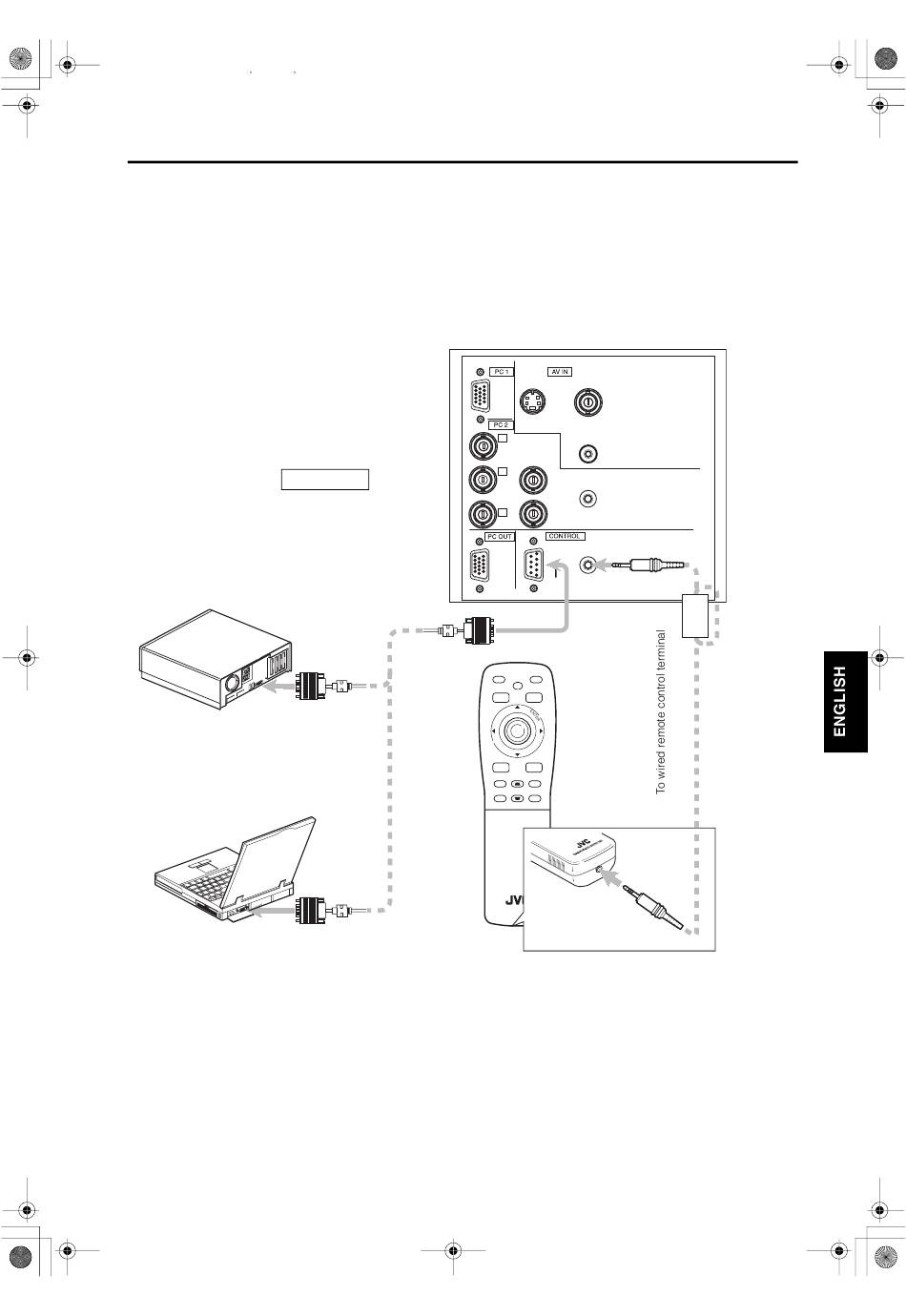

• Desktop type
To RS-232C connector
• Note type
To RS-232C connector
TO CONTROL
RS-232C
reverse
connection
cable
(separately
available)
DLA-M2000LU/M2000SCU/ LCT0940-002A / ENGLISH
Connecting to Various Devices
Y/C VIDEO
R
AUDIO
P /R-Y
R
G
PC AUDIO
H
Y
B
V
P /B-Y
B
To REMOTE terminal
REMOTE
RS-232C
To RS-232C connector
FREEZE OPERATE
HIDE
PRESET MENU
ESCAPE VIC SELECT
PC
+
DIGITAL
ZOOM KEYSTONE VIDEO
–
RM-M2000 REMOTE CONTROL UNIT
Remote cable
(Supplied)
27
