4. Kerb climber (Fig. 4):
The left and right mounting plates for the Kerb Climber Tube (1) are fixed onto the inside of the frame using the
sleeves, nuts and bolts provided.
Next fit the Kerb Climber Tube, starting on the left hand side and fitting the end of the tube into the round socket
on the left-hand mounting plate.
Then fit the right-hand end into the square socket on the right mounting plate and pass the quick release axle
through it (2).
5. Batteries
1. Lean the side supports of the battery housings on the rails.
2. Push the battery cases forwards on the rails until they lock in place. Put the battery case with the connectors
for the electronics in first. Position it first so that the connecting lead for the electronics is on your right. This will
make it much easier to connect the batteries.
3. Now connect the two connecting plugs on the left side of the battery cases together.
4. Once you have made sure that the connections are secure, connect the front battery to the controls.
To remove the batteries, reverse the procedure. Disconnect the battery from the control and then disconnect the
batteries from each other. Push the battery cases upwards slightly until they disengage, and then pull them out
along the rails.
6. Wheels: If it is necessary to remove the wheels, to repair a damaged tyre for example, proceed as follows:
Front wheel:
1. Use a 7 mm. Allen wrench to remove the wheel axle from the fork.
2. Remove the damaged wheel.
3. When the wheel has been repaired, follow the reverse procedure to refit.
Rear wheel:
1. Using a screwdriver, remove the cover of the hub.
2. Loosen this screw with a 19 mm. hexagonal socket wrench.
3. Remove the damaged wheel. When it has been repaired, follow the reverse procedure.
NOTE: The rear wheels are designed as separate rims and can be disassembled to simplify changing the tube
or cover.

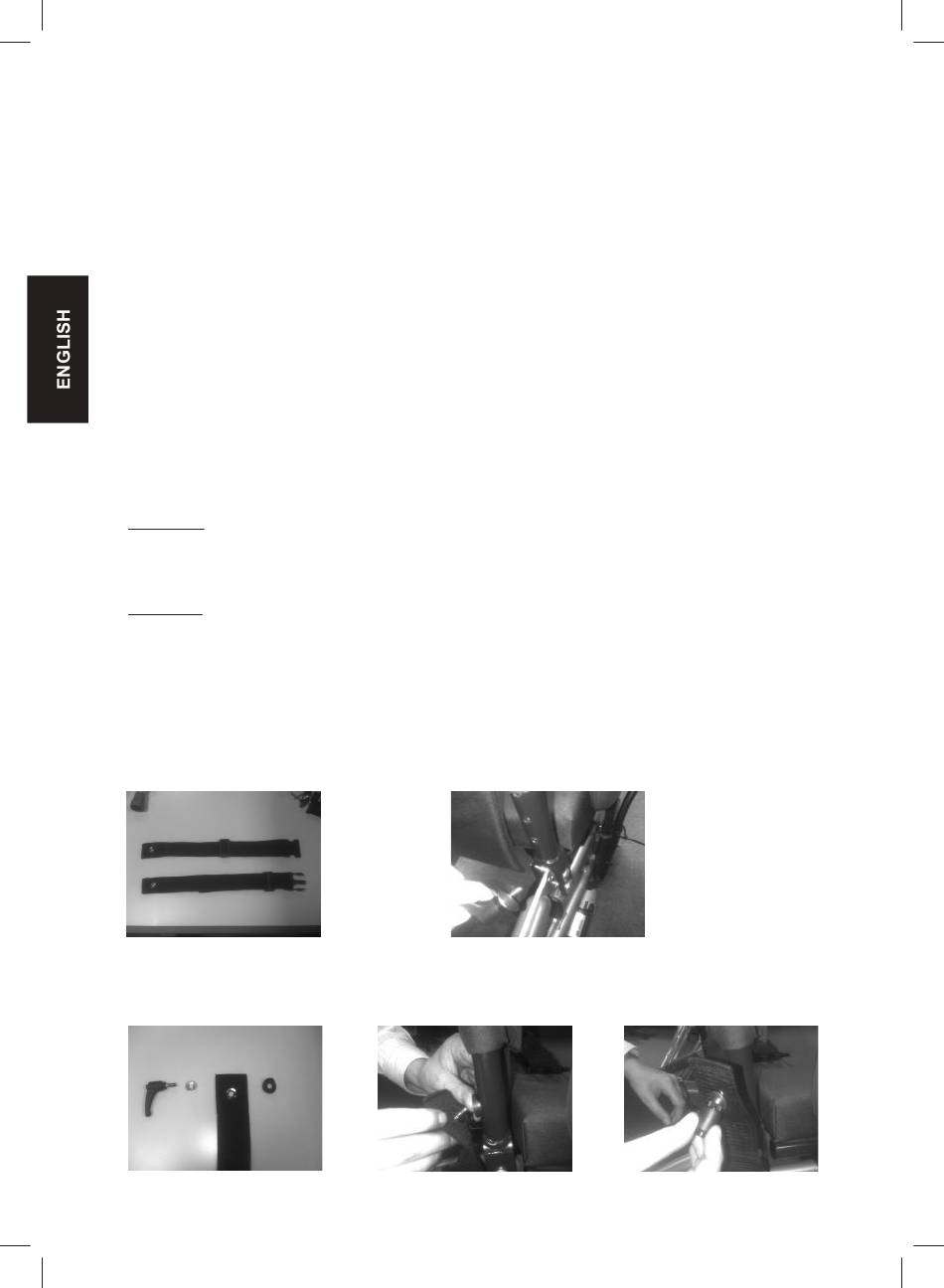

7. Lap Belt
1) Remove Lap belt (pt No. 52596) from Bag
3) Using the fixings previously removed; fix the lap belt to the back post via the desired hole depending on Back
height required.
Ensure the saddle washer is fitted onto the Back tube with the washer fitting between the belt and the hand
wheel.
28
2) Undo the backrest lever and remove fixing
bolt / hand wheel and washer.
