Remote communication via Bluetooth with integrated GPRS modem

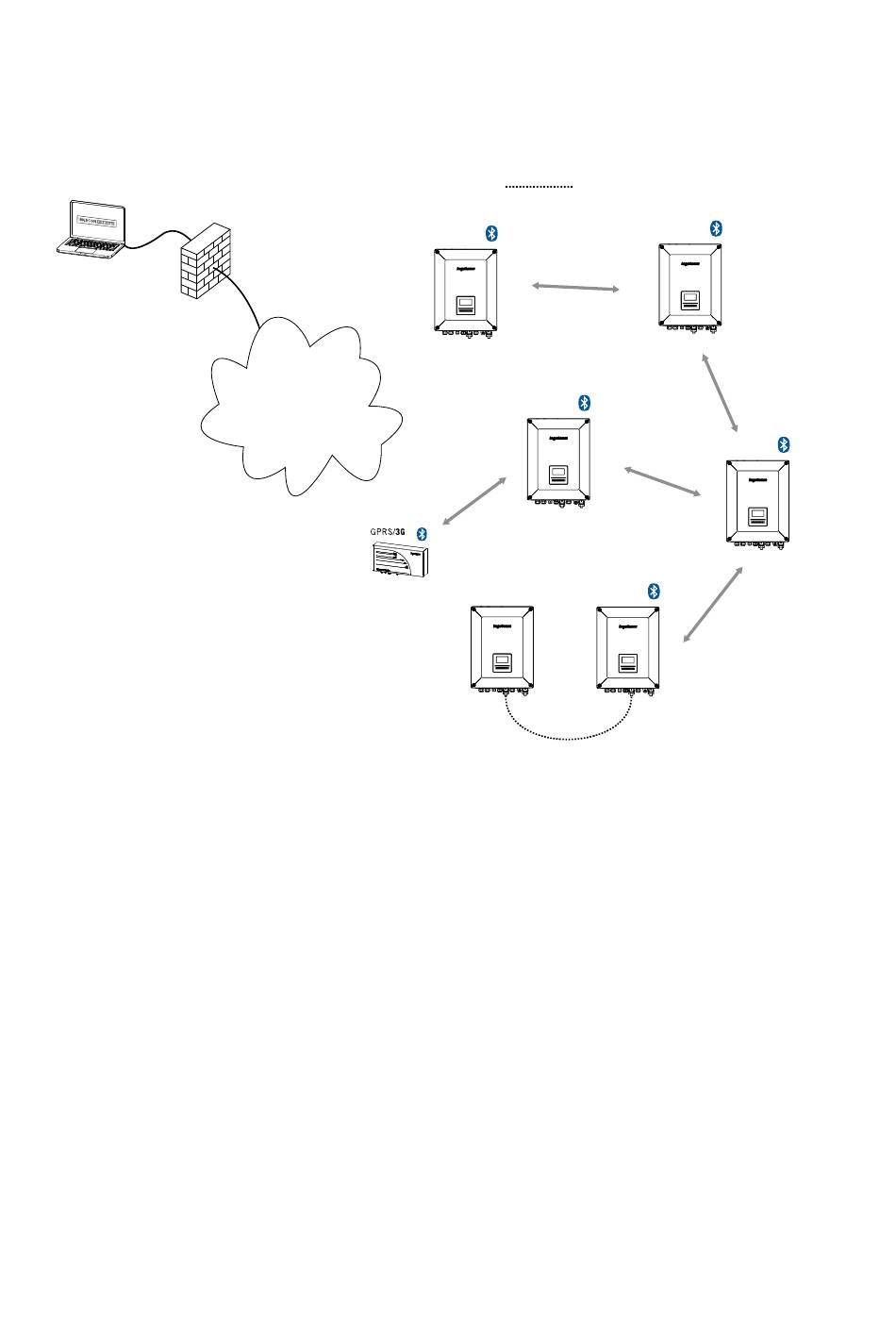

In the following example the INGECON SUN ComBox communicates with the installation's units via Bluetooth. In
addition, the GPRS modem must be installed in the device's base plate in order to communicate remotely with the
plant.
E
D
A. INGECON SUN ComBox with AAX7014 and AAX7035 kits.
B. INGECON unit with Bluetooth card.
C. INGECON unit connected to the RS-485 bus (end of line).
D. Remote firewall.
E. Remote monitoring system (PC, automaton, etc.).
