8.2. Bluetooth - AAX7035

The connection of this card in the INGECON SUN ComBox base plate allows the Bluetooth network to be
automatically extended without the need to be connected to the network.

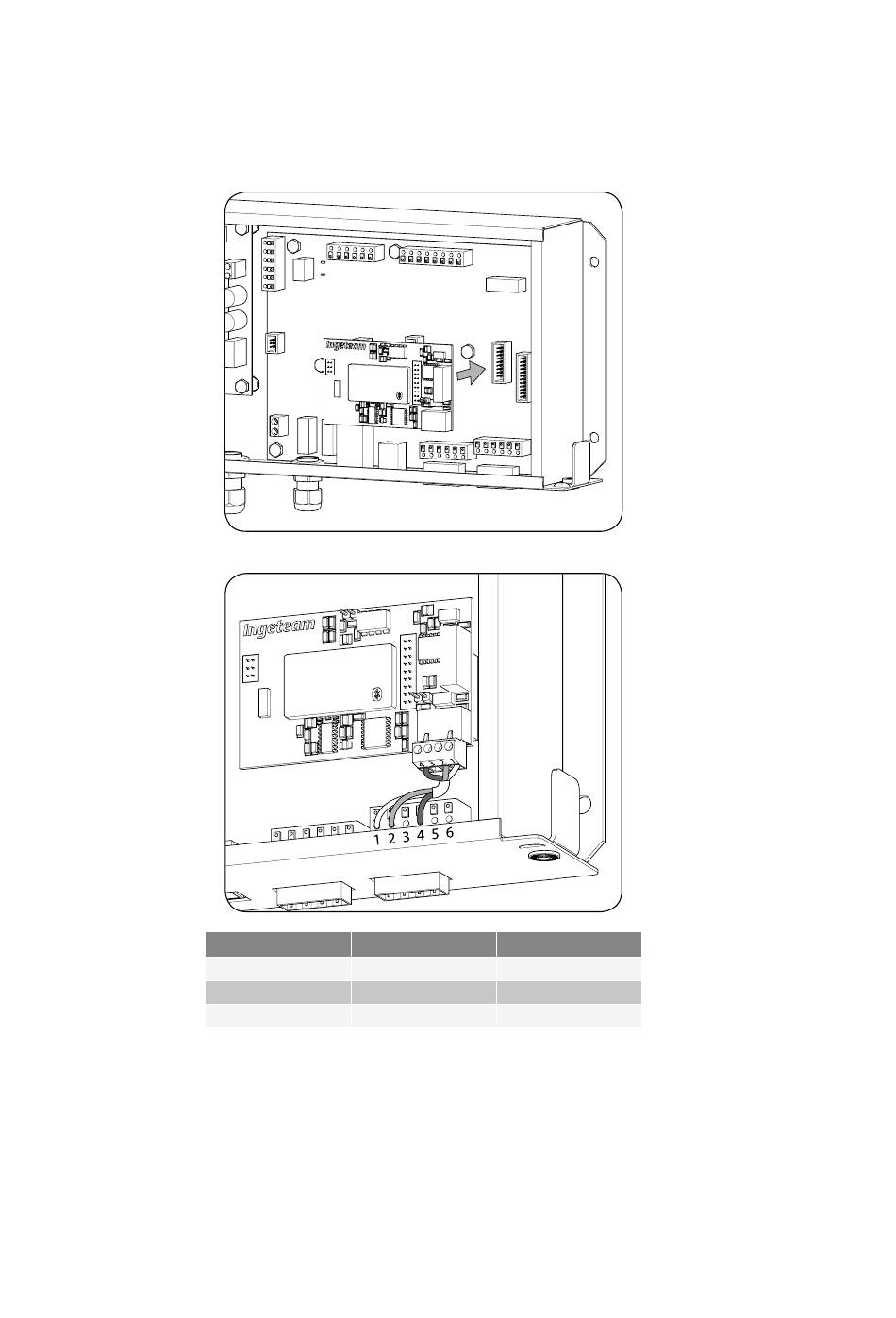

1. Insert the Bluetooth card in its designated slot in the device's base plate.
2. Connect the AQL0103 cable following the instructions in the following table.
48
Base plate Bluetooth
J10.4 J2.4
J10.2 J2.2
J10.1 J2.1
Connecting the communication accessories
AQL0103 Cables
Brown
Blue
Green
AAX2015IQM01_ - Installation and usage manual
