Installing the heater
Remove all package material (including the shock absorbing material around the
bulb) before installing the heater and check the appliance, supply cord and the plug
for signs of damage.
Carefully choose the right place to install your heater.
Before fastening, check that the minimum safe distances between the surroundings
and the chosen location are respected:
Minimum distance lowest point of heater – floor: 1,8 metres
Minimum distance heater – heated object: 1 metre
Minimum distance top heater – fire-resistant ceiling: 0.3 metres
Minimum distance top heater – tent tarpaulin, parasol etc.: 0.35 metres
Minimum distance side heater – walls, obstacles, objects: 0.5 metres
If you suspend the device outside, ensure that it is protected from the wind.
Wall mounting
 The housing of the heater (1) must be
at least 30 cm from the ceiling, 50 cm
from side-walls and 1.80 m above the
floor.
 The patio heater must be affixed to a
sturdy wall made of stone or cement.
Never attach to walls made of wood
or other flammable material! Attach
using the bracket supplied; do not use
any other supports or attachments!
 Drill four holes in the correct places
for the plugs and attach the wall
bracket to the wall using the screws.
The curved part of the plate must be
uppermost and the 'keyhole' must be
located at the bottom of the support.
The wall bracket must be horizontal.
 Attach the bracket (6) using the two small screws on the patio heater, as shown.
 Turn the hanging screw (7) into the corresponding hole on the side of the patio
heater, until it protrudes a maximum of 5 mm (see diagram).

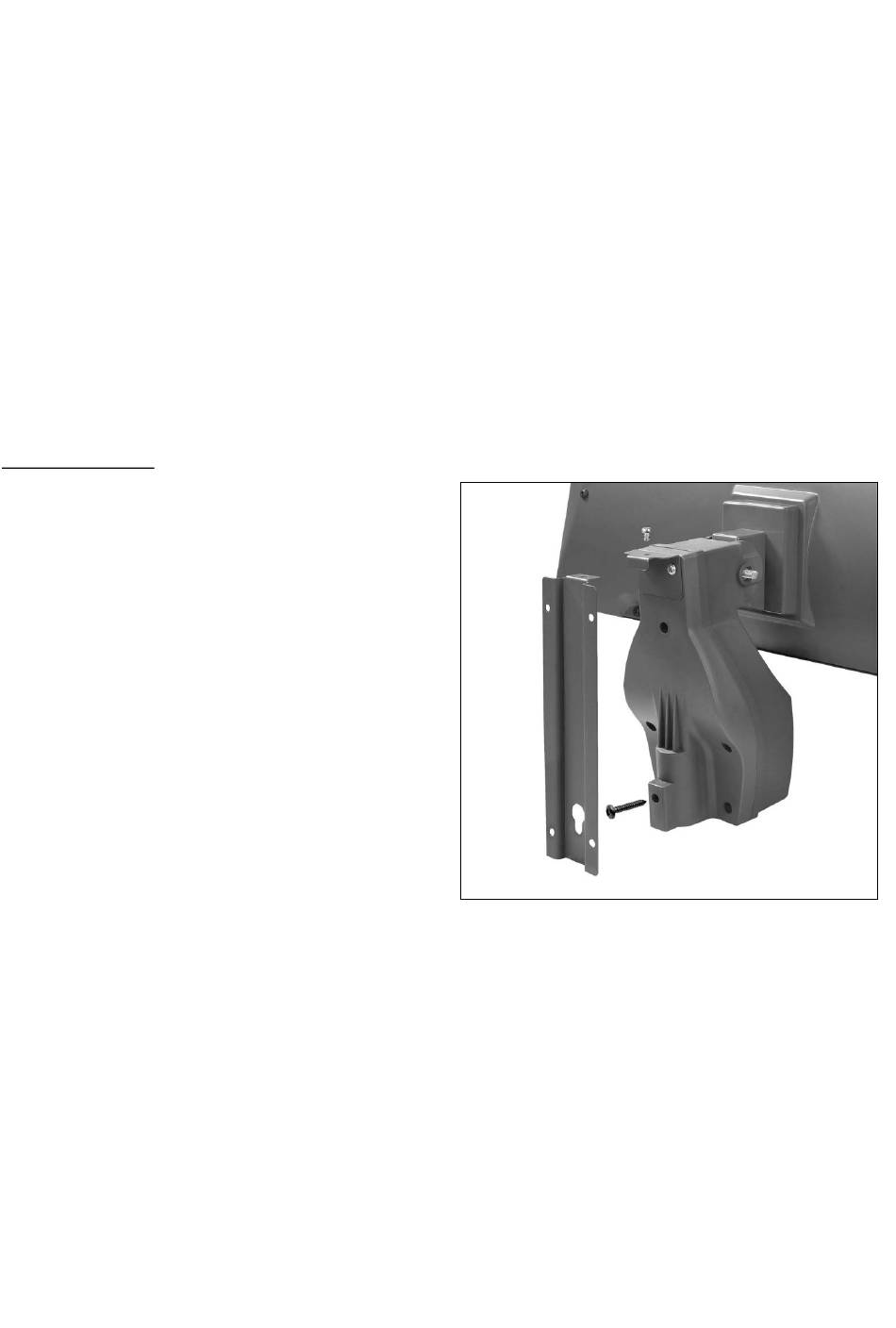

 Hang the heater onto the wall support. The bracket at the back of the heater
unit must fall into the curved part of the wall support; the hanging screw (7)
must be placed into the round part of the 'keyhole' on the wall support and then
pushed gently downwards until the patio heater is firmly affixed. Secure this
with a bolt through both brackets (see diagram).
 Check that the patio heater is attached firmly and fully horizontally before use.
