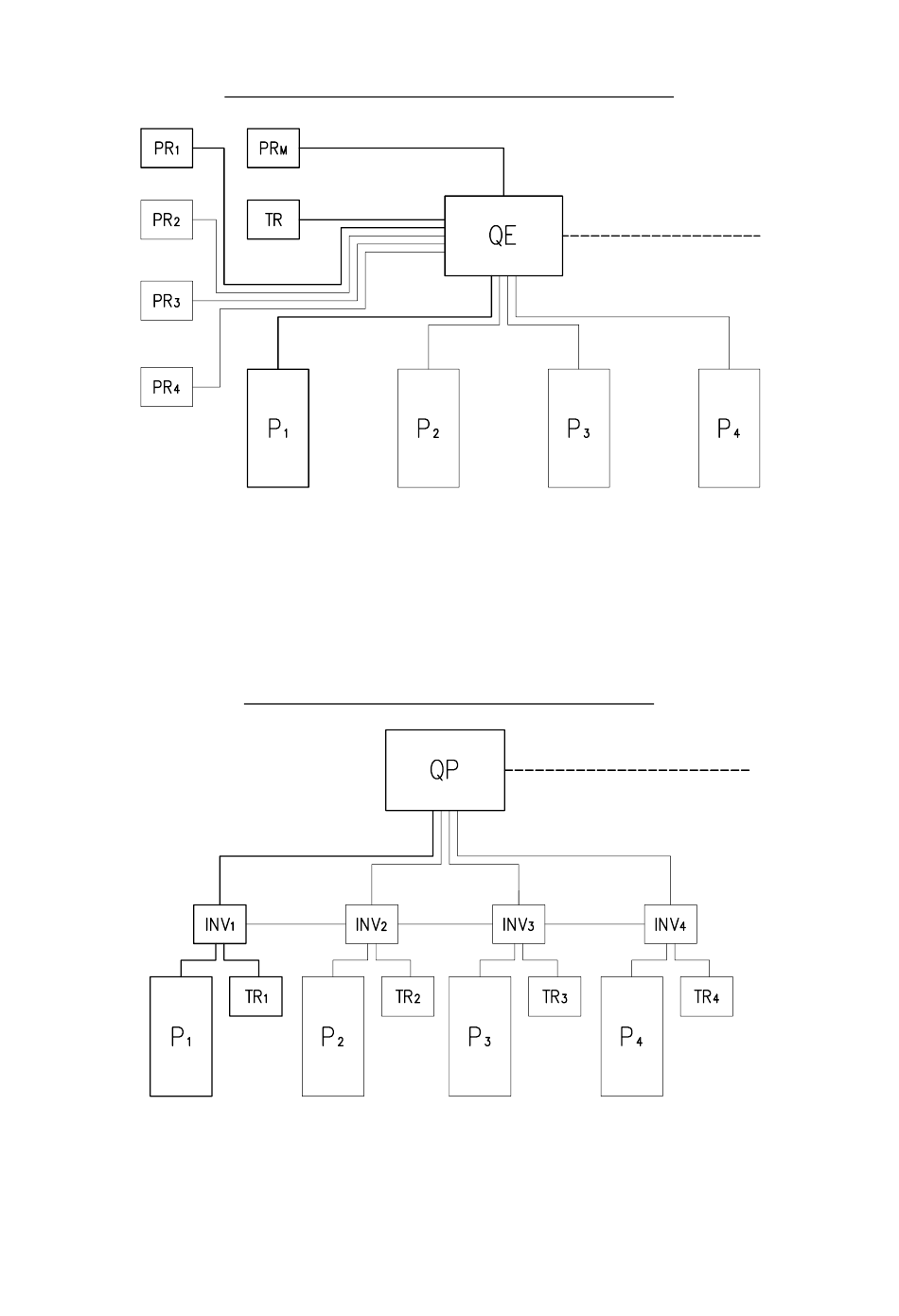

G – WIRING DIAGRAMS
QE = Control panel
P = Electric pump 1(2,3,4)
1(2,3,4)
PR = Pressure switch 1(2,3,4) (NO connection) (EP-E excluded)
1(2,3,4)
PR = Minimum pressure switch - optional
M
TR = Transducer (EP excluded)
Notes:
- for connecting the panel to the power supply line, see the attached control panel manual
- The connections with dash lines are the responsibility of the installer
QP = Protection panel
P = Electric pump 1(2,3,4)
1(2,3,4)
TR = Transducer 1(2,3,4)
1(2,3,4)
INV = Inverter 1(2,3,4)
1(2,3,4)
Notes:
- for connecting the protection panel to the power supply line, see the attached panel manual
- The connections with dash lines are the responsibility of the installer
MAIN DIAGRAM
VERSION WITH CONTROL PANEL (EP/EP-E/SP-EFC/SP-MFC)
VERSION WITH ON-BOARD PUMP INVERTER (E-DRIVE)
ENGLISH

POWER SUPPLY

POWER SUPPLY
13
