Programming quiet mode, booster heating or domestic water
heating

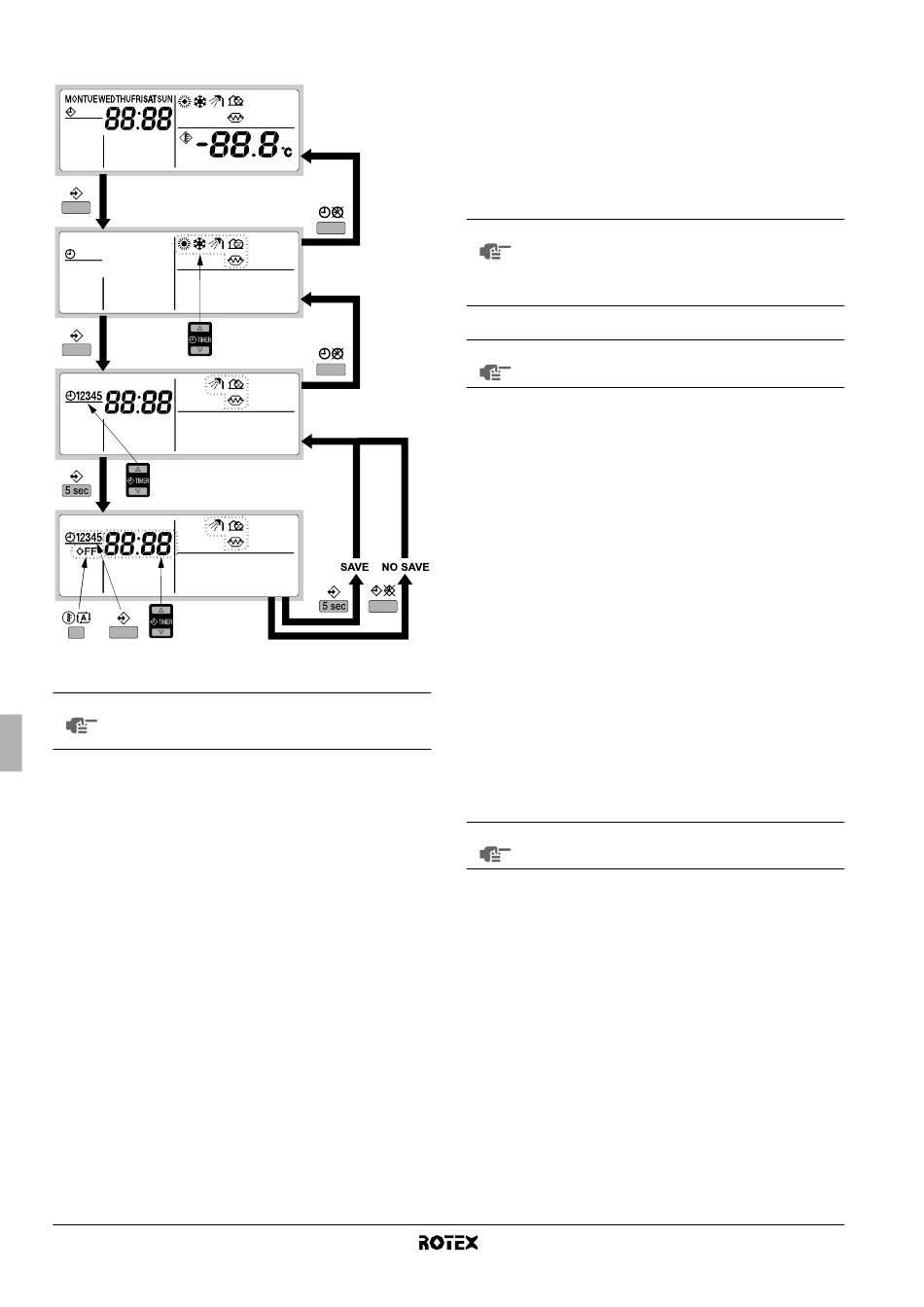

Programming domestic water heating, booster heater or quiet mode
is carried out as follows:
NOTE Returning to previous steps in the programming
procedure without saving modified settings is done by
pressing the pr button.
1 Press the < button.
The actual mode is blinking.
2 Use the pi and pj buttons to select the mode you want
to program (quiet mode s
water heating w ).
The selected mode is blinking.
Press the < button to confirm the selected mode.
3
The first programmed action is displayed.
Use the pi and pj buttons to consult the programmed
4
actions.
This is called the readout mode. Empty program actions (e.g. 4
and 5) are not displayed.
Press the < button for 5 seconds to enter the programming
5
mode.
Use the < button to select the action number you would like to
6
program or to modify.
Use the pi and pj buttons to set the correct action time.
7
Use the ba button to select or deselect x as action.
8
9 Repeat steps 6 to 8 to program the other actions of the selected
mode.
When all actions have been programmed, make sure that the
display shows the highest action number you would like to save.
Operation manual
9
, booster heating m or domestic
10 Press the < button for 5 seconds to store the programmed
actions.
If the < button is pressed when action number 3 is displayed,
actions 1, 2 and 3 are stored but 4 and 5 are deleted.
You automatically return to step 4. By pressing the pr button
several times, you return to previous steps in this procedure and
finally return to normal operation.

Consulting programmed actions

Consulting space cooling or space heating actions
NOTE Consulting space cooling or space heating is done in
the same way. At the start of the consulting procedure
space cooling or space heating is selected. After that,
you have to return to the start of the consulting
procedure to consult the other operation mode.
Consulting space cooling or space heating is carried out as follows.
NOTE
Returning to previous steps in this procedure is done
by pressing the pr button.
1 Use the = button to select the operation mode (cooling or
heating) you want to consult.
Press the < button.
2
The actual mode is blinking.
3 Press the < button to confirm the selected mode.
The actual day is blinking.
4 Select the day you would like to consult by means of the pi
and pj buttons.
The selected day is blinking.
Press the < button to confirm the selected day.
5
The first programmed action of the selected day appears.
Use the pi and pj buttons to consult the other
6
programmed actions of that day.
This is called the readout mode. Empty program actions (e.g. 4
and 5) are not displayed.
By pressing the pr button several times, you return to previous
steps in this procedure and finally return to normal operation.
Consulting domestic water heating, booster heater or quiet
mode
Consulting domestic water heating, booster heater or quiet mode is
carried out as follows.
NOTE
Returning to previous steps in this procedure is done
by pressing the pr button.
Press the < button.
1
The actual mode is blinking.
Use the pi and pj buttons to select the mode you want
2
to consult (quiet mode s
water heating w ).
The selected mode is blinking.
3 Press the < button to confirm the selected mode.
The first programmed action is displayed.
Use the pi and pj buttons to consult the programmed
4
actions.
This is called the readout mode. Empty program actions (e.g. 4
and 5) are not displayed.
By pressing the pr button several times, you return to previous
steps in this procedure and finally return to normal operation.
