Programming quiet mode or domestic water heating

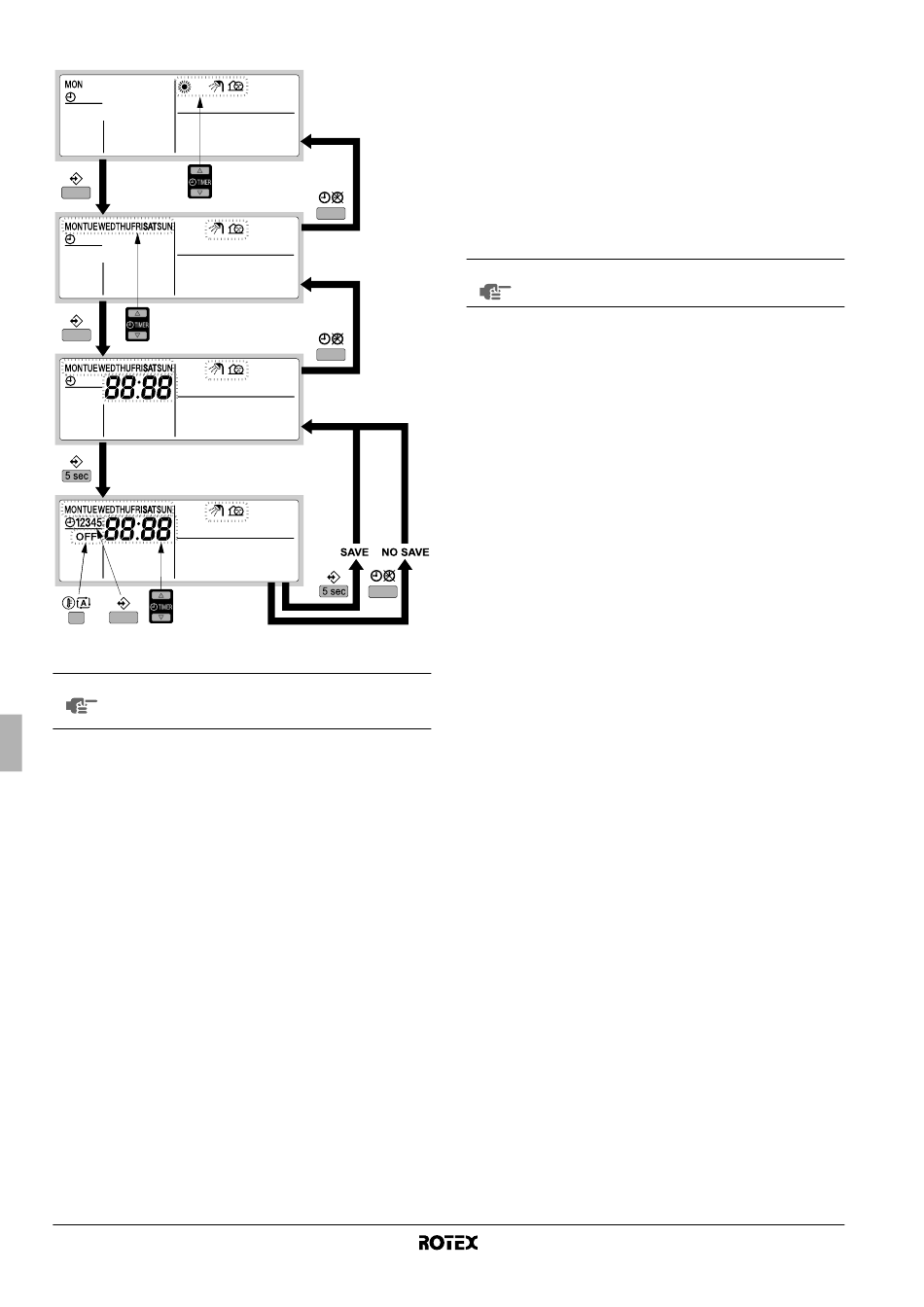

Programming domestic water heating or quiet mode is carried out as
follows:
NOTE Returning to previous steps in the programming
procedure without saving modified settings is done by
pressing the pr button.
Press the < button to enter the programming/consulting mode.
1
2 Select the operation mode you would like to program by means
of the pi and pj buttons.
The actual mode is blinking.
Press the < button to confirm the selected mode.
3
Select the day you would like to program by means of the pi
4
and pj buttons.
The actual day is blinking.
5 Press the < button to confirm the selected day.
Hold down the < button for 5 seconds to the program the
6
detailed actions
The first programmed action of the selected day appears.
Use the < button to select the action number you would like to
7
program or to modify.
Use the pi and pj buttons to set the correct action time.
8
Use the ba button to select or deselect x as action.
9
10 Repeat steps 7 to 10 to program the other actions of the
selected mode.
When all actions have been programmed, make sure that the
display shows the highest action number you would like to save.
Operation manual
13
11 Press the < button for 5 seconds to store the programmed
actions.
If the < button is pressed when action number 3 is displayed,
actions 1, 2 and 3 are stored but 4 and 5 are deleted.
By pressing the pr button several times, you return to previous
steps in this procedure and finally return to normal operation.
12 You automatically return to step 6, start again to program the
following day.

Consulting programmed actions

Consulting space heating, domestic water heating or quiet mode is
carried out as follows:
NOTE
Returning to previous steps in this procedure is done
by pressing the pr button.
1 Press the < button to enter the programming/consulting mode.
2 Select the operation mode you would like to consult by means of
the pi and pj buttons.
The actual mode is blinking.
3 Press the < button to confirm the selected mode.
The actual day is blinking.
4 Select the day you would like to consult by means of the pi
and pj buttons.
The selected day is blinking.
Press the < button to confirm the selected day.
5
The first programmed action of the selected day appears.
Use the pi and pj buttons to consult the other
6
programmed actions of that day.
This is called the readout mode. Empty program actions (e.g. 4
and 5) are not displayed.
By pressing the pr button several times, you return to previous
steps in this procedure and finally return to normal operation.

Tips and tricks

Programming the next day(s)
After confirming the programmed actions of a specific day (i.e. after
pressing the < button for 5 seconds), press the pr button once. You
can now select another day by using the pi and pj buttons
and restart consulting and programming.
Copying programmed actions to next day
In space heating program it is possible to copy all programmed
actions of a specific day to the next day (e.g. copy all programmed
actions from "1" to "2").
To copy programmed actions to the next day, proceed as follows:
1 Press the < button to enter the programming/consulting mode.
The actual mode is blinking.
2 Select the operation mode you would like to program by means
of the pi and pj buttons.
The actual mode is blinking.
You can leave programming by pressing the pr button.
Press the < button to confirm the selected mode.
3
The actual day is blinking.
4 Select the day you would like to copy to the next day by means
of the pi and pj buttons.
The selected day is blinking.
You can return to step 2 by pressing the pr button.
Press the < and pr buttons simultaneously for 5 seconds.
5
After 5 seconds the display will show the next day (e.g. "2" if "1"
was selected first). This indicates that the day has been copied.
You can return to step 2 by pressing the pr button.
