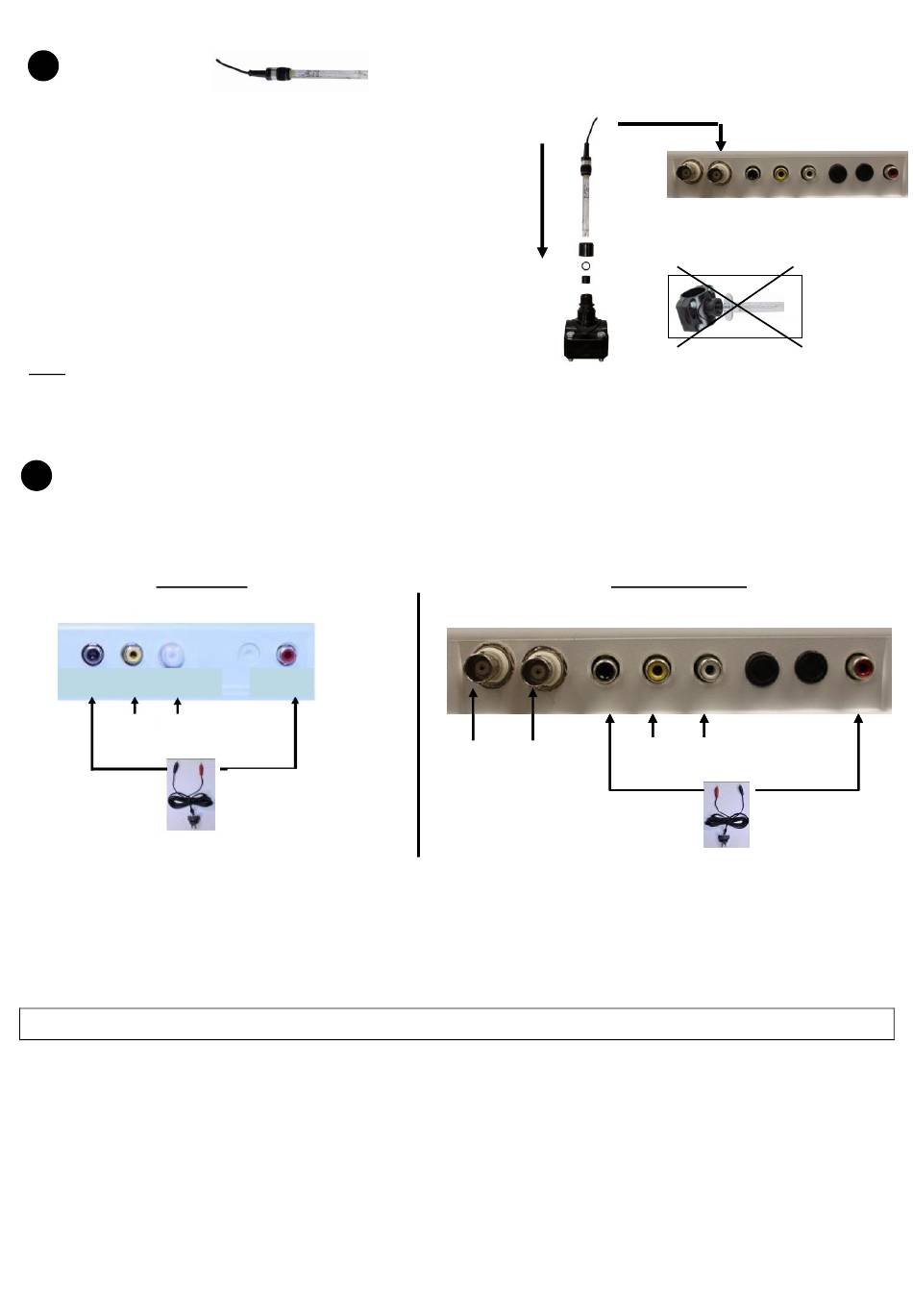

REDOX PROBE

8
1/ Put the saddle horizontally on the pipe. Direct the opening
upward. Mark then drills the pipe.
2/ Install with some Teflon the probe-holder on the saddle.
Remove the plastic protection of the redox probe and
then take-up on probe-holder and screw (watch whatever
it is not in abutment with the pipe).
3/ Connect the cable of the redox probe (BNC jack) on the
base of the controller box.
Note : the probe must be installed vertically on the saddle. A
different assembly will damage the precision of the probe
measure (can make it non efficiency).

CONNEXIONS TO THE CONTROLLER BOX

9
Uno Model
Black Yellow White Black Yellow White
Cover Cover Flow (in option) Flow (in option)
JUSTSALT UNO - JUSTSALT DUO - JUSTSALT PRO - PAPI004084MULTI1 - FR/EN/ES/IT - Rev.01.16
Red Red
Temperature /salt /no
water sensor
You can now switch on the device.
2/
1/
Duo / Pro Model
Black Yellow Black Yellow Black Yellow
pH probe pH probe Redox probe Redox probe Redox probe
Pro model Pro model Pro model
3/
NON
White White White
Cover Cover Cover Flow (in option) Flow (in option) Flow (in option)
Temperature /salt /no Temperature /salt /no Temperature /salt /no
water sensor water sensor water sensor
10
Red Red Red
