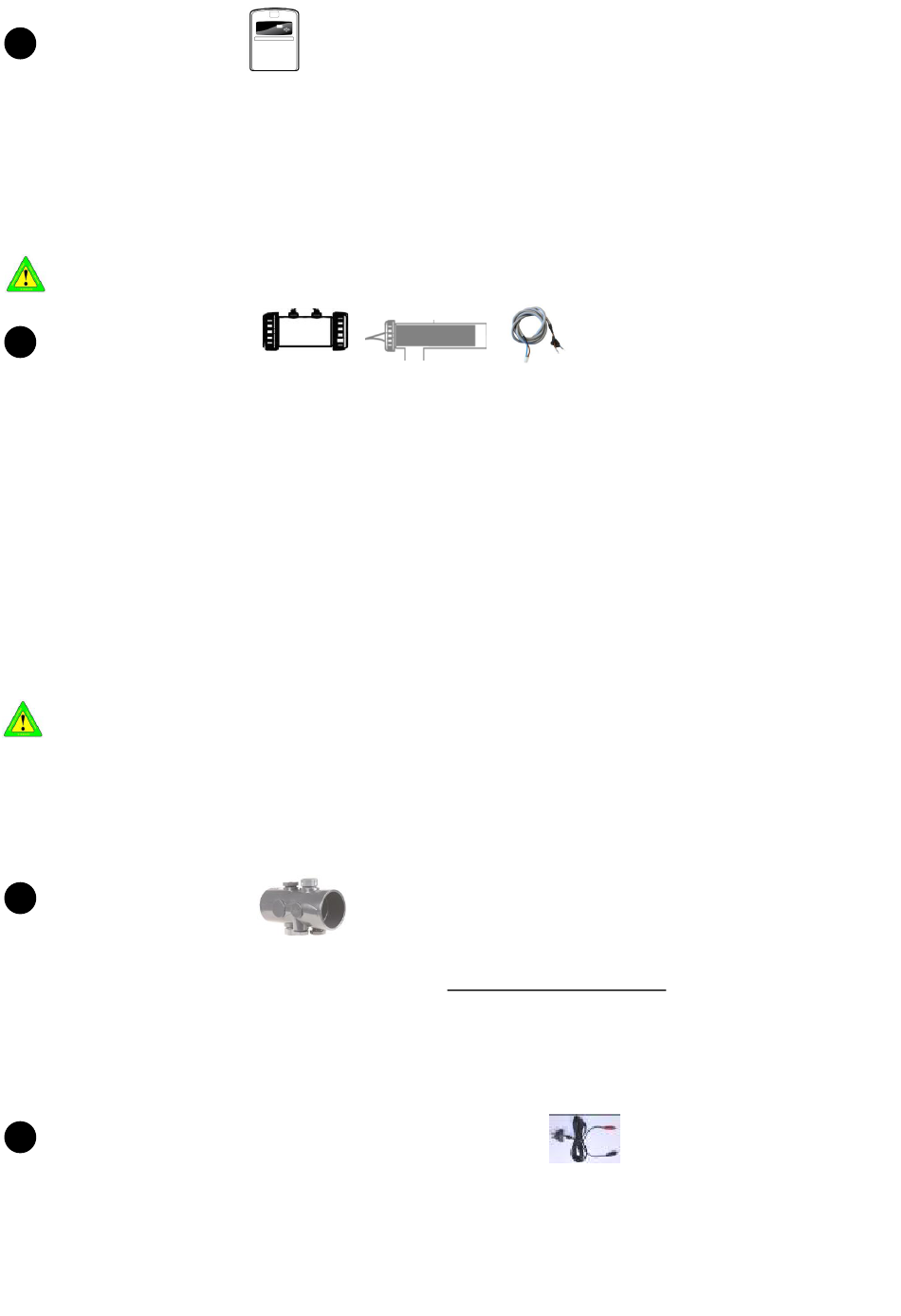

CONTROLLER BOX

 Choose a location that is easily accessible, close to the pump timer, far apart 2 meters maximum
from the chlorinator cell. Install the controller box vertically, far enough away from the pool to
comply with the regulatory distance in force in your country. Do not cover.
 Controller must be permanently connected to the pump timer by enslaving to the pump timer. Do
not use an extension cord. Do not plug the device into an electric power outlet. Beforehand, turn
off the differential circuit breaker. Ensure that the controller box well switches off when the
filtration pump stops.
Any contact between the controller box and the water can pull a risk of electrocution

CHLORINATION CELL

2

Install the cell horizontally and after, any other device of treatment, cleaning or heating (just before
the water jet).
On line cell

Install successively the water tightness seals, and then the collars and hand tighten the nuts. Stick
the group on the pipe.
In T cell

Stick the vase of the cell and then takes up electrodes, the water tightness seal and hand tighten
the nut ;
Then, for the two types of cell.
 Use if necessary the 63/50 supplied reducers.
Then, for the two types of cell :
Wait that all the sticking are totally dry before handing pipes under pressure.

Connect the cell supply cable to the controller box.

Position the 2 terminals (Brown and Blue) indifferently on one of the borders of cell.

Install the lock washers, and then tighten nuts (using a size 10 spanner), gently, until the blocking.

Adjust the rubber protections
3

ACCESSORY HOLDER

 Install the accessory-holder horizontally
 After all other cleaning or heating equipment but before the chlorinator cell.
 Respect the water flow direction. The arrow shows the direction of water flow and must be visible on
top of the holder.
 The indication "flow" has to be on the top, respect the direction of the passage of the water.
4
SALT/TEMPERATURE/NO WATER SENSOR (Length = 2m)
 Plug the sensor under the device on the red RCA jack.
 Screw and tighten by hand the salt/temperature sensor (never with crowbar) on the top of the holder.
No Teflon is needed.
