Pool Technologie JUSTSALT UNO Manuel Utilisateur page 29

7

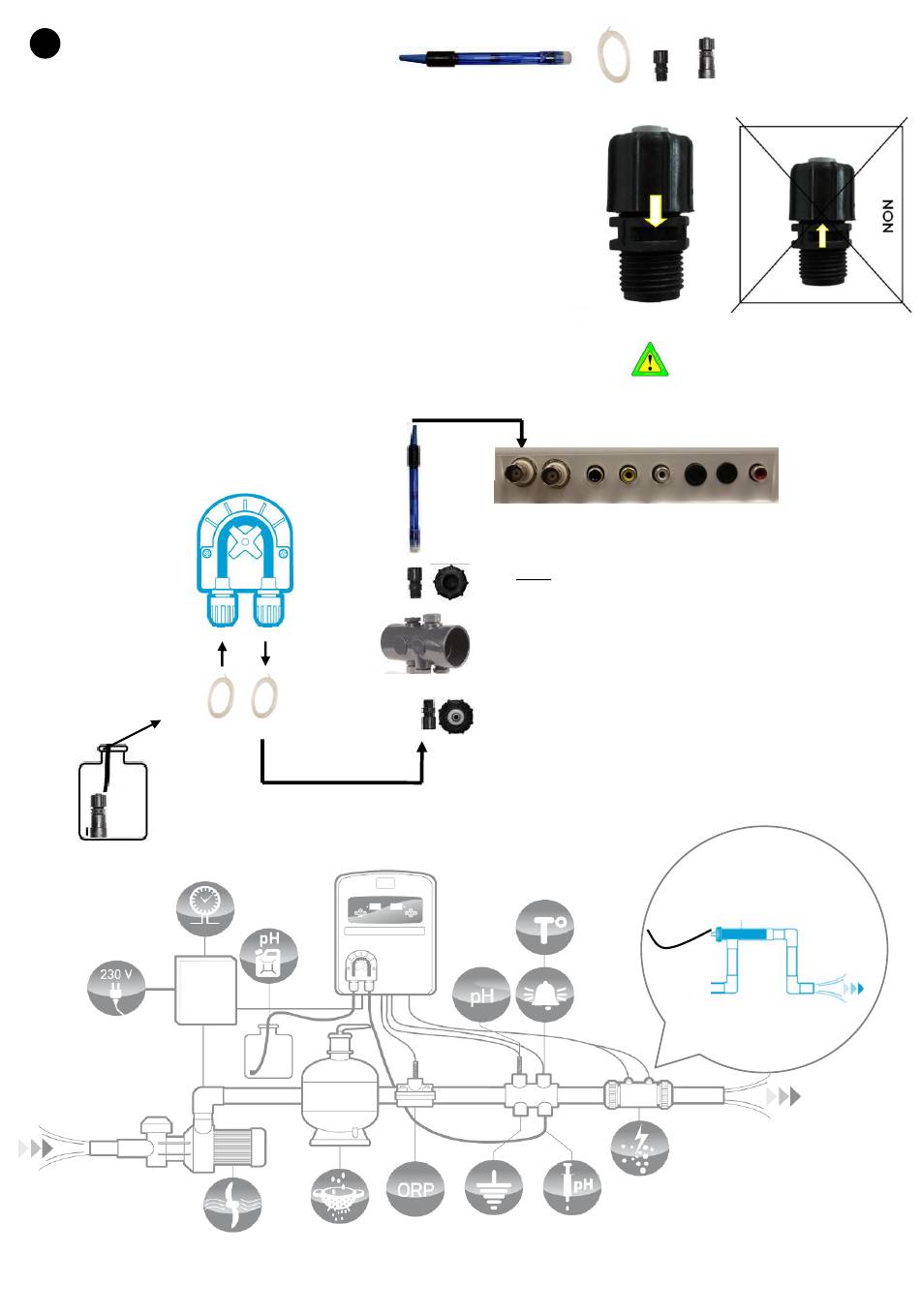

PH PROBE AND CIRCUIT OF INJECTION
 Connect the suction strainer to the entry of the pH pump
with a part of the supplied pipe. Respect the sense of
arrows representing on the top of the pH pump.
 Install with some Teflon the injection connector on the
third saddle and screw. Connect the exit of the Ph pump
to the injection connector with the rest of the supplied
pipe. The injection connector must be closest to the
expulsion towards the pool.
 Screw the probe holder with Teflon on the accessories
holder. Remove the rubber protection at the end of the
pH probe and screw (make sure that it is not in abutment
with the waterworks).
 Connect the cable of the pH probe (BNC jack) under the controller box.
1/
For Pro Model in addition
JUSTSALT UNO - JUSTSALT DUO - JUSTSALT PRO - PAPI004084MULTI1 - FR/EN/ES/IT - Rev.01.16
4/
3/
2/
//
A wrong location of the
injection connector can entail
the deterioration of the
pump.
Note : Do not put the corrective tin
directly under the device
T assembly of the cell
9
