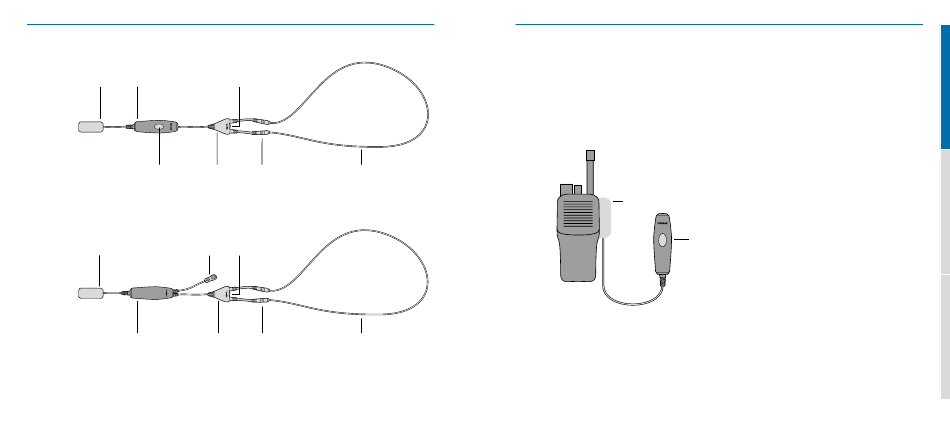

1 Profilo wirings components
Profilo WL wirings
Radio connector Junction-box
Figure 3
In-line PTT
Profilo LM wirings
Radio connector
2-key PTT
Figure 4 Junction-box
12
Microphone
Loop-box Neck-loop
Quick-release safety disconnects
Microphone
Loop-box Quick-release safety disconnects Neck-loop
2 How to use the Profilo kit
Attaching the Profilo wiring to the radio
u Attach the Profilo wiring to a radio via the radio connector (figure 5). Please refer to the
radio user-guide for information on the correct way to attach the connector.
Radio connector
Junction-box
Figure 5
