User manual

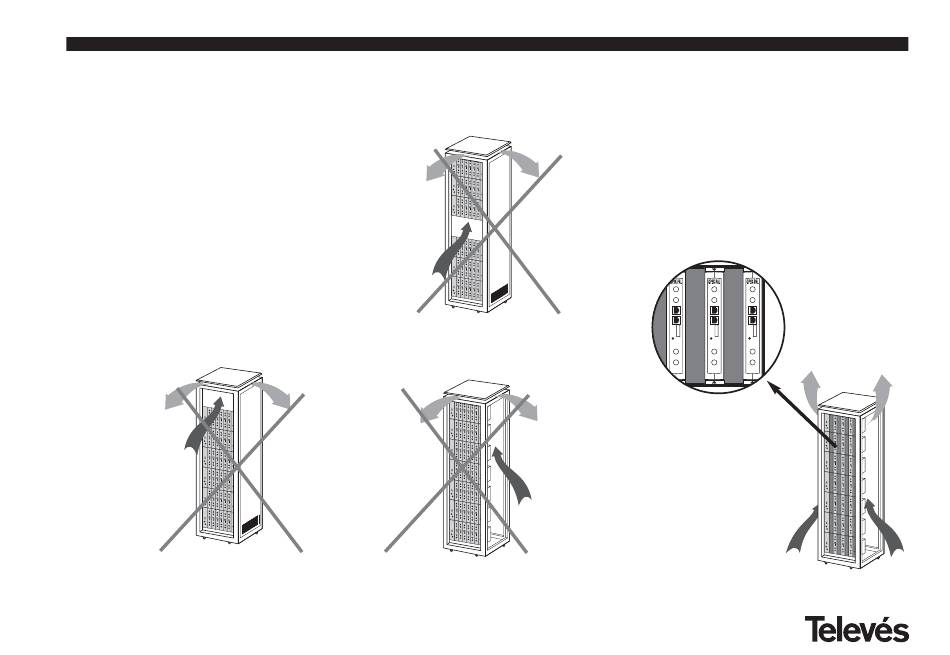

It is very important for this process to opera-
te correctly, and therefore the user:
- Must not open the side doors, as this
would cause the ventilators to extract the
air from the outside rather than the air in
the inside of the rack.
- Must not place objects close to the rack
that may block the entry and exit points
of the air.
- When the rack isn't complete, it is advisa-
ble to place the subracks from the top all
the way down without leaving any gaps in
the middle, fig 5.
fig. 5
34
7.2.- Instalation of the rack without venti-
lation facilities.
When the rack is located in an area where the
temperature is around 40°C, it is advisable to
install it in such a way that it is left totally
open, in other words, without adding the side
doors thus facilitating the ventilation of the
units with the option of placing the blank pla-
tes ref. 5073, fig. 6.
fig. 6
SAT-RF
