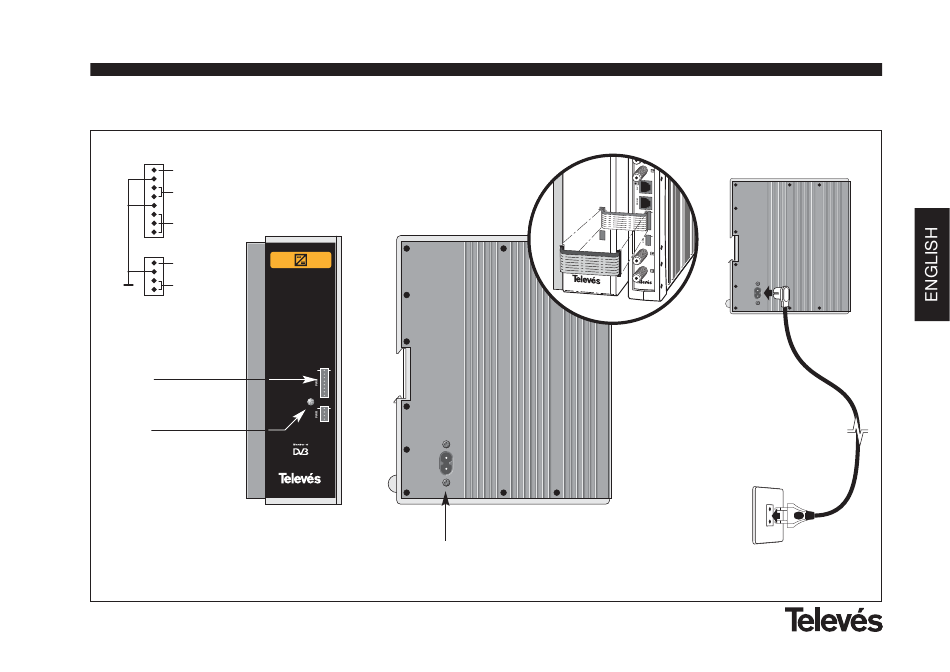

4.2.- Power supply unit

(1)
+ 18V
+ 15V
+ 5V
+ 24V
N/C
GND
Connectors to
power modules (1)
LED on
NOTE:
The power supply unit can power a maximum of 8 SAT-RF
modules + Hybrid amplifier Ref.5075 and one LNB or 10
SAT-RF modules and one LNB.
(1)
Mains input
230V~
