User manual

4. - ELEMENT DESCRIPTION

4.1.- SAT-RF

1
2
3
4
The SAT-RF transmodulator turns a TV or
radio channel (selected by the user) from the
existing channels in a satellite transponder
(FM analogue modulation and an approxi-
mate bandwidth of 27 MHz) into a VHF/UHF
channel (PAL / SECAM standard modulation
and a bandwidth of 7/8 MHz).
The selection of the different parameters
(input frequency, audio subcarrier, output
level, output frequency, ...) is carried out

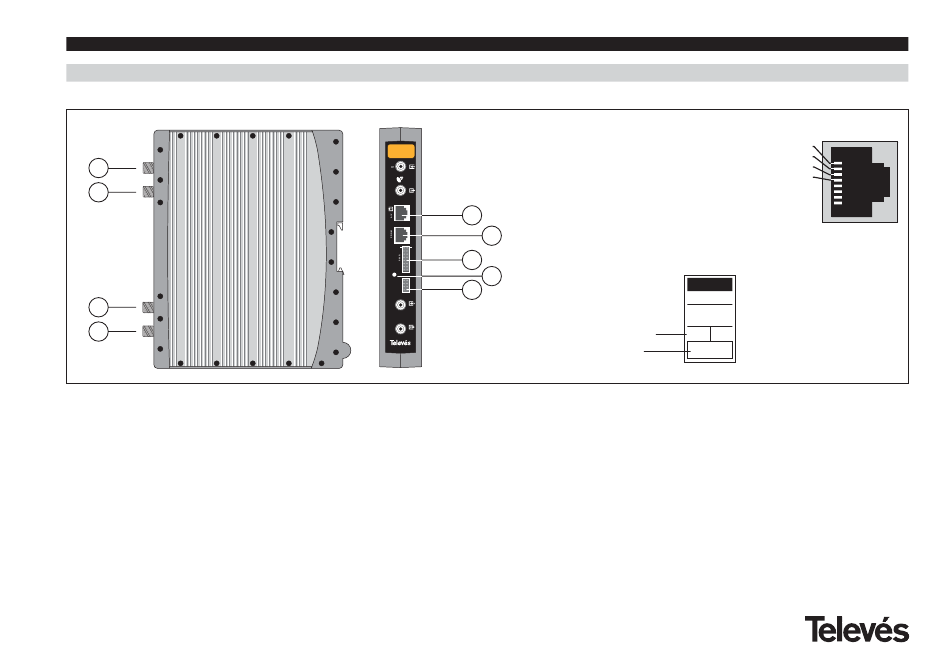

1.- IF input + V
2.- IF output
SAT-RF
3.- RF input
4.- RF output
5.- A/V output (1)
6.- Programmer connector
5
7.- Module powering input
8.- LED
6
9.- Control Bus connector
7
8
9
Indicates the programmed
234756
output channel
using the programmer ref. 7234, that is con-
nected to the front of the device.
The SAT-RF transmodulator disposes of an
IF input and output in the upper "F" connec-
tors with the aim of enabling the input signal
to pass to various modules, it also allows
the powering of a converter via the IF input
(13V or 18V), as well as being able to gene-
rate a 22 KHz tone for the selection of the
converter's oscillator by this connector.
24
/ 22KHz
LNB
SAT-RF
7310
Product reference
Ch
It also has an RF input and output connector
so as to be able to mix the channels for their
subsequent amplification.
SAT-RF
(1)
-
Mass -1
-
Video output -2
-
"R" audio output -3
-
"L" audio output -4
-
-5
-
-6
-
-7
-
-8
