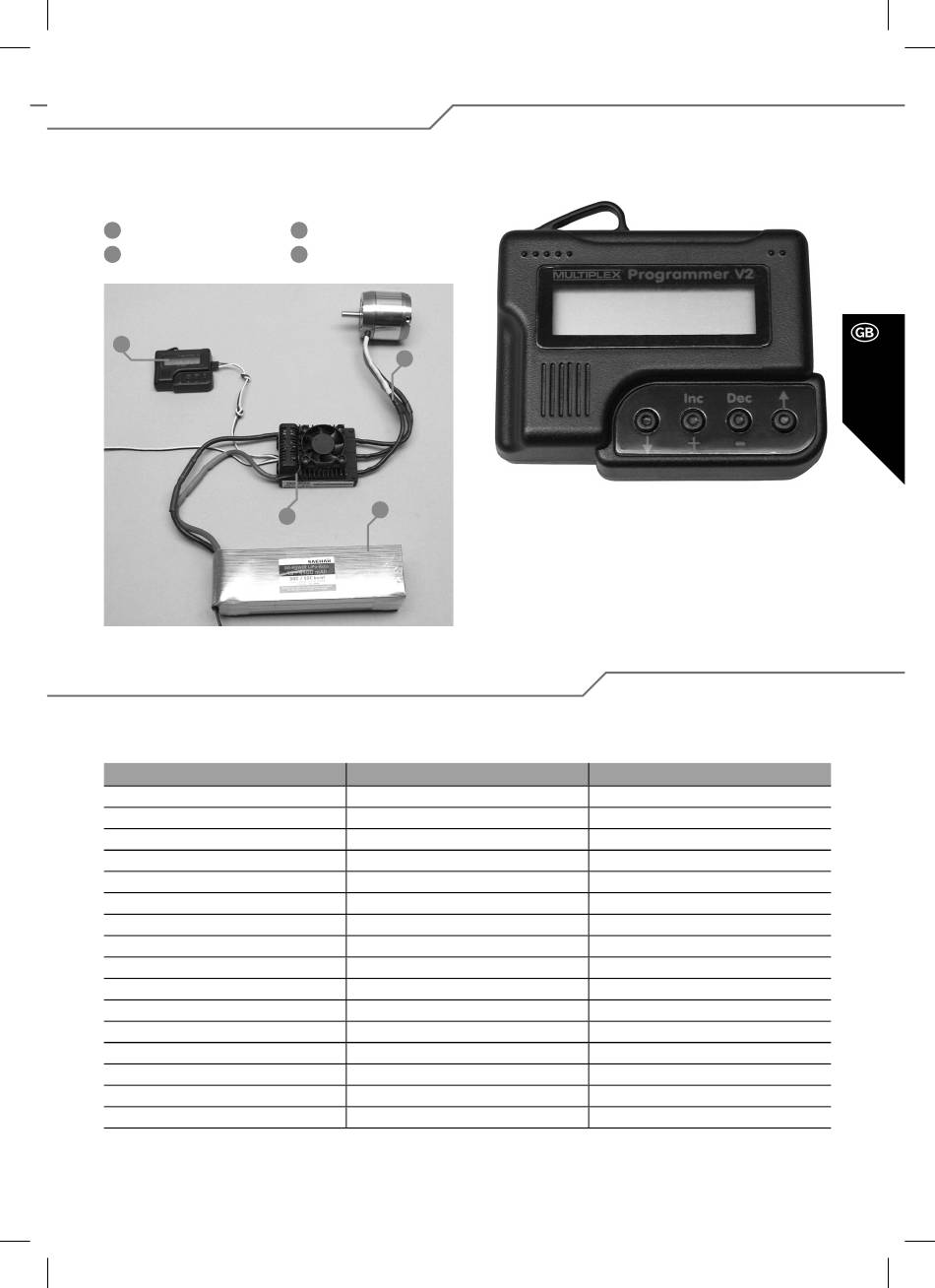

6. Settings with the programmer

Use the Multiplex Programmer No. 31 8642 will enable the easy and efi cient programming of the controller to suit the model
specii c requirements. This clear, user-friendly unit allows quick and secure programming to be made via the unit's LCD.
Programmer
1
Motor connection
2
1

6.1. Overview of programming facilities

With the exception of a few minor differences between the three modes, all program modes are similarly arranged in a menu
format; these are listed in the table below:
Helicopter
Select Battery
Cut Off Voltage
Cut Off Type
Motor Direction
Advance Timing
Acceleration
Start Power
Governor On/Off
Response of Governor
Motor pole Num
Gear Ratio
Max. RPM
Average RPM
Down Load
Restore Mem.
Backup Mem.
www.modellmarkt24.ch www.modellmarkt24.ch
Motor controller
3
Drive battery
4
2
4
3
Boat/Car
Select Battery
Cut Off Voltage
Cut Off Type
Motor Direction
Advance Timing
Acceleration
Start Power
Reverse Function
Motor pole Num
Gear Ratio
Max. RPM
Average RPM
Down Load
Restore Mem.
Backup Mem.
Navigating using the Programmer
The operation of the Programmer is extremely simple. Using
the outer arrow buttons cursor up or down to arrive at your
choice of programming mode. Furthermore, one can change
the model type when depressing both arrow buttons. The
middle buttons DEC (–) and INC (+) serves to choose and alter
the settings.
Aircraft
Select Battery
Cut Off Voltage
Cut Off Type
Motor Direction
Advance Timing
Acceleration
Start Power
Air Brake Type
Airbrake On/Off
Motor pole Num
Gear Ratio
Max. RPM
Average RPM
Down Load
Restore Mem.
Backup Mem.
