The casters MUST swivel and roll smoothly. A light grease
(waterproof auto lubricant) may be applied to the ball
bearing swivel of the casters once a year. Apply more
frequently if the casters are exposed to extreme moist con-
ditions.
Lubricate the Bearings in the Caster Swivels

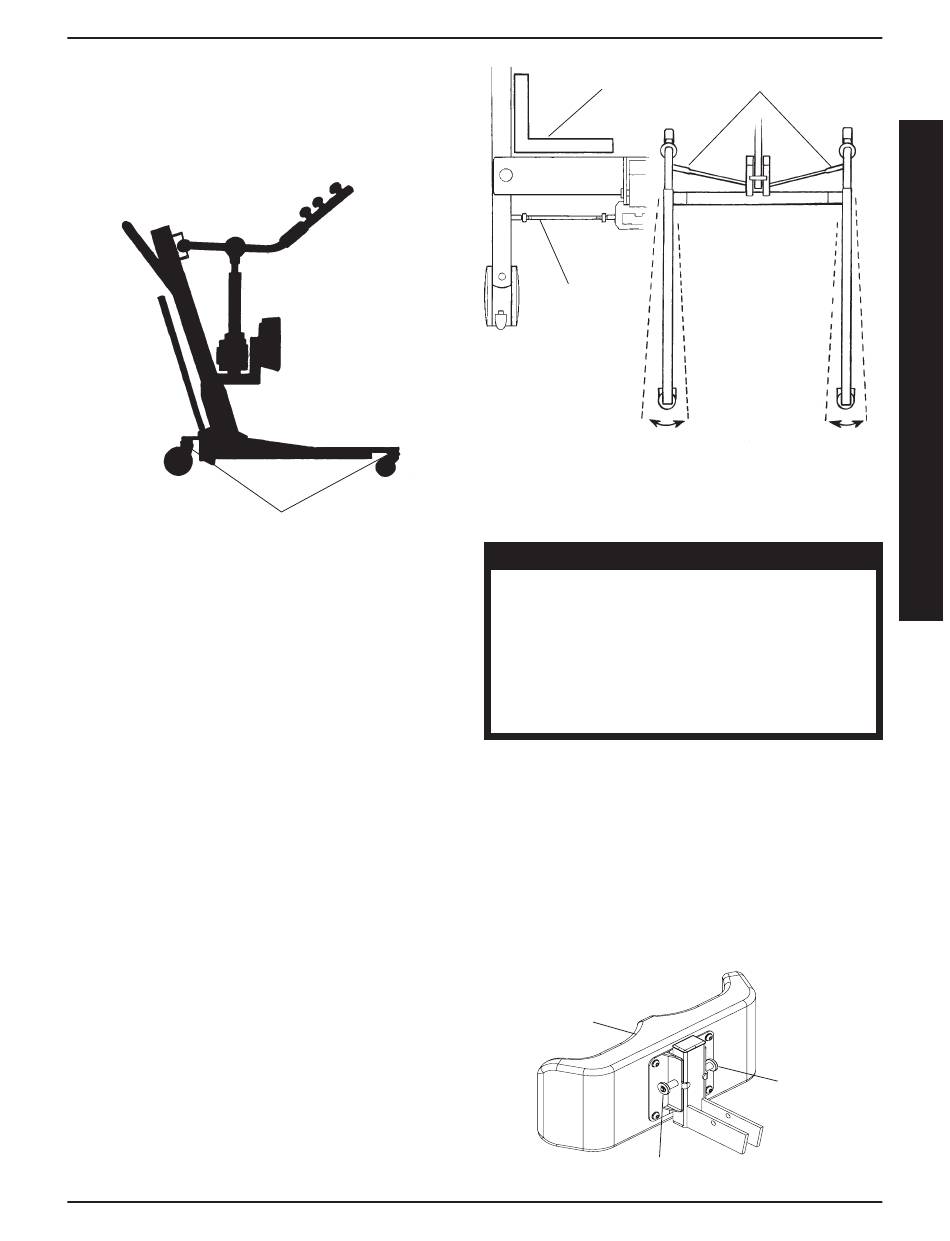

FIGURE 1 - LUBRICATION

WEAR AND DAMAGE

It is important to inspect all stressed parts, such as slings
and any attachment point for slings for signs of cracking,
fraying, deformation or deterioration. Replace any defective
parts immediately and ensure that the lift is not used until
repairs are made.

CLEANING

The sling should be washed regularly in water
o
temperature of 180 F (82
soft cloth, dampened with water and a small amount of
mild detergent, is all that is needed to clean the stand up
lift. The lift can be cleaned with non-abrasive cleaners.
ADJUSTING THE BASE (FIGURE 2)
NOTE: The base adjustment should not require any
attention other than:
1. Check the squareness of the legs when in the
CLOSED position.
2. Place a square on the inside of the legs and base to
o
determine the 90 alignment.
3. Adjust the linkage rods until 90
CARE AND MAINTENANCE OF YOUR STAND UP LIFT
o
C) and a biological solution. A
o
alignment is achieved.
Square
Linkage
Rod
FIGURE 2 - ADJUSTING THE BASE

ADJUSTING THE KNEE PAD HEIGHT

(FIGURE 3)
WARNING
NEVER adjust knee pad while patient is in
the standing position.
NEVER try to adjust knee pad while the lift
is moving.
ALWAYS make sure that the adjustment pins
are engaged in corresponding height ad-
justment holes before using.
1. Pick a height setting that will be comfortable to the
patient and provide the necessary support.
NOTE: The knee pad should be positioned so that the
knee portion of the leg is in contact with the pad.
2. Using both hands, pull both adjustment pins outward
at the same time.
3. Position the knee pad to the desired height and release
adjustment pins into the corresponding alignment holes.
4. Check to make sure that both pins are engaged.
Knee Pad
Adjustment Pin
FIGURE 3 - ADJUSTING THE KNEE PAD HEIGHT
