OPERATING THE STAND UP LIFT

Closing/Opening the Legs of the Base

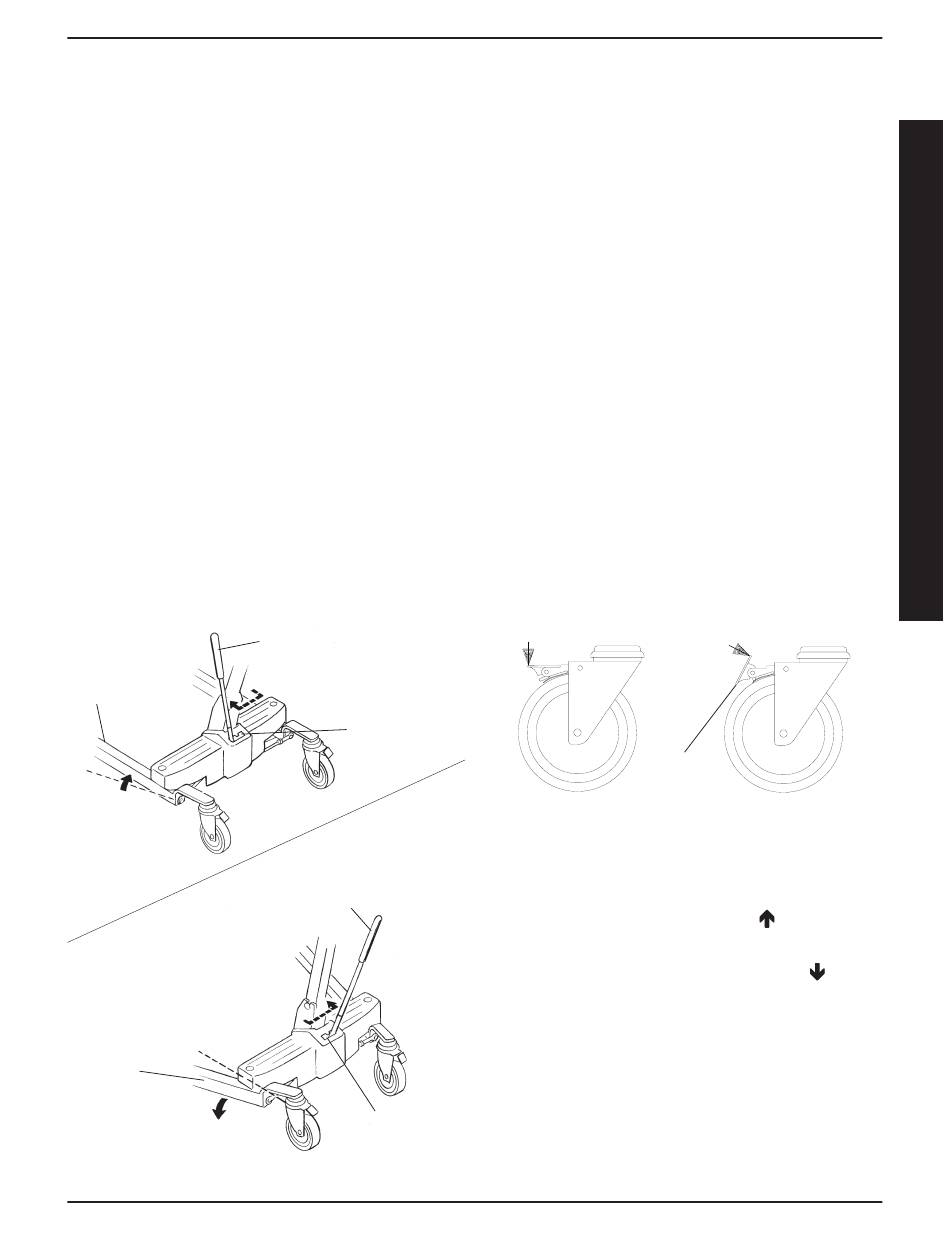

(FIGURE 1)
The shifter handle is used to open or close the legs of the
base for stability when lifting a patient.
1. Stand at the rear of the stand up lift and grasp the
shifter handle with one (1) hand and place the oppo-
site hand on the push handle of the mast for balance.
NOTE: The shifter handle MUST lock into its mounting
slot to lock the legs in the full open or closed position.
NOTE: The legs of the stand-up lift must be in the maxi-
mum open position and the shifter handle locked in
place for optimum stability and safety. If the patient is
in a sling and it becomes necessary to move though a
narrow passage, close the legs of the stand-up lift only
as long as it takes to move through the passage. Once
the stand-up lift is through the passage, return the legs
of the stand-up lift to the maximum open position and
lock the shifter handle immediately.
Legs of
Base
OPENING
Legs of
Base
FIGURE 1- CLOSING/OPENING THE LEGS OF
THE BASE

OPERATION

CLOSING
Shifter Handle in Locked
CLOSED Position
Mounting
Slot
Shifter Handle in Locked
OPENED Position
Mounting
Slot
CLOSING.
1. Pull the shifter handle OUT and away from the
stand up lift and then to your LEFT until it LOCKS in
the notch of the bracket.
NOTE: Left is determined by standing behind the stand
up lift facing towards the front casters.
OPENING.
1. Pull the shifter handle OUT and away from the
stand up lift and then to your RIGHT until it LOCKS in
the notch of the bracket.
NOTE: Right is determined by standing behind the
stand up lift facing towards the front casters.
Locking/Unlocking the Rear Swivel
Casters (FIGURE 2)
1. Perform one (1) of the following:
A. LOCKING - Press DOWN on the BOTTOM of
the locking lever.
B. UNLOCKING - Press DOWN on the TOP of the
locking lever.
STEP HERE TO LOCK
FIGURE 2 - LOCKING/UNLOCKING THE
REAR SWIVEL CASTERS

Raising/Lowering Stand Up Lift

(FIGURE 3)
RAISING THE LIFT. Press the UP ( ) button on the
hand control to raise the lift arms and the patient.
LOWERING THE LIFT. Press the DOWN ( ) button
on the hand control to lower the lift arms and the patient.
NOTE: If the Stand Up Lift is in the full UP position, it
may be necessary to pull down slightly on the lift arms
before the mast will lower.
EMERGENCY STOP. Press the RED button on the
control box IN to stop the lift arms and patient from raising
or lowering.
NOTE: Rotate RED emergency stop button CLOCK-
WISE until it pops out to disengage.
