Open
2.0

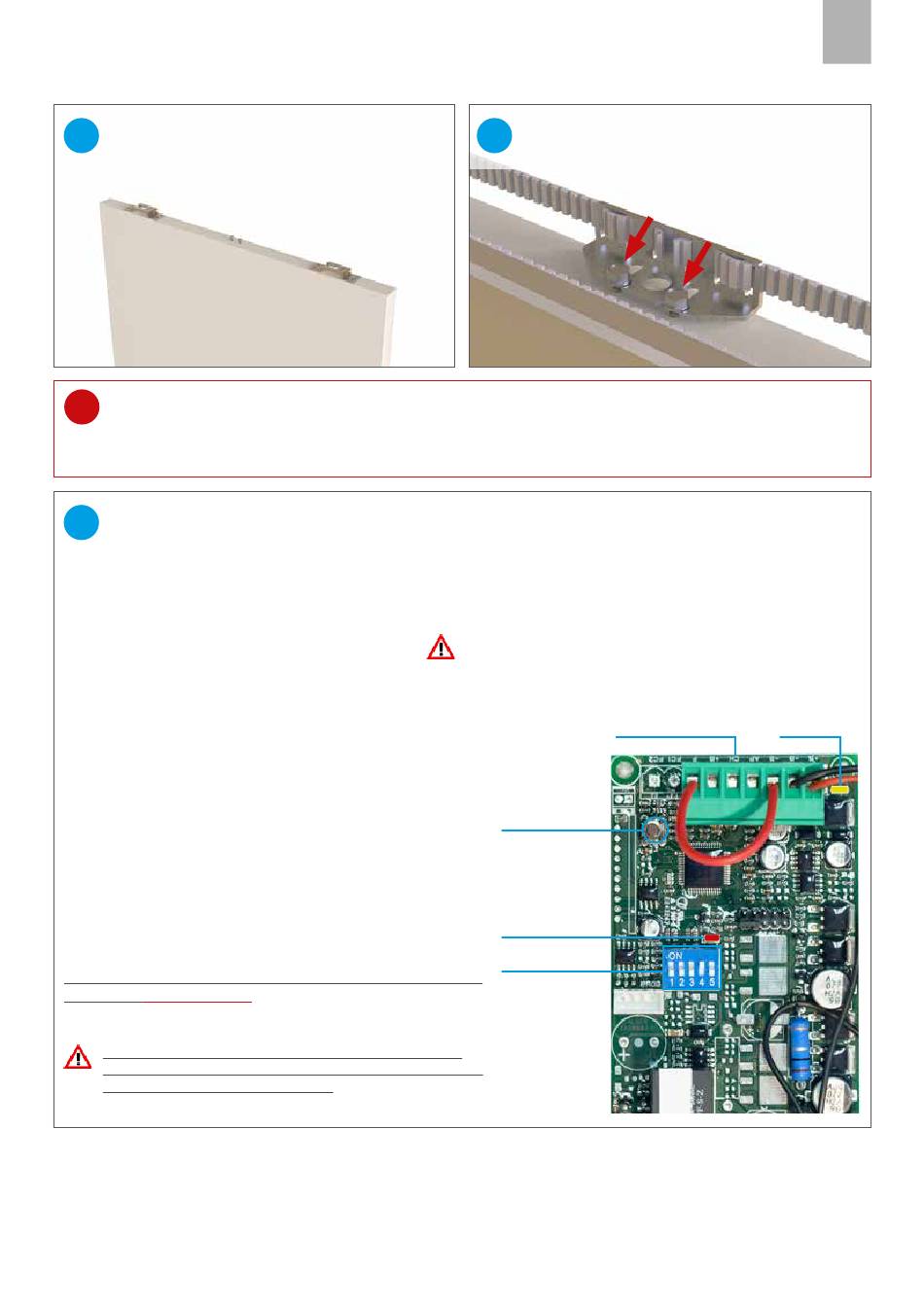

Fasten the hanger brackets, following the
33
instructions in the Scrigno door and frame
installation manual.
CHECK:
!
1. the correct alignment of the belt, which must move on a perfectly horizontal plane.
2. the absence of friction or obstacles during door movement, for the entire door travel distance.
The Antamatic OPEN 2.0 kit is now ready to be put into operation.

LIMIT-SWITCH

35
PREPARING FOR TRAVEL SELF-LEARNING
• Remove the turret-connector from the board.
• Make sure the door is not affected by friction, and position it about halfway along its travel.
•
Fit the turret-connector.
• Connect the power plug to the 220V mains supply.
The green LED on the board lights up.
SELF-LEARNING PROCEDURE
1. Press button P1 until the red LED starts flashing, release
the key. After 2 seconds from the start of flashing, the door
moves in the fully-open direction.
If the door should move in the closing direction:
the diagram in point 23 has not been followed correctly (the
belt jointing is on the wrong side!).
2. After 2 seconds from reaching opening, the door moves
towards the fully closed position.
3. The red led flashes for 2 seconds and the path acquisition
procedure is complete.
If the red LED continues to flash, the procedure has not been
successful. (See next page)
At the end of the self-learning procedure, disconnect
the mains power supply, carefully close the junction box
lid, and reconnect the power plug.
R1387 DCM2461/SCRIGNO - OPEN2.0
PROGRAMMING
| pagina 62
Connect the door to the hangers and fit the
34
junction bracket into the two previously mounted
screws. Fully tighten these.
Caution: live parts.
Turret-connector
PUSHBUTTON P1
Red led
Dip-switch
EN
Green led
