PRELIMINARY CHECKS

Make sure no kit components are missing.
All components (mechanical and electronic) must be placed in compartments that are accessible and can be
A
easily inspected, protected from humidity and atmospheric agents.
Make sure the length of the supplied cable (4.5 metres, including the part inside the metal profile) is
B
sufficient to cover the distance from the gearmotor to the control unit.
The cable must not be extended or spliced.
If the kit is also controlled with the push-button (or 2 push-buttons) on the wall,
C
must be dry contacts, NOT POWER CONTACTS.
The wall pushbuttons (and/or home automation) must give an impulse, NOT a continuous command, and
must function as INSTABLE pushbuttons: once released they must automatically return to their initial
position.
D
Make sure the door slides correctly in the rail and remove any lock-on or blocking limits switches, if fitted.
It is useful to prepare an ON-OFF switch (not supplied), connected to the board
E
disable the mechanism and automatic reclosing.
For door widths of less than 800mm, the rod must be shortened by carefully pulling the cable through it
F
and rerouting it after making sure there are no sharp edges.

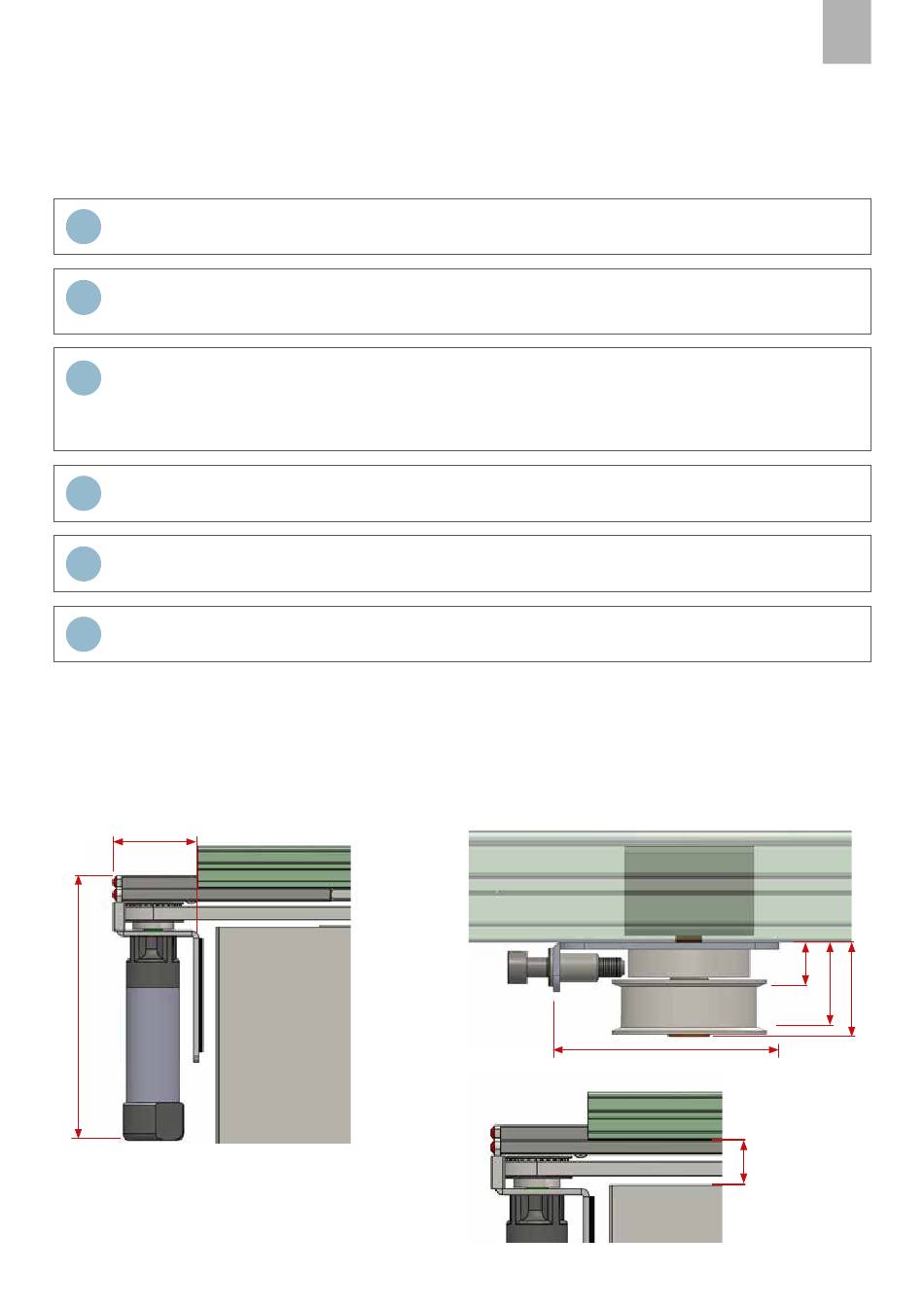

Kit dimensions
The system does not allow the total disappearance of the door in the frame.
Gearmotor with bracket for mounting on frame
65
210
R1387 DCM2461/SCRIGNO - OPEN2.0 | pagina 52
About 65mm will remain visible.
Driven pulley with belt tensioner
the open-close contacts
(see page 61 point 30), to
15
70
30mm
Correct distance
between door and
rail
EN
27 30
