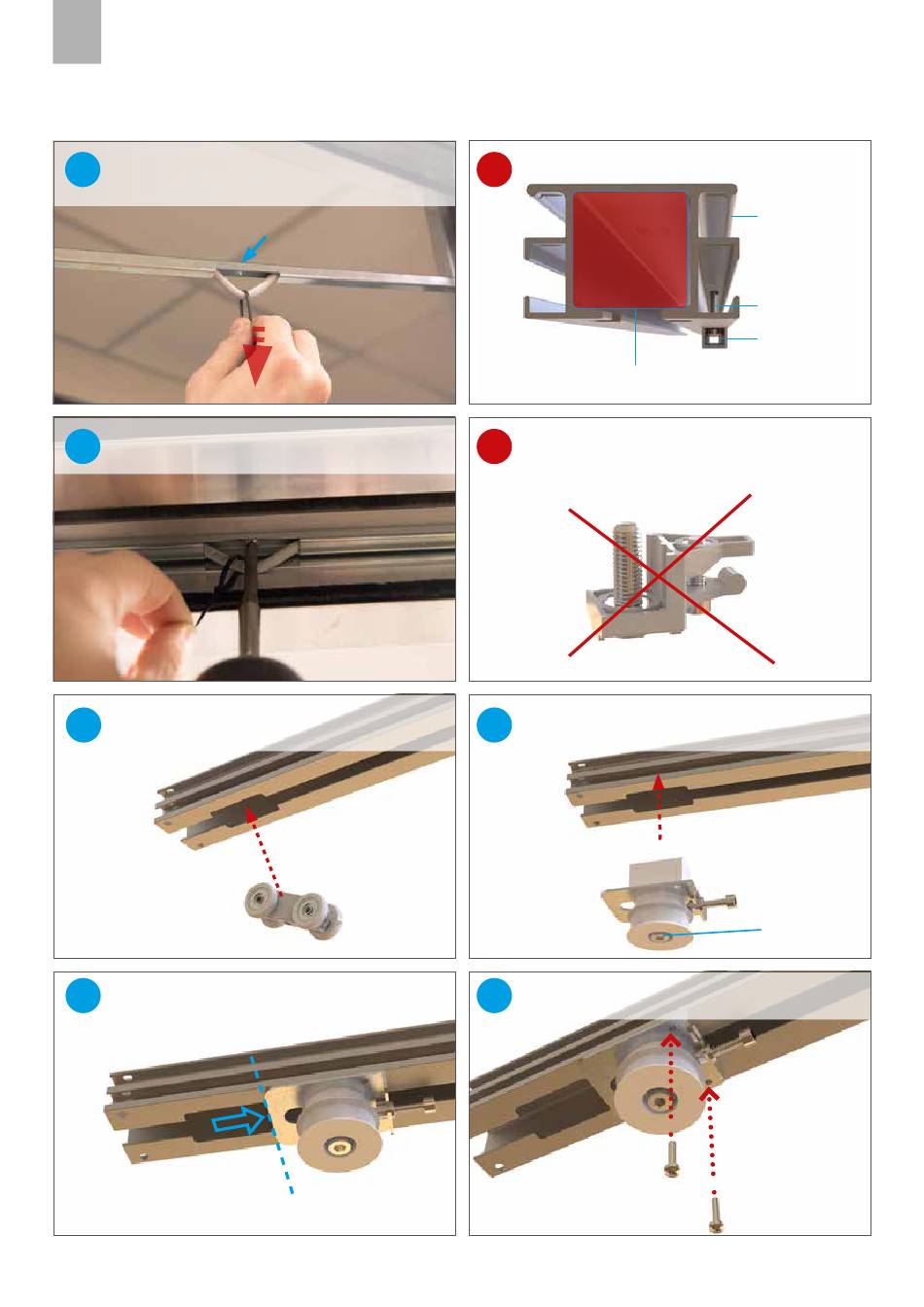

Fixing the rod to the rail: by slightly pulling out the
10
cable inside, the space is created to insert the screw
in the appropriate hole.
Make sure that the motor is positioned at the bottom
11
of the frame, and tighten the 3 self-tapping screws
on the rail.
12
Fit the 2 hangers on the rail.
14
Align the pulley bracket and the slot end.
!
Hanger transit area: caution! DO NOT DRILL HERE!
!
13
2x
15
IMPORTANT: Do not use the endstop!
Loosen bolt (A).
Fit the driven pulley in the rail.
Tighten the 2 self-tapping screws.
R1387 DCM2461/SCRIGNO - OPEN2.0
Open
2.0
Rail
Rod screw
Fastening rod
A
