4.3 Pre-set backrest

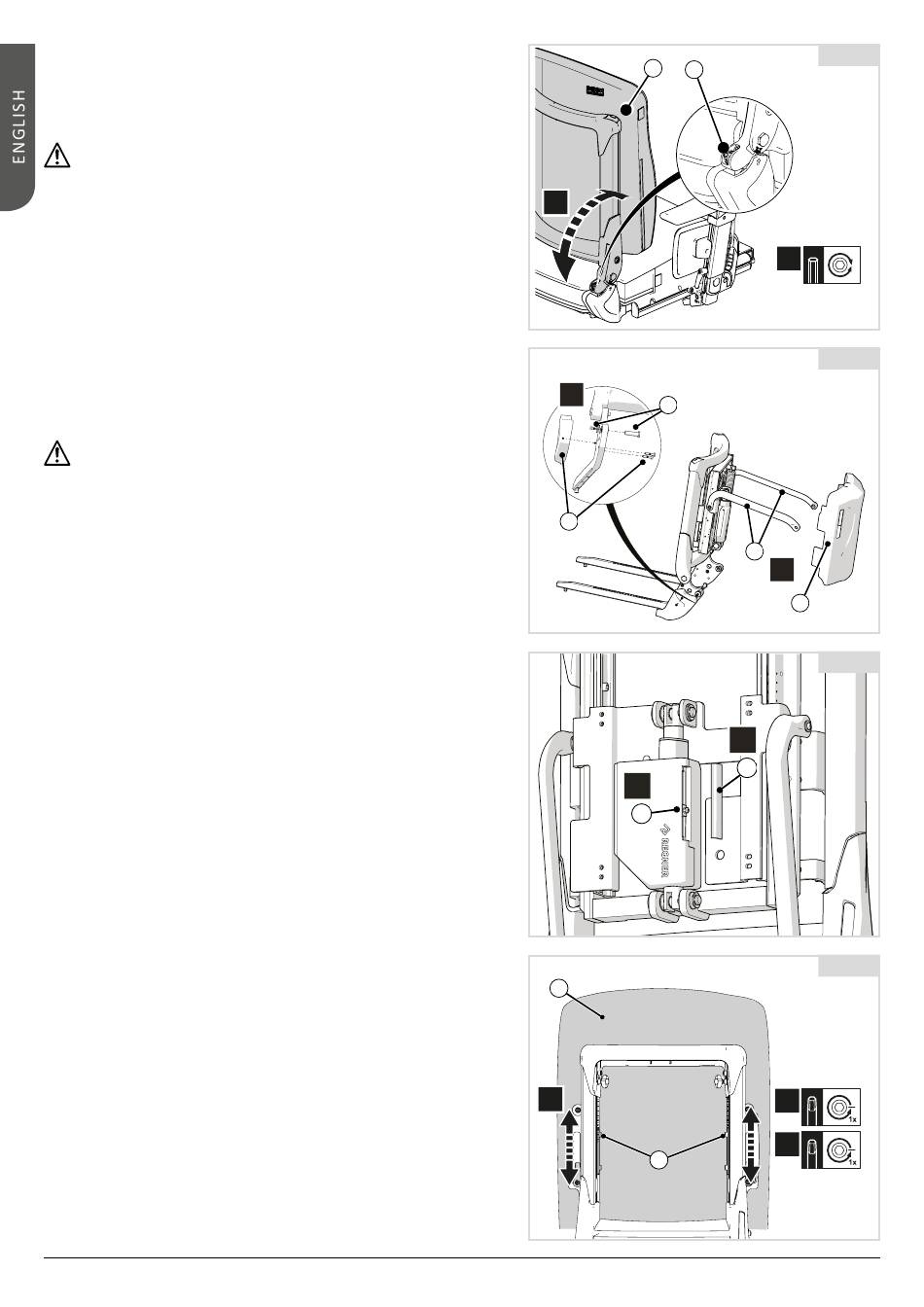

Backrest angle (Fig 4.8)
1. Turn (A) in order to adjust (B).
NOTE / CAUTION!
Do NOT use an electric tool for this adjustment.
Backrest angle home position of reclining back (Fig.4.9 - 4.10)
1. Remove bolts (A+B) and rotate (C).
2. Remove cover (D)
3. Remove 2 screws to remove actuator cover (E).
4. Loosen (F) by one turn.
5. Adjust to the desired position.
6. Tighten (F).
NOTE / CAUTION!
After removing bolt (B) the backrest must be held, otherwise it
would fall forwards or backwards.
Backrest height with fixed back (Fig 4.11)
1. Loosen (A) by one turn.
2. Adjust (B) to the desired position.
3. Tighten (A).
10
B
A
1
1
B
L+R
A
L+R
4
F
B
2
A
Fig. 4.8
1
M5
Fig. 4.9
C
2
D
Fig. 4.10
3
E
Fig. 4.11
M5
1
M5
3
Sedeo Pro Rev.C
