afx light SCAN1000FX5-RGB Manuel D'utilisation page 9

CH 13
ROLL SPEED
CH 14
Y AXIS MOVING
CH 15
MOVE SPEED
CH 16
X AXIS MOVING
CH 17
MOVE SPEED
CH18
Grating Rotation
CH19
Different effect

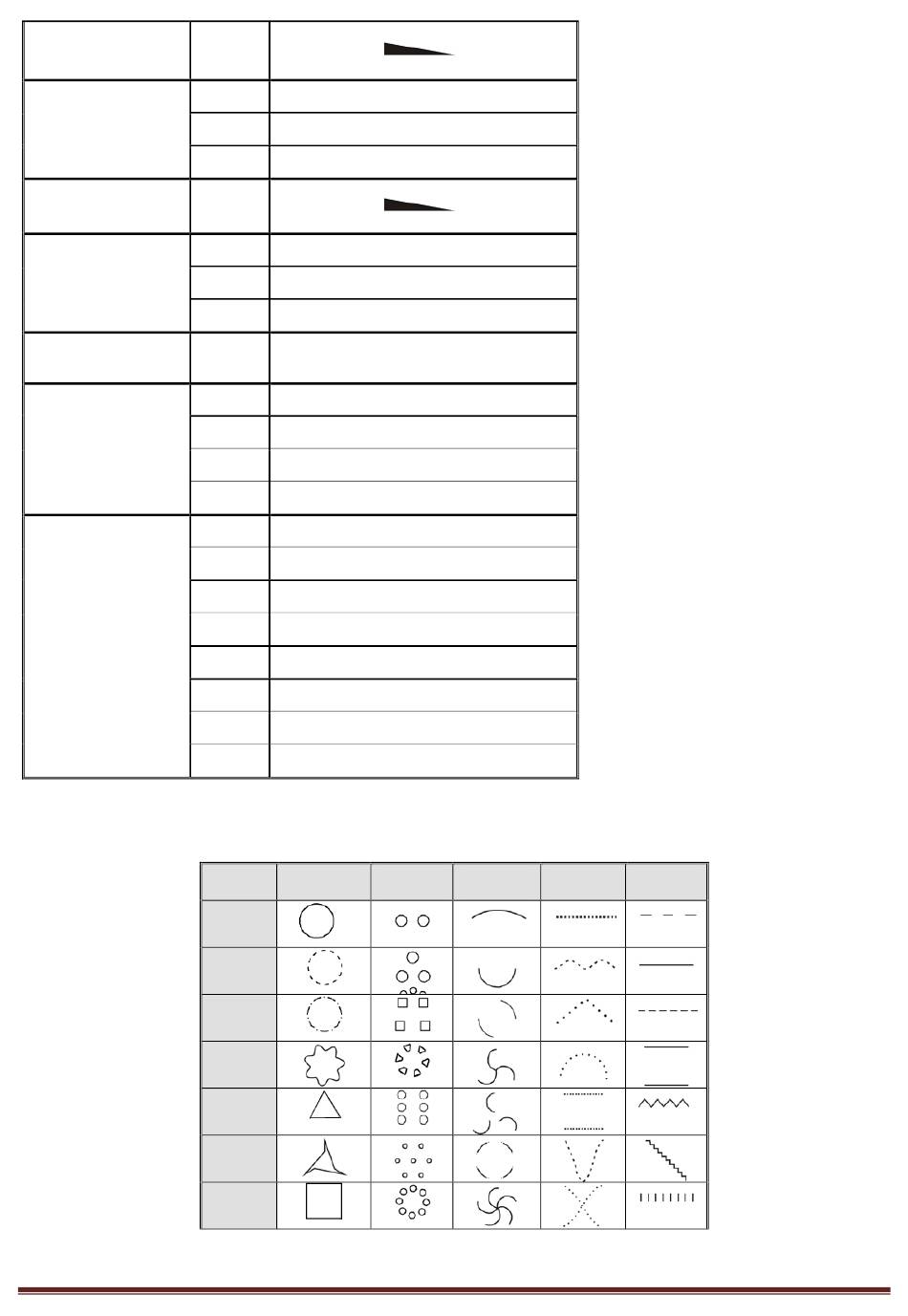

PATTERN LIST
©Copyright Lotronic 2017
0-255 Fast to Slow
000-127 128 different fixed position on X axis
128-191 Clockwise moving
192-255 Anticlockwise moving
0-255 Fast to Slow
000-127 128 different fixed position on Y axis
128-191 Clockwise moving
192-255 Anticlockwise moving
0-255 Fast to Slow
000-004 No grating rotating
005-127 Clockwise grating rotating
128-133 No grating rotating
134-255 Anticlockwise grating rotating
000-031 Laser 3D Effect
032-063 Scanned Beam Effect (Pattern Effect)
064-095 Laser Lumia Effect
096-127 Scanned Beam Effect (Pattern Effect)
128-159 Burst Grating Effect
160-191 Scanned Beam Effect (Pattern Effect)
192-223 Laser Universal Effect
224-255 Scanned Beam Effect (Pattern Effect)
DMX
1
000-015
016-031
032-047
048-063
064-079
080-095
096-111
2 3 4 5
9
