Replace Oven Racks and Storage
or Warming Drawer
Replace oven racks in oven cavity. Insert storage drawer or
warming drawer into slide rails on sides of drawer opening. Lift
front of drawer slightly and push firmly to close drawer.
Complete Installation
1. Refer to the "Make Gas Connection" section for properly
connecting the range to the gas supply.
2. Refer to the "Electronic Ignition System" section for proper
burner ignition, operation, and burner flame adjustments.
IMPORTANT: You may have to adjust the "LO" setting for
each cooktop burner.
Checking for proper cooktop, bake and broil burner flame is
very important. The small inner cone should have a very
distinct blue flame ¼" (0.64 cm) to ½" (1.3 cm) long. The outer
cone is not as distinct as the inner cone. LP gas flames have a
slightly yellow tip.
3. Refer to "Complete Installation" in the "Installation
Instructions" section of this manual to complete this
procedure.
Natural Gas Conversion
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
Failure to follow these instructions can result in death
or serious burns to children and adults.
14

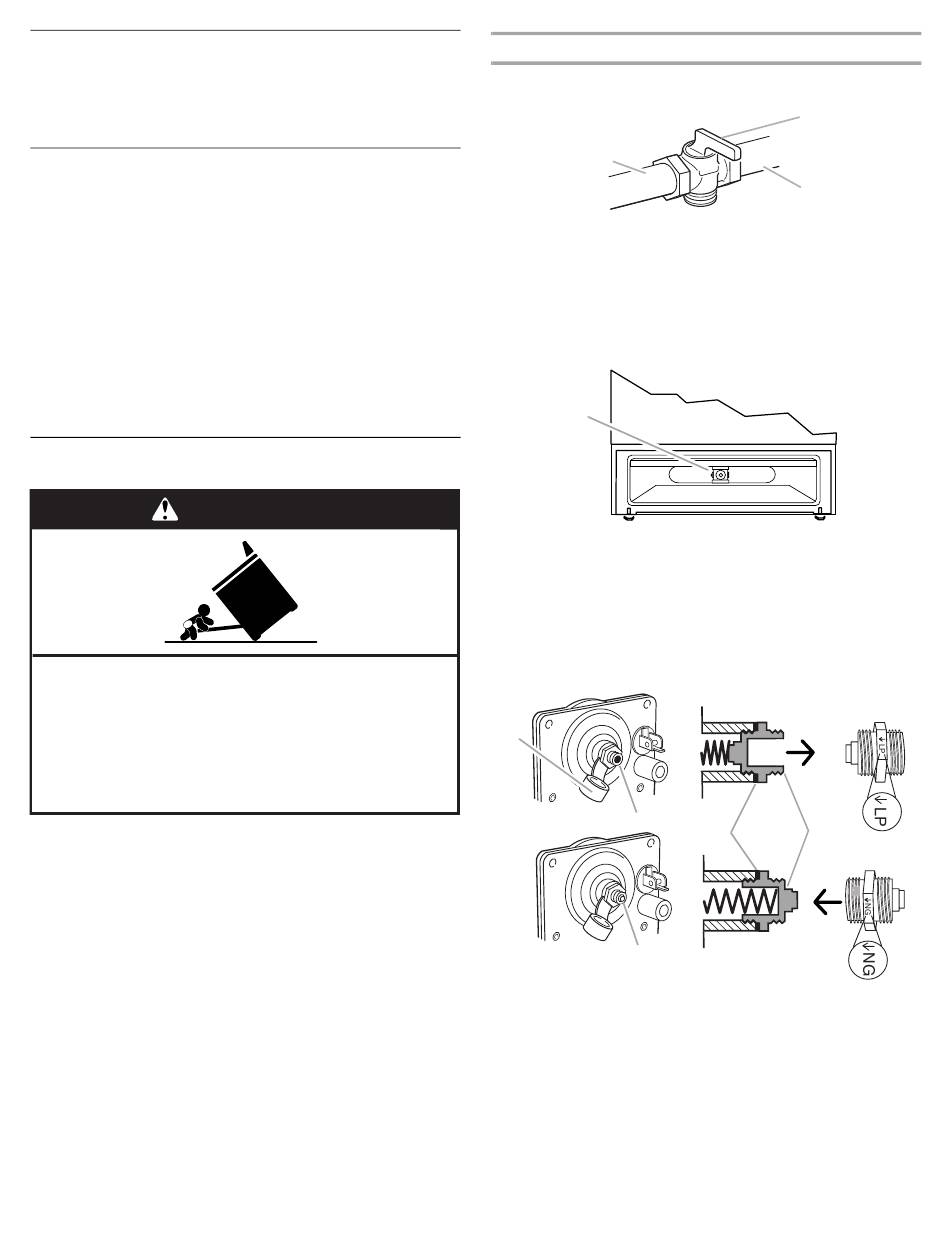

To Convert Gas Pressure Regulator
1. Ensure that the main shutoff valve is in the closed position and
the power supply cord is unplugged.
A
A. To range
B. Manual shutoff valve "closed" position
C. Gas supply line
2. Remove storage drawer or warming drawer. Locate gas
pressure regulator at rear of storage or warming drawer
compartment.
NOTE: On models with a warming drawer, an access cover
must be removed from the gas pressure regulator.
A
A. Gas pressure regulator
IMPORTANT: Do not remove the gas pressure regulator.
Gas pressure regulator
3. Remove plastic cover from gas pressure regulator cap.
4. Turn gas pressure regulator cap counterclockwise with a
⁵⁄₈" combination wrench to remove.
NOTE: Do not remove the spring beneath the cap.
A
B
C
A. Plastic cover
B. Gas pressure regulator cap with hollow end facing out
C. Gas pressure regulator cap with solid end facing out
D. Washer
E. Gas pressure regulator cap
5. Turn over the gas pressure regulator cap and reinstall on
regulator so that the solid end faces out and the marking
"<- N" is facing the direction shown in the above drawing.
6. Replace plastic cover over gas pressure regulator cap.
B
C
Side view before
D
E
Side view after
