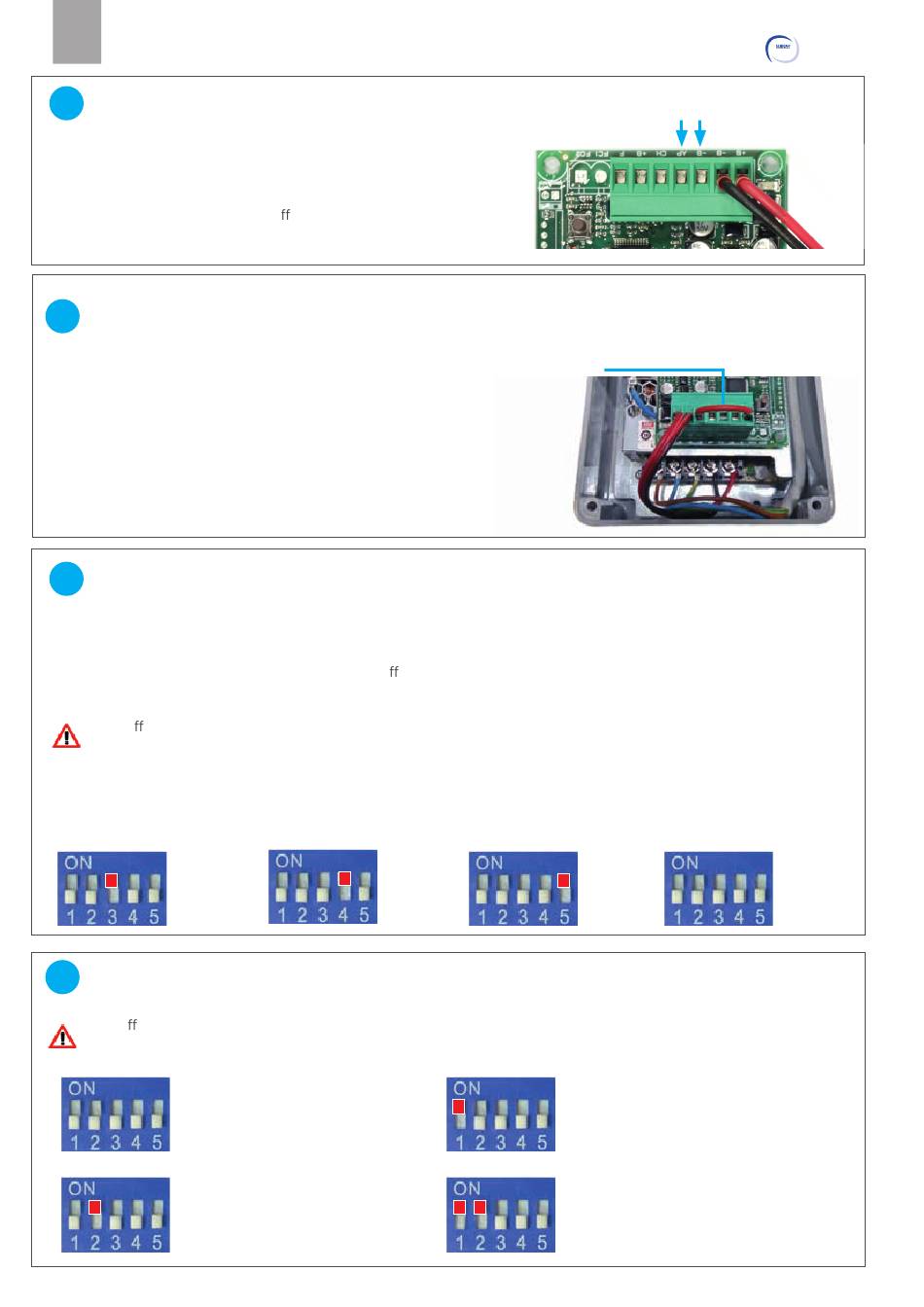

Scrigno Antamatic Open 2.0 Manuel D'installation page 61

EN
CONNECTION
29
Connect one or more radars or presence detectors (N.O.)
to the -B and AP inputs of the turret-connector. The
24V output of the power supply unit can be used if the
characteristics of the radar are compatible.
Caution: prepare a switch to cut o power to the radar,
and thus permit resetting any errors.
DOOR LOCK
30
Remove the jumper from the turret-connector.
Connect an ON-OFF (N.C.) switch to the photocell
input, between -B and F, which serves to disable door
movement, and timed reclosing.
A safety photocell (N.C.) can be connected to the same
inputs. When the photocell is engaged (contact open), the
door movement stops.
ADJUSTMENT OF THE
31
The electronic board which controls the movement of the motor must be correctly calibrated to allow safe operation of
the system. The software manages in particular the acceleration and braking ramps, and the distance at which the door
must start to slow down, in order to approach the uprights gently.
4 parameter PRESETs are available, referring to di erent weights of the operated door.
IMPORTANT! If the door stops and reverses its movement during opening or closing, try the next preset
Turn o the board, adjust the dip-switches and wait 5 seconds.
Turn the board on again.
DIP SWITCH 3= ON
Preset 1:
Doors weighting
approx. 20 kg
AUTOMATIC RECLOSING
32
Turn o the board, adjust the dip-switches and wait 5 seconds.
Turn the board on again.
DIP SWITCH 1 and 2= OFF:
Automatic reclosing disabled (see
also point 32, door lock switch)
DIP SWITCH 1=OFF, 2=ON:
The door closes automatically after
5" of inactivity
RADAR
(optional)
ISWITCH and
DOOR PRESET/WEIGHT
DIP SWITCH 4= ON
Preset 2:
Doors weighting
approx. 40 kg
ADJUSTMENT
PHOTOCELL
Jumper
DIP SWITCH 5= ON
Preset 3:
Doors weighting
approx. 60 kg
DIP SWITCH 1=ON, 2=OFF
The door closes automatically after
2" of inactivity
DIP SWITCH 1=ON, 2=ON:
The door closes automatically after
10" of inactivity
Open
radar contact
INPUT (N.C.)
DIP SWITCH 3-4-5= OFF
Preset 4:
doors weighing up to
80 kg
R1387 DCM2461/SCRIGNO
2.0
| page 13
