ACCESSORIES

• Self-Tapping Screw (M4 × 14) ......................................4
und to
• Mounting Bracket and Screws ......................... 4 SETS
ing
• Logo Plate* .........................................................................1
s in
• Hexagon Wrench (Large/Small) ..........................1 SET
pment
  The Logo Plate is temporarily affixed to the top cover.
y, and it
ordance

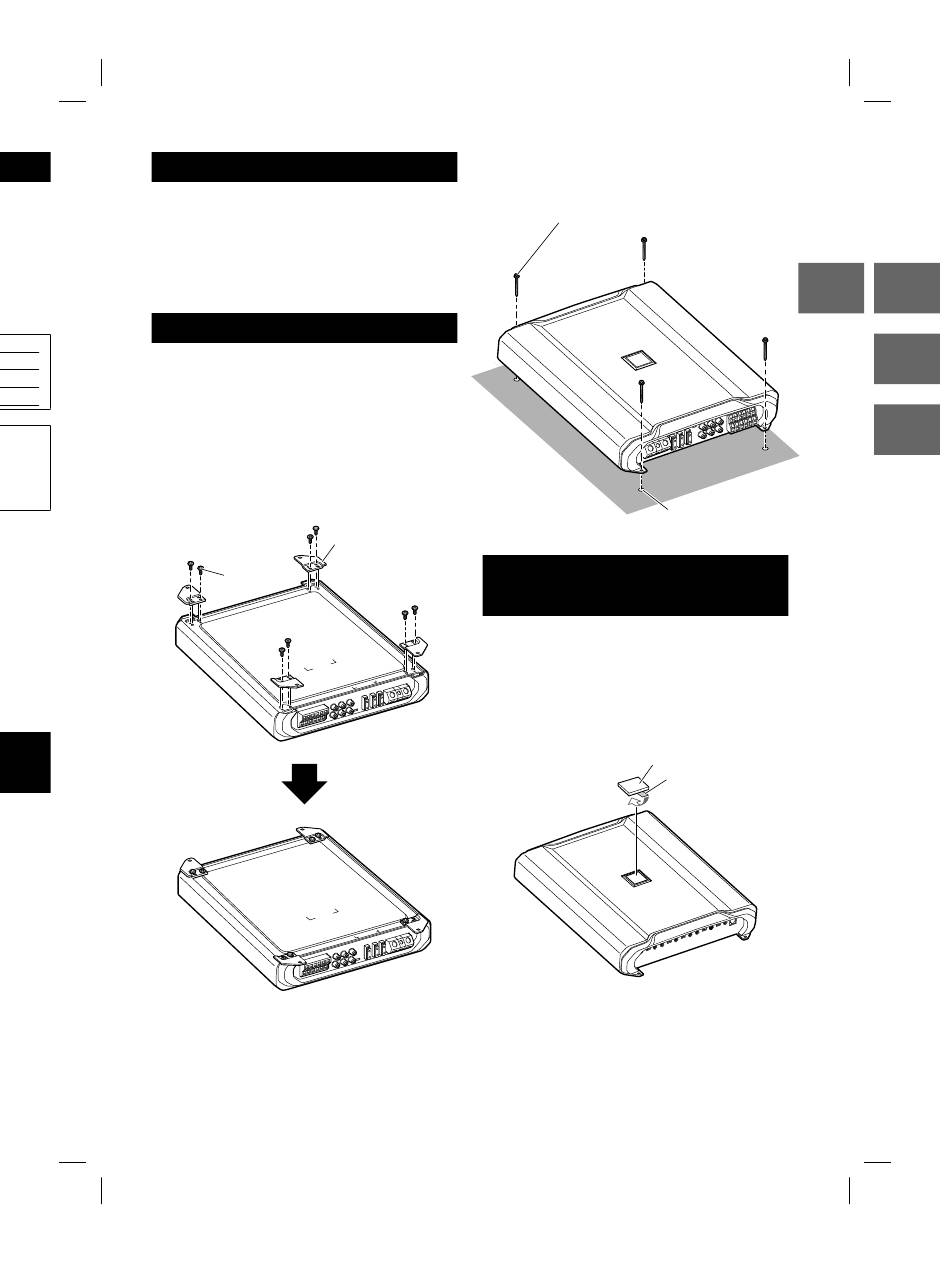

INSTALLATION

Due to the high power output of the R-A90S
considerable heat is produced when the amplifier
is in operation. For this reason, the amplifier should
be mounted in a location which will allow for free
circulation of air, such as inside the trunk. For
alternate installation locations, please contact your
nit in
authorized Alpine dealer.
e is
1. Attach the Mounting Brackets to the bottom of
the amplifier with eight screws.
anty,
which
d States
r dealer
ge.
ON
t circuit
stops
and
hts up in
ator"
2. Using the amplifier as a template, mark the four
screw locations.
3. Make sure there are no objects behind the
surface that may become damaged during
drilling.
4. Drill the screw holes.
Mounting Bracket
(included)
Screws (× 8)
(included)
5. Position the R-A90S over the screw holes, and
secure with four self-tapping screws.
Self-Tapping Screws
M4 × 14 mm (× 4) (included)
ATTACHING THE LOGO
PLATE
The Logo Plate is temporarily affixed to the top
cover.
1. Peel the Logo Plate along with the backing
sheet from the top cover.
2. Peel the backing sheet from the Logo Plate, then
attach it to this unit in your desired direction.
Logo Plate
ALPINE R-A90S 68-35792Z94-A (EN/FR/ES)
Holes (× 4)
Backing Sheet
3
