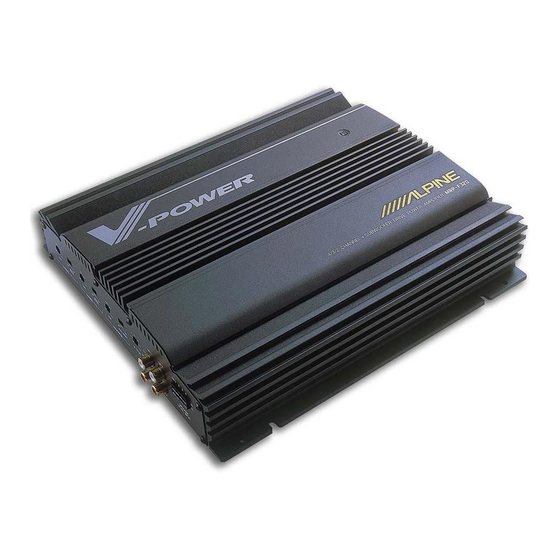

MRP-F320
DC-DC 4/3/2 Channel
+ Subwoofer Drive Power Amplifier
MRP-F200
DC-DC 4/3/2 Channel Power Amplifier
MRP-T130
DC-DC 2/1 Channel Power Amplifier
• OWNER'S MANUAL
Please read this manual to maximize your
enjoyment of the outstanding performance and
feature capabilities of the equipment, then
retain the manual for future reference.
• MODE D'EMPLOI
Veuillez lire ce mode d'emploi pour tirer
pleinement profit des excellentes performances
et fonctions de cet appareil, et conservez-le pour
toute référence future.
• MANUAL DE OPERACION
Lea este manual, por favor, para disfrutar al
máximo de las excepcionales prestaciones y
posibilidades funcionales que ofrece el equipo,
luego guarde el manual para usarlo como
referencia en el futuro.
R
Publicité
Manuels Connexes pour Alpine MRP-F320
Sommaire des Matières pour Alpine MRP-F320
- Page 1 MRP-F320 DC-DC 4/3/2 Channel + Subwoofer Drive Power Amplifier MRP-F200 DC-DC 4/3/2 Channel Power Amplifier MRP-T130 DC-DC 2/1 Channel Power Amplifier • OWNER'S MANUAL Please read this manual to maximize your enjoyment of the outstanding performance and feature capabilities of the equipment, then retain the manual for future reference.
- Page 2 When connecting the MRP-F320/MRP-F200/MRP-T130 to the fuse box, make sure the fuse for the intended circuit of the MRP-F320/MRP-F200/MRP-T130 has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle. When in doubt, consult your ALPINE dealer.
- Page 3 (CH 3/4) Dimensions (W x H x D) MRP-F320 ................230mm x 58mm x 275mm (9" x 2-1/4" x 10-13/16") MRP-F200 ..................230mm x 58mm x 230mm (9" x 2-1/4" x 9") MRP-T130 ................. 230mm x 58mm x 170mm (9" x 2-1/4" x 6-3/4") Weight MRP-F320 ..........................
- Page 4 Tel.: 1-800-ALPINE-1 (1-800-257-4631) Alpine Electronics of Canada, Inc. Suite 203, 7300 Warden Ave. Markham, Ontario L3R 9Z6, Canada Tel.: 1-800-ALPINE-1 (1-800-257-4631) Alpine Electronics of Australia Pty. Ltd. 6-8 Fiveways Boulevarde Keysborough, Victoria 3173, Australia Tel.: (03) 9769-0000 Alpine Electronics GmbH...
- Page 5 INSTALLATION (Fig. 1) Due to the high power output of the MRP-F320/MRP- NOTE: F200/MRP-T130, considerable heat is produced when To securely connect the ground lead, use an already the amplifier is in operation. For this reason, the installed screw on the metal part of the vehicle (marked amplifier should be mounted in a location which will ( )).
- Page 6 Do not use the speaker (–) terminals as output leads of your head unit. The MRP-F320/ a common lead between the left and right MRP-F200/MRP-T130 accepts input from high channels.
- Page 7 TYPICAL SYSTEM CONNECTIONS/CONNEXIONS TYPIQUES DU SYSTÈME/CONEXIONES TIPICAS DEL SISTEMA MRP-F320 [English] Bridge Connections/Connexions pontées/Conexiones derivadas Speaker Input Lead System/Système du conducteur d'entrée du haut-parleur/Sistema del conductor de entrada del altavoz RCA Extension Cable (Sold Separately) MRP-F320 MRP-F200 (Front side/ (Front side/...
