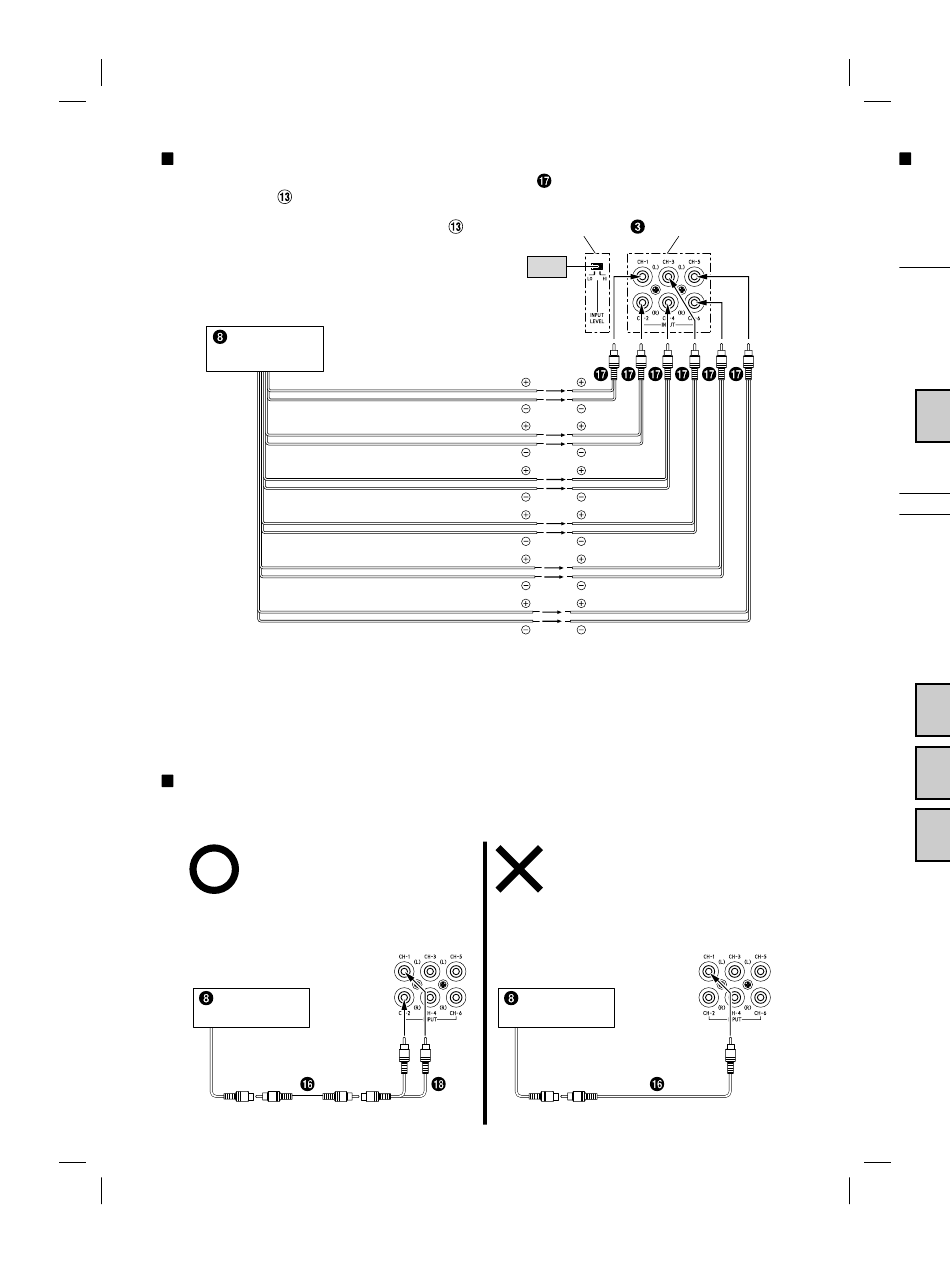

About Connecting to the Speaker Input Level System
When connecting by using the Speaker-RCA Conversion Cable ( ) (sold separately), switch the Speaker
Input Level Switch ( ) to "HI".
Head Unit, etc.
Front Speaker output lead (L)
Front Speaker output lead (R)
Rear Speaker output lead (R)
Rear Speaker output lead (L)
Subwoofer output lead (R)
Subwoofer output lead (L)
• Do not mistake the Speaker Output Lead on the head unit side connected to this unit.
Front Speaker output (L)/(R) to CH1/CH2, Rear Speaker output (L)/(R) to CH3/CH4, Subwoofer output (L)/
(R) to CH5/CH6
• For the "Speaker Input Level System" setting, connecting the Remote Turn-On Lead is not required due to
the "REMOTE SENSING" function of this product. However, the "REMOTE SENSING" function may not work
depending on the signal source connected. In such a case, connect the Remote Turn-On Lead to an
incoming power supply cord (accessory power) in the ACC position.
Important Tips on Bridging an Amplifier
Low output will result if only one channel input is used. The Y-adapter is not required if a stereo/mono pair
line output is used to drive both inputs of the bridged amp.
Proper connection
Head Unit, etc.
One signal
18
-EN
ALPINE R-A90S 68-35792Z94-A (EN/FR/ES)
Speaker Input Level Switch
[HI]
Improper connection
Head Unit, etc.
One signal
RCA Input Jacks
