e) Connecting the drive battery to the speed controller
Place the vehicle on a suitable support (or a start box) so that the wheels can move freely. This ensures
that you will not lose control of the vehicle if the wheels move suddenly (e.g. if the throttle trim is not set
correctly).
Do not reach into the motor or hold the wheels in place.

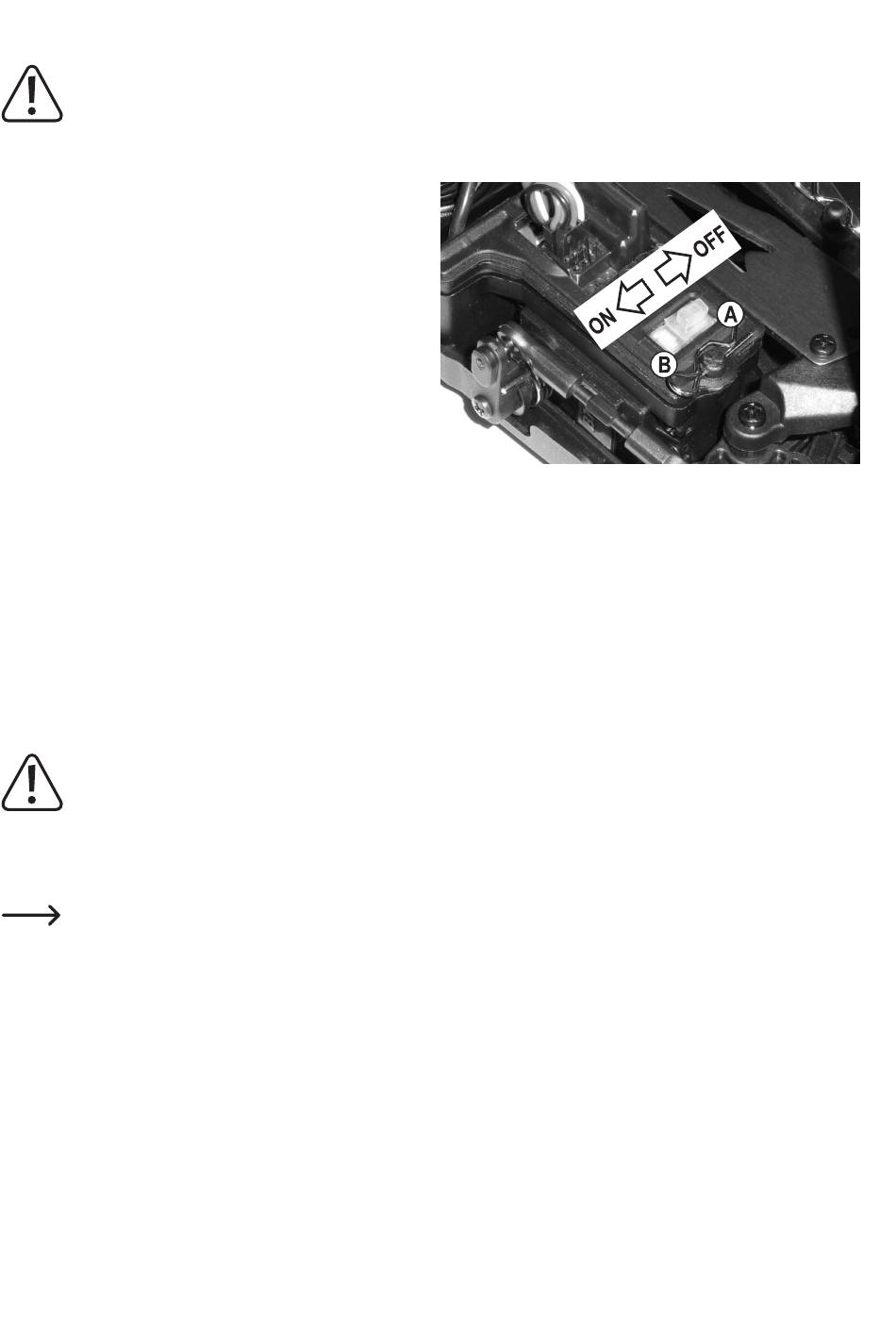

Switch off the speed controller (move the switch to the
"OFF" position). The setup button (B) is located next to the
on/off switch (A). This button can be used to program the
speed controller (see section 10).
Switch on the remote control (see sections 9. b) and 9. c).
Connect the vehicle battery to the speed controller. En-
sure that the battery is inserted in the correct polarity (red
cable = positive/+, black cable = negative/-).
Do not use any force when connecting the battery to the
speed controller. Ensure that cable cannot get caught in
the motor/steering mechanism. If necessary, use cable
ties to fix the cable in place.
f) Switching on the speed controller
Switch on the speed controller (move the switch to the "ON" position, see image in section 9. e). Wait for a few
seconds (leave the throttle/brake lever in the neutral position). The speed controller will measure the battery voltage,
which is indicated by the number of beeps.
• 2 beeps: 2-cell LiPo battery or 6-cell NiMH battery
• 3 beeps: 3-cell LiPo battery

Important!

The undervoltage detection feature works by detecting the battery voltage when the speed controller is
switched on. (The undervoltage detection feature switches off the motor when the LiPo battery is empty to
prevent the battery from overdischarging).
For this reason, ensure that you connect a fully charged battery to the speed controller.
For safety reasons, if the throttle/brake lever (or the throttle trim) is not in the neutral position when the
speed controller is switched on, the LED on the speed controller will flash rapidly in red and the motor will
not switch on. Release the throttle/brake lever on the remote control and check the trim setting for the
throttle. If necessary, adjust the trim setting accordingly (see section 10. a).
Check that the throttle and steering functions are working correctly.
